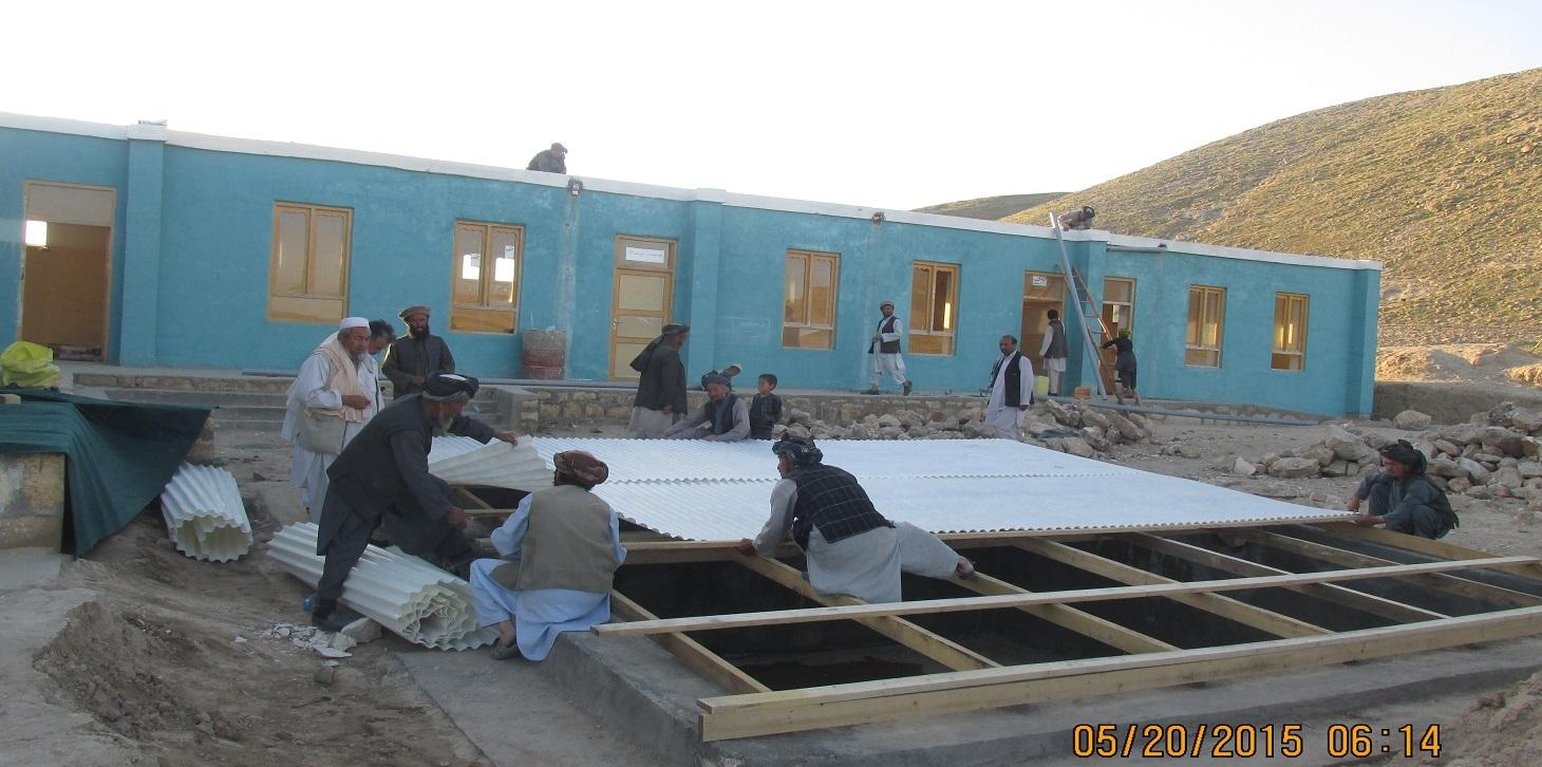

An overview of the roof rain water harvesting at Alika elementary school, Kishendeh district (Pipe scheme, reservoir and the roof) (Saboor Popal (People In Need))

Roof rain water harvesting (Afghanistan)

Jam aware ab-e-baran az bam

Description

Stone masonry reservoir linked with roof rain water through a pipe scheme to provide safe drinking/low cost water supply in the remote areas.

Kishendeh district is extremely mountainous with low precipitation and with a shortage of water storage facilities. Underground reservoirs, called kandas, traditionally serve as water storage, catching rain water over the two/three wet months of the year for use throughout the rest of the year. The kandas tend to run out of water before the next rains come, and tend to be positioned very far away from villages in difficult to reach spots. Alika village, where this technology is implemented, suffers from the scarcity and unavailability of irrigation, livestock and even safe drinking water. Scarcity of water during the summer season makes the lives of the community members more difficult and results in their immigration from the village in the past.

Purpose of the Technology: To ease water shortage in the target community, in addition to the introduction of drought-resistant crops and soil and water conservation techniques, People in Need (PIN) has applied roof rain water harvesting technology in Alika elementary school, Alika village, Chakana cluster. The site where this technology has been applied belongs to the state. The water use right is common and poor families that do not have access to kandas are given priority for using this reservoir. The school and households near the school use this water for drinking and washing.

Establishment / maintenance activities and inputs: The project started in October, 2014 and was completed in April, 2015. For the establishment of the roof rain water harvesting technology the following inputs were used:

360 square meter tin was used to cover the roof. The pipe system is 45 meters in total. Three inch PVC pipes as well as elbows and T-joints were used. The water reservoir’s dimension of 0.80x0.50 m stone masonry foundation and 0.60x1.50x24.4 m wall; The dry stone masonry is 30cm wide; the surface of the reservoir, reinforced concrete (RCC) is 15cm wide. The reservoir was plastered with water proofing. The roof of the reservoir was constructed using wooden sketch covered with hard plastic material.

141 person/day were required for accomplishing this project. The establishment cost was 5,296$. The total value of community contribution is 7,500 Afghani/145 US$. Excavation by community members of a 50 m3 area is valued at 20,000 Afghani/385 US$. Thus the total community contribution is 10% of the total costs.

The head master of the school assumes the responsibility for maintenance. The reservoir needs to be cleaned five times a year, this is a low cost exercise. In the rainfall season it needs to be done once a month. Cleaning can be done by one person. The estimated cost for the maintenance is 500 Afghani or 10 US$ and is fully contributed by the community members.

Natural / human environment: Balkh province has a semi-arid climate and receives about 280 mm rainfall per year. The main economic activities are agriculture and livestock. The community members of the Kishendeh district have a low access to health services, employment, roads and transport and to drinking water and sanitation. Lack and scarcity of water in this village has caused many internal displacements as well.

Location

Location: Kishendeh, Balkh, Afghanistan

No. of Technology sites analysed:

Geo-reference of selected sites
  • 66.92788, 35.95647

Spread of the Technology: evenly spread over an area (0.00105 km²)

In a permanently protected area?:

Date of implementation: less than 10 years ago (recently)

Type of introduction

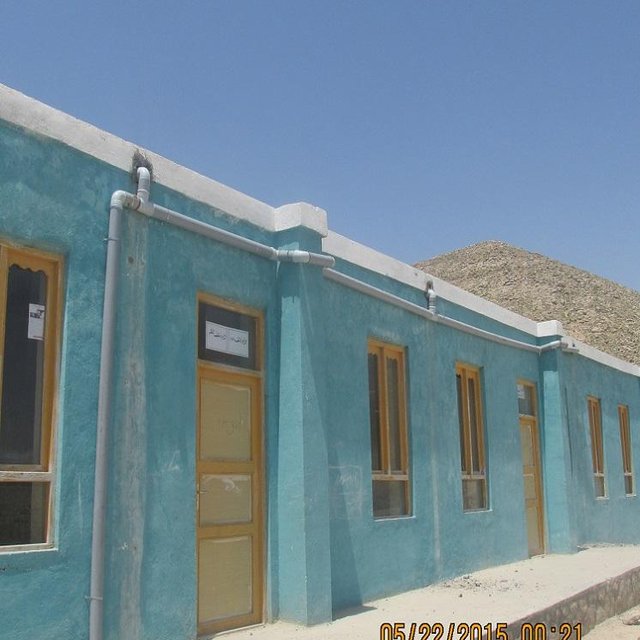

An overview of the pipe scheme of the roof rain water harvesting, Alika elementary school, Kishendeh (Saboor Popal (People In Need))

Classification of the Technology

Main purpose
  • improve production
  • reduce, prevent, restore land degradation
  • conserve ecosystem
  • protect a watershed/ downstream areas – in combination with other Technologies
  • preserve/ improve biodiversity
  • reduce risk of disasters
  • adapt to climate change/ extremes and its impacts
  • mitigate climate change and its impacts
  • create beneficial economic impact
  • create beneficial social impact
  • access to water
Land use
Land use mixed within the same land unit: Nee

  • Settlements, infrastructure - Settlements, buildings
Water supply
  • rainfed
  • mixed rainfed-irrigated
  • full irrigation

Purpose related to land degradation
  • prevent land degradation
  • reduce land degradation
  • restore/ rehabilitate severely degraded land
  • adapt to land degradation
  • not applicable
Degradation addressed
  • soil erosion by water - Wt: loss of topsoil/ surface erosion
  • water degradation - Hg: change in groundwater/aquifer level
SLM group
  • water harvesting
SLM measures
  • structural measures - S5: Dams, pans, ponds

Technical drawing

Technical specifications

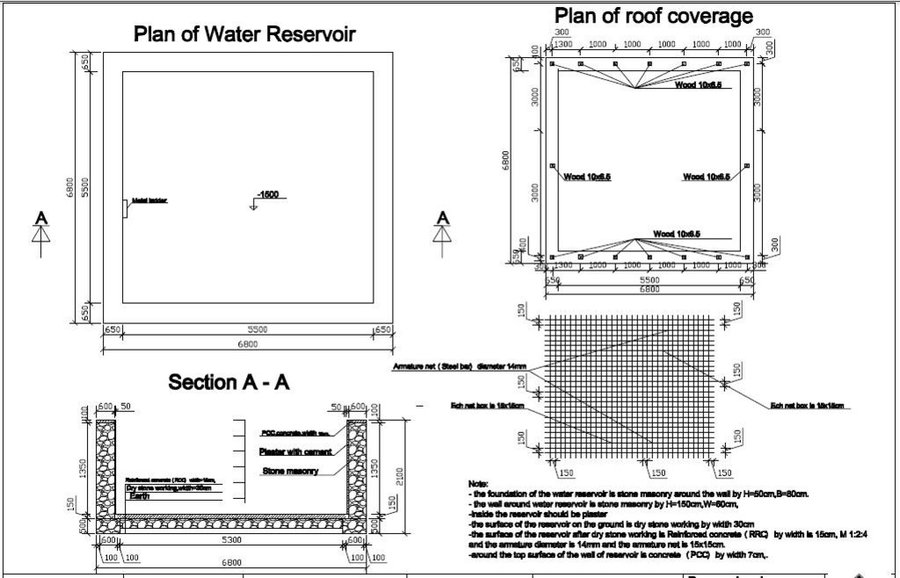

Detailed technical drawing of the water reservoir constructed for roof rain water harvesting in Alika village, Kishendeh district.

Location: Alika village. Kishendeh district, Balkh province

Technical knowledge required for field staff / advisors: high

Technical knowledge required for land users: moderate

Main technical functions: water harvesting / increase water supply

Secondary technical functions: water spreading, improvement of water quality, buffering / filtering water

Structural measure: Water reservoir
Author: Eng. Saboor Popal, People In Need (PIN)

Establishment and maintenance: activities, inputs and costs

Calculation of inputs and costs
  • Costs are calculated:
  • Currency used for cost calculation: USD
  • Exchange rate (to USD): 1 USD = n.a
  • Average wage cost of hired labour per day: 5
Most important factors affecting the costs
Labor, cement and stone are the main factors affecting the total cost. After couple of years as well pipes may require to be changed.
Establishment activities
  1. Excavation of the foundationConstruction of the reservoirExtending pipes from roof coverage to the reservoir (Timing/ frequency: None)
Establishment inputs and costs
Specify input Unit Quantity Costs per Unit (USD) Total costs per input (USD) % of costs borne by land users
Labour
Excavation of the foundation Construction of the reservoir persons/day 141.0 5.0 705.0 10.0
Equipment
Tools and pipes ha 1.0 344.0 344.0
Construction material
Cement bags 1.0 376.0 376.0
Stone m3 159.575 24.25818 3871.0 10.0
Total costs for establishment of the Technology 5'296.0
Total costs for establishment of the Technology in USD 5'296.0
Maintenance activities
  1. Cleaning of the reservoir (5 times a year) (Timing/ frequency: 5 times a year)
Maintenance inputs and costs
Specify input Unit Quantity Costs per Unit (USD) Total costs per input (USD) % of costs borne by land users
Labour
Cleaning of the reservoir persons/day 1.0 50.0 50.0 100.0
Total costs for maintenance of the Technology 50.0
Total costs for maintenance of the Technology in USD 50.0

Natural environment

Average annual rainfall
  • < 250 mm
  • 251-500 mm
  • 501-750 mm
  • 751-1,000 mm
  • 1,001-1,500 mm
  • 1,501-2,000 mm
  • 2,001-3,000 mm
  • 3,001-4,000 mm
  • > 4,000 mm
Agro-climatic zone
  • humid
  • sub-humid
  • semi-arid
  • arid
Specifications on climate
Thermal climate class: temperate
Slope
  • flat (0-2%)
  • gentle (3-5%)
  • moderate (6-10%)
  • rolling (11-15%)
  • hilly (16-30%)
  • steep (31-60%)
  • very steep (>60%)
Landforms
  • plateau/plains
  • ridges
  • mountain slopes
  • hill slopes
  • footslopes
  • valley floors
Altitude
  • 0-100 m a.s.l.
  • 101-500 m a.s.l.
  • 501-1,000 m a.s.l.
  • 1,001-1,500 m a.s.l.
  • 1,501-2,000 m a.s.l.
  • 2,001-2,500 m a.s.l.
  • 2,501-3,000 m a.s.l.
  • 3,001-4,000 m a.s.l.
  • > 4,000 m a.s.l.
Technology is applied in
  • convex situations
  • concave situations
  • not relevant
Soil depth
  • very shallow (0-20 cm)
  • shallow (21-50 cm)
  • moderately deep (51-80 cm)
  • deep (81-120 cm)
  • very deep (> 120 cm)
Soil texture (topsoil)
  • coarse/ light (sandy)
  • medium (loamy, silty)
  • fine/ heavy (clay)
Soil texture (> 20 cm below surface)
  • coarse/ light (sandy)
  • medium (loamy, silty)
  • fine/ heavy (clay)
Topsoil organic matter content
  • high (>3%)
  • medium (1-3%)
  • low (<1%)
Groundwater table
  • on surface
  • < 5 m
  • 5-50 m
  • > 50 m
Availability of surface water
  • excess
  • good
  • medium
  • poor/ none
Water quality (untreated)
  • good drinking water
  • poor drinking water (treatment required)
  • for agricultural use only (irrigation)
  • unusable
Water quality refers to:
Is salinity a problem?
  • Ja
  • Nee

Occurrence of flooding
  • Ja
  • Nee
Species diversity
  • high
  • medium
  • low
Habitat diversity
  • high
  • medium
  • low

Characteristics of land users applying the Technology

Market orientation
  • subsistence (self-supply)
  • mixed (subsistence/ commercial)
  • commercial/ market
Off-farm income
  • less than 10% of all income
  • 10-50% of all income
  • > 50% of all income
Relative level of wealth
  • very poor
  • poor
  • average
  • rich
  • very rich
Level of mechanization
  • manual work
  • animal traction
  • mechanized/ motorized
Sedentary or nomadic
  • Sedentary
  • Semi-nomadic
  • Nomadic
Individuals or groups
  • individual/ household
  • groups/ community
  • cooperative
  • employee (company, government)
Gender
  • women
  • men
Age
  • children
  • youth
  • middle-aged
  • elderly
Area used per household
  • < 0.5 ha
  • 0.5-1 ha
  • 1-2 ha
  • 2-5 ha
  • 5-15 ha
  • 15-50 ha
  • 50-100 ha
  • 100-500 ha
  • 500-1,000 ha
  • 1,000-10,000 ha
  • > 10,000 ha
Scale
  • small-scale
  • medium-scale
  • large-scale
Land ownership
  • state
  • company
  • communal/ village
  • group
  • individual, not titled
  • individual, titled
Land use rights
  • open access (unorganized)
  • communal (organized)
  • leased
  • individual
Water use rights
  • open access (unorganized)
  • communal (organized)
  • leased
  • individual
Access to services and infrastructure
health

poor
x
good
education

poor
x
good
technical assistance

poor
x
good
employment (e.g. off-farm)

poor
x
good
markets

poor
x
good
energy

poor
x
good
roads and transport

poor
x
good
drinking water and sanitation

poor
x
good
financial services

poor
x
good

Impacts

Socio-economic impacts
product diversity
decreased
x
increased

drinking water availability
decreased
x
increased

water availability for livestock
decreased
x
increased

water quality for livestock
decreased
x
increased

irrigation water availability
decreased
x
increased

irrigation water quality
decreased
x
increased

demand for irrigation water
increased
x
decreased

expenses on agricultural inputs
increased
x
decreased

workload
increased
x
decreased

Socio-cultural impacts
food security/ self-sufficiency
reduced
x
improved

health situation
worsened
x
improved

community institutions
weakened
x
strengthened

SLM/ land degradation knowledge
reduced
x
improved

situation of socially and economically disadvantaged groups (gender, age, status, ehtnicity etc.)
worsened
x
improved

livelihood and human well-being
reduced
x
improved


It has provided the access to drinking water for human beings and livestock. As well as it provides irrigation water to kitchen gardens for the HHs who lives near by the Alika Elementary School.

Ecological impacts
water quantity
decreased
x
increased

water quality
decreased
x
increased

harvesting/ collection of water (runoff, dew, snow, etc)
reduced
x
improved

surface runoff
increased
x
decreased

evaporation
increased
x
decreased

drought impacts
increased
x
decreased

Off-site impacts

Cost-benefit analysis

Benefits compared with establishment costs
Short-term returns
very negative
x
very positive

Long-term returns
very negative
x
very positive

Benefits compared with maintenance costs
Short-term returns
very negative
x
very positive

Long-term returns
very negative
x
very positive

Once roof rain water harvesting project is implemented and constructed in a place, It will not need much recurrent costs.

Climate change

Gradual climate change
annual temperature increase

not well at all
x
very well
Climate-related extremes (disasters)
local rainstorm

not well at all
x
very well
local windstorm

not well at all
x
very well
drought

not well at all
x
very well
general (river) flood

not well at all
x
very well
Other climate-related consequences
reduced growing period

not well at all
very well
Answer: not known

Adoption and adaptation

Percentage of land users in the area who have adopted the Technology
  • single cases/ experimental
  • 1-10%
  • 11-50%
  • > 50%
Of all those who have adopted the Technology, how many have done so without receiving material incentives?
  • 0-10%
  • 11-50%
  • 51-90%
  • 91-100%
Number of households and/ or area covered
24 households covering 10 percent of stated area
Has the Technology been modified recently to adapt to changing conditions?
  • Ja
  • Nee
To which changing conditions?
  • climatic change/ extremes
  • changing markets
  • labour availability (e.g. due to migration)

Conclusions and lessons learnt

Strengths: land user's view
Strengths: compiler’s or other key resource person’s view
  • Provides low cost safe drinking water to the community members (Alika school and HHs who lives near the reservoir free of charge). Further more it provides irrigation water for the kitchen gardens in some extent.

    How can they be sustained / enhanced? Safe drinking water can be easily available during the winter season but during the three months of summer the water should be carefully used only for drinking.
  • Requires minimum maintenance when constructed properly.

    How can they be sustained / enhanced? Pipe scheme, roof coverage area of the reservoir, should be cleaned, if any leakages occurs in the pipes or reservoir , they should be sealed.
  • Application of the technology has provided the chance of having leisure time for the families.

    How can they be sustained / enhanced? Families and community members should use the water effectively.
  • Roof rain water harvesting technology has supported the community members, economically.

    How can they be sustained / enhanced? Community members should take active participation in the maintenance of the reservoirs.
Weaknesses/ disadvantages/ risks: land user's viewhow to overcome
Weaknesses/ disadvantages/ risks: compiler’s or other key resource person’s viewhow to overcome
  • This technology is difficult to be applied without external financial support. Adoption of local materials should be promoted and as well as reservoirs be properly cleaned after the heavy rainfalls.
  • Technical knowledge is required for the application of this technology. The technical knowledge should be transferred to the extension workers or local people to provide technical support in the future.
  • During the drought season with no rain fall enough water cannot be harvested inside the reservoir. Water can be transferred to this reservoir through water tanks from other villages.
  • Social conflicts can occur during the distribution of water. Meetings and awareness sharing events should be held. Water in keeper can be introduced by CDCs for the distribution of water.

References

Compiler
  • Aqila Haidery
Editors
Reviewer
  • Alexandra Gavilano
Date of documentation: Mei 30, 2016
Last update: Maart 6, 2019
Resource persons
Full description in the WOCAT database
Linked SLM data
Documentation was faciliated by
Institution Project
This work is licensed under Creative Commons Attribution-NonCommercial-ShareaAlike 4.0 International
