Grass strips (PASP, NIger)

Grass strips (النيجر)

Bandes enherbées (French)

الوصف

Grass strips slow down runoff, increase infiltration and retain sediment, thus increasing crop production.

Grass strips measuring 0.80 m to 1 m wide are planted 20 to 80 m apart on low-gradient terrain. Local grasses (for example, Andropogon gayanus, Cymbopogon schoenateus and Vetivera nigritiana) are sown or planted (plantlets) at the start of the rainy season. Like stone bunds, grass strips are planted along the natural contour of the land to slow down runoff, increase infiltration and retain sediment. Grass strips get bigger as sediment builds up, which maintains their capacity to retain water, unlike mechanical structures (stone bunds and dikes).
The species of grass are chosen according to what the farmers want to use them for (straw, hay, mat weaving, roofing, construction of straw granaries, brooms, etc.). In cattle and sheep raising areas, the use of fodder plants can increase interest in this technique and ensure wider acceptance. It is recommended that the development of grass strips be combined with assisted natural regeneration (woody species) or the planting of trees.

Designed as an erosion control measure, grass strips slow down runoff in the event of heavy rain. They distribute rainwater more evenly over the land and improve infiltration which is particularly important when there are dry spells in the rainy season. Sediment builds up behind the grass strips, thereby reducing the erosion of fertile soil layers. The roots of the plants bind the soil and hold it in place. Although the vegetation growing in the strips competes with the crops to some extent for water, the overall effect on yields is positive. Crops are also protected from wind erosion. Thanks to the vegetation cover they provide, grass strips contribute to lowering soil temperature.
Like contour stone bunds, grass strips reduce the harmful effects of heavy rain and violent downpours, events that are expected to increase as a result of climate change.
Compared with plots without grass strips, millet yields were 50 kg per hectare per year higher, and straw yields 125 kg higher on plots with grass strips. Yields can be substantially improved by combining grass strips with the application of organic fertiliser, mulch or pen manure. The best results, an average increase of 280 kg of millet grain per hectare (370 kg of straw per hectare), were achieved by combining them with mulching and pen manuring. Grass strips therefore improve yields of cereals and forage for livestock (straw and grass growing on the strips).
Increased crop output increases household food security and improves livestock feeding. The straw cut on the grass strips can also be used for other purposes (fencing and roofing). It is also a source of income, as traditional products made with straw, such as woven mats, can be sold.

Grass growth tends to be patchy, and resowing is required several times to fill in the gaps in the strip. In order to protect the grass strips from grazing animals during the first year, it is recommended that the area be monitored, which requires strict control over the village herds and flocks and those of nomadic livestock keepers.
Some grasses tend to invade crop fields. It is therefore important to control them by cutting them down before they flower and to tend the strips regularly, straightening and cutting back the edges.
Any dead plants in the grass strips must be regularly replaced. Grass strips are more likely to be maintained if they are economically profitable, for example, if they produce hay for livestock or their output can be sold as forage or construction material.

It is a technique designed mainly for cropland, but can also be used on rangeland, provided that the plants are protected when the grass strips are put in place. Grass strips are suitable for areas in the Sahel and the Sudan with rainfall ranging between 400 and 1,000 mm/year and gently sloping terrain (< 2%). Ecological units that benefit from the implementation of this measure include dune land, pediments and plains (highland pediments). Grass strips are particularly appropriate for non-stony land in areas with higher rainfall levels.

الموقع

الموقع: Filingué, Ouallam, Tillabéri, Tera, Niger, النيجر

عدد مواقع تنفيذ التقنيةالتي تم تحليلها:

المرجع الجغرافي للمواقع المختارة
  • 2.2165, 14.25192

انتشار التقنية: منتشرة بالتساوي على مساحة (approx. 100-10 كم2)

في منطقة محمية بشكل دائم؟:

تاريخ التنفيذ: منذ 10-50 سنة

نوع التقديم
(PASP, NIger)

تصنيف التقنية

الغرض الرئيسي
  • تحسين الإنتاج
  • الحد من تدهور الأراضي ومنعه وعكسه
  • الحفاظ على النظام البيئي
  • حماية مستجمعات المياه / المناطق الواقعة في اتجاه مجرى النهر - مع تقنيات أخرى
  • الحفاظ على/تحسين التنوع البيولوجي
  • الحد من مخاطر الكوارث
  • التكيف مع تغير المناخ/الظواهر المتطرفة وآثارها
  • التخفيف من تغير المناخ وآثاره
  • خلق أثر اقتصادي مفيد
  • خلق أثر اجتماعي مفيد
استخدام الأراضي

  • الأراضي الزراعية
    • زراعة سنوية
    عدد مواسم الزراعة في السنة: 1
  • أراضي الرعي
    • رعي شبه مرتحل
    • قطع وحمل / صفر مرعى
إمدادات المياه
  • بعلية
  • مختلط بعلي-مروي
  • ري كامل

الغرض المتعلق بتدهور الأراضي
  • منع تدهور الأراضي
  • الحد من تدهور الأراضي
  • اصلاح/إعادة تأهيل الأراضي المتدهورة بشدة
  • التكيف مع تدهور الأراضي
  • غير قابل للتطبيق
معالجة التدهور
  • تآكل التربة بالمياه - الوزن(Wt): فقدان التربة السطحية/تآكل السطح
  • تآكل التربة الناتج عن الرياح - (Et): فقدان التربة السطحية
  • التدهور الكيميائي للتربة - (Cn): تراجع الخصوبة وانخفاض محتوى المادة العضوية (غير ناتج عن الانجراف)
  • تدهور المياه - (Ha): التجفيف
مجموعة الإدارة المستدامة للاراضي
  • الرعي وإدارة المراعي
  • التدابير المتقاطعة للمنحدرات
تدابير الإدارة المستدامة للأراضي
  • التدابير النباتية - V1: غطاء من الأشجار والشجيرات, V2: الأعشاب والنباتات العشبية المعمرة

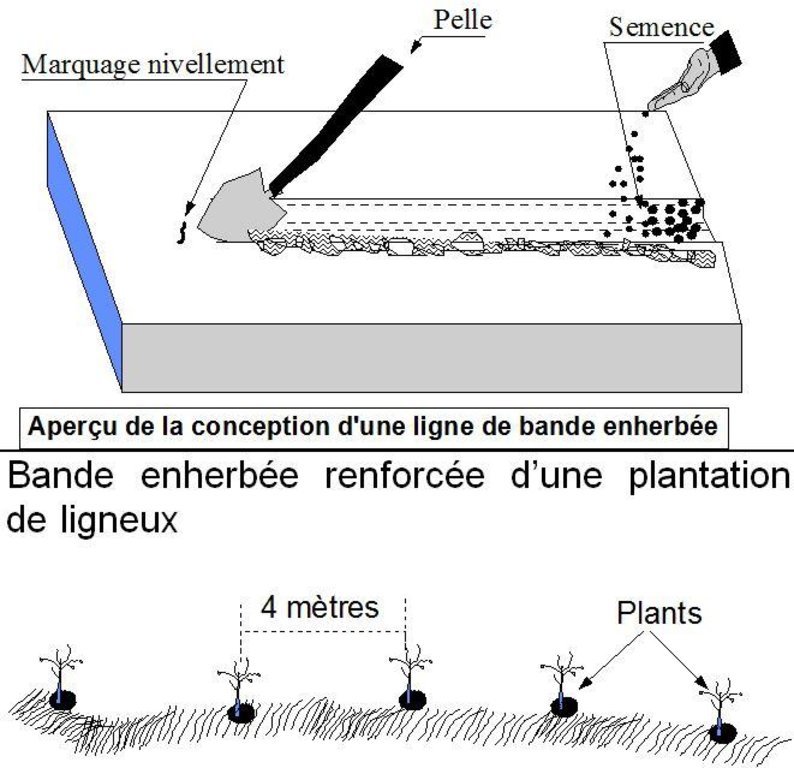

الرسم الفني

المواصفات الفنية
Grass strips measuring 0.80 m to 1 m wide are planted 20 to 80 m apart on low-gradient terrain. Local grasses (for example, Andropogon gayanus, Cymbopogon schoenateus and Vetivera nigritiana) are sown or planted (plantlets) along the natural contour at the start of the rainy season.

Technical knowledge required for field staff / advisors: moderate
Technical knowledge required for land users: low
Main technical functions: control of dispersed runoff: retain / trap, control of dispersed runoff: impede / retard, control of concentrated runoff: retain / trap, control of concentrated runoff: impede / retard, improvement of ground cover, stabilisation of soil (eg by tree roots against land slides), increase in organic matter, increase in nutrient availability (supply, recycling,…), increase of infiltration, increase / maintain water stored in soil, water harvesting / increase water supply, sediment retention / trapping, sediment harvesting, reduction in wind speed, increase of biomass (quantity), promotion of vegetation species and varieties (quality, eg palatable fodder)
Secondary technical functions: increase of groundwater level / recharge of groundwater

Aligned: -contour
Vegetative material: T : trees / shrubs, G : grass
Number of plants per (ha): 200
Spacing between rows / strips / blocks (m): 20-80
Width within rows / strips / blocks (m): 0.8-1
Grass species: Andropogon gayanus, Cymbopogon schoenateus and Vetivera nigritiana
Author: PASP

التأسيس والصيانة: الأنشطة والمدخلات والتكاليف

حساب المدخلات والتكاليف
  • يتم حساب التكاليف:
  • العملة المستخدمة لحساب التكلفة: CFA Franc
  • سعر الصرف (بالدولار الأمريكي): 1 دولار أمريكي = غير متاح CFA Franc
  • متوسط تكلفة أجر العمالة المستأجرة في اليوم: غير متاح
أهم العوامل المؤثرة على التكاليف
Labour: 6 man-days per ha • marking out the contour lines • making 10-15 cm deep furrows in which to plant the seeds or seedlings • sowing or planting 1 to 4 rows per strip. Upkeep: 2.5 man-days per year. Other costs: • grass seeds or seedlings • equipment: water-tube level.
أنشطة التأسيس
  1. marking out the contour lines (التوقيت/الوتيرة: None)
  2. making 10-15 cm deep furrows in which to plant the seeds or seedlings (التوقيت/الوتيرة: None)
  3. sowing or planting 1 to 4 rows per strip. (التوقيت/الوتيرة: None)
مدخلات وتكاليف التأسيس
تحديد المدخلات الوحدة الكمية التكاليف لكل وحدة (CFA Franc) إجمالي التكاليف لكل مدخل (CFA Franc) % من التكاليف التي يتحملها مستخدمو الأراضي
العمالة
labour ha 1,0 46,7 46,7 100,0
المواد النباتية
seeds ha 1,0 3,3 3,3 100,0
إجمالي تكاليف إنشاء التقنية 50.0
إجمالي تكاليف إنشاء التقنية بالدولار الأمريكي 50.0
أنشطة الصيانة
  1. resowing is required several times. Any dead plants in the grass strips must be regularly replaced. (التوقيت/الوتيرة: None)
  2. Cutting down grasses which invade crop fields. (التوقيت/الوتيرة: None)
  3. straightening and cutting back the edges (التوقيت/الوتيرة: None)

المناخ الطبيعي

متوسط هطول الأمطار السنوي
  • < 250 مم
  • 251- 500 ملم
  • 501 - 750ملم
  • 1,000-751 ملم
  • 1,500-1,100 ملم
  • 2,000-1,500 ملم
  • 3,000-2,001 ملم
  • 4,000-3,100 ملم
  • > 4000 ملم
المنطقة المناخية الزراعية
  • رطبة
  • شبه رطبة
  • شبه قاحلة
  • قاحلة
المواصفات الخاصة بالمناخ
Thermal climate class: subtropics
المنحدر
  • مسطح (0-2%)
  • بسيط (3-5%)
  • معتدل (6-10%)
  • متدحرج (11-15%)
  • تلال (16-30%)
  • شديدة الانحدار(31-60%)
  • فائقة الانحدار (>60%)
التضاريس
  • هضاب/سهول
  • أثلام مرتفعة
  • المنحدرات الجبلية
  • منحدرات التلال
  • منحدرات في السفوح
  • قاع الوادي
الارتفاع
  • 100-0 متر فوق سطح البحر
  • 500-101 متر فوق سطح البحر
  • 1,000-501 متر فوق سطح البحر
  • 1,500-1,001 متر فوق سطح البحر
  • 2,000-1,501 متر فوق سطح البحر
  • 2,500-2,100 متر فوق سطح البحر
  • 3,000-2,501 متر فوق سطح البحر
  • 4,000-3,001 متر فوق سطح البحر
  • > 4000 متر فوق سطح البحر
يتم تطبيق التقنية في
  • حالات محدبة أو نتؤات
  • حالات مقعرة
  • غير ذات صلة
عمق التربة
  • ضحل جدًا (0-20 سم)
  • ضحلة (21-50 سم)
  • متوسطة العمق (51-80 سم)
  • عميقة (81-120 سم)
  • عميقة جدًا (> 120 سم)
قوام التربة (التربة السطحية)
  • خشن / خفيف (رملي)
  • متوسط ( طميي، سلتي)
  • ناعم/ثقيل (طيني)
قوام التربة (> 20 سم تحت السطح)
  • خشن / خفيف (رملي)
  • متوسط ( طميي، سلتي)
  • ناعم/ثقيل (طيني)
محتوى المادة العضوية في التربة السطحية
  • عالية (>3%)
  • متوسطة (1-3%)
  • منخفضة (<1%)
مستوى المياه الجوفية
  • سطحية
  • < 5 م
  • 50-5 م
  • > 50 م
توافر المياه السطحية
  • زائدة
  • جيد
  • متوسط
  • ضعيف/ غير متوافر
جودة المياه (غير المعالجة)
  • مياه شرب جيدة
  • مياه الشرب سيئة (تتطلب معالجة)
  • للاستخدام الزراعي فقط (الري)
  • غير صالحة للإستعمال
تشير جودة المياه إلى:
هل تمثل الملوحة مشكلة؟
  • نعم
  • كلا

حدوث الفيضانات
  • نعم
  • كلا
تنوع الأنواع
  • مرتفع
  • متوسط
  • منخفض
تنوع الموائل
  • مرتفع
  • متوسط
  • منخفض

خصائص مستخدمي الأراضي الذين يطبقون التقنية

التوجه السوقي
  • الكفاف (الإمداد الذاتي)
  • مختلط (كفاف/ تجاري)
  • تجاري/سوق
الدخل من خارج المزرعة
  • أقل من % 10من كامل الدخل
  • 10-50% من جميع الإيرادات
  • ‏‏ >50‏% من إجمالي الدخل
المستوى النسبي للثروة
  • ضعيف جدا
  • ضعيف
  • متوسط
  • ثري
  • ثري جدا
مستوى المكننة
  • عمل يدوي
  • الجر الحيواني
  • ميكانيكية/ مزودة بمحرك
مستقر أو مرتحل
  • غير المترحل
  • شبه مرتحل
  • مرتحل
أفراد أو مجموعات
  • فرد/أسرة معيشية
  • المجموعات/ المجتمع المحلي
  • تعاونية
  • موظف (شركة، حكومة)
الجنس
  • نساء
  • رجال
العمر
  • أطفال
  • شباب
  • متوسط العمر
  • كبار السن
المساحة المستخدمة لكل أسرة
  • < 0.5 هكتارا
  • 0.5 - 1 هكتار
  • 1 -2 هكتار
  • 2 - 5 هكتار
  • 5 - 15 هكتار
  • 15 - 50 هكتار
  • 50 - 100هكتار
  • 500-100 هكتار
  • 1,000-500 هكتار
  • 10,000-1,000 هكتار
  • > 10,000 هكتار
الحجم
  • على نطاق صغير
  • على نطاق متوسط
  • على نطاق واسع
ملكية الارض
  • دولة
  • شركة
  • مجتمعي/قروي
  • لمجموعة
  • فردية، لا يوجد سند ملكية
  • فردية، يوجد سند ملكية
حقوق استخدام الأراضي
  • وصول مفتوح (غير منظم)
  • مجتمعي (منظم)
  • مؤجر
  • فردي
حقوق استخدام المياه
  • وصول مفتوح (غير منظم)
  • مجتمعي (منظم)
  • مؤجر
  • فردي
الوصول إلى الخدمات والبنية التحتية
الصحة

ضعيف
x
جيد
التعليم

ضعيف
x
جيد
المساعدة التقنية

ضعيف
x
جيد
العمل (على سبيل المثال خارج المزرعة)

ضعيف
x
جيد
الأسواق

ضعيف
x
جيد
الطاقة

ضعيف
x
جيد
الطرق والنقل

ضعيف
x
جيد
مياه الشرب وخدمات الصرف الصحي

ضعيف
x
جيد
الخدمات المالية

ضعيف
x
جيد

الآثار

الآثار الاجتماعية والاقتصادية
إنتاج المحاصيل
انخفض
x
زاد

إنتاج الأعلاف
انخفض
x
زاد

إنتاج حيواني
انخفض
x
زاد

خطر فشل الإنتاج
زاد
x
انخفض

منطقة الإنتاج (الأراضي الجديدة المزروعة/المستخدمة)
انخفض
x
زاد


Part of the plot is taken up by the grass strips, reducing the area left for growing crops

دخل المزرعة
انخفض
x
زاد

تنوع مصادر الدخل
انخفض
x
زاد

عبء العمل
زاد
x
انخفض

competition of grasses with crops
decreased
x
increased

الآثار الاجتماعية والثقافية
الأمن الغذائي / الاكتفاء الذاتي
انخفاض
x
تحسن

التخفيف من حدة الصراع
ساءت
x
تحسن

contribution to human well-being
decreased
x
increased


Increased crop output increases household food security and improves livestock feeding. The straw cut on the grass strips can also be used for other purposes (fencing and roofing). It is also a source of income, as traditional products made with straw, such as woven mats, can be sold.

الآثار الايكولوجية
الحصاد/ جمع المياه (الجريان السطحي، الندى، الثلج، إلخ)
انخفاض
x
تحسن

الجريان السطحي
زاد
x
انخفض

رطوبة التربة
انخفض
x
زاد

غطاء التربة
انخفاض
x
تحسن

فقدان التربة
زاد
x
انخفض

دورة المغذيات/إعادة الشحن
انخفض
x
زاد

سرعة الرياح
زاد
x
انخفض

الآثار خارج الموقع
الفيضانات في اتجاه مجرى النهر (غير مرغوب فيها)
زاد
x
انخفاض

تراكم الطمي باتجاه مصب النهر
زاد
x
انخفض

الرواسب المنقولة بواسطة الرياح
زاد
x
انخفاض

تحليل التكلفة والعائد

العوائد مقارنة بتكاليف التأسيس
عوائد قصيرة الأجل
سلبي للغاية
x
ايجابي جدا

عوائد طويلة الأجل
سلبي للغاية
x
ايجابي جدا

العوائد مقارنة بتكاليف الصيانة
عوائد قصيرة الأجل
سلبي للغاية
x
ايجابي جدا

عوائد طويلة الأجل
سلبي للغاية
x
ايجابي جدا

تغير المناخ

تغير مناخ تدريجي
درجة الحرارة السنوية زيادة

ليس جيدا على الاطلاق
x
جيدة جدا
الظواهر المتطرفة / الكوارث المرتبطة بالمناخ
عاصفة ممطرة محلية

ليس جيدا على الاطلاق
x
جيدة جدا
عاصفة هوائية محلية

ليس جيدا على الاطلاق
x
جيدة جدا
جفاف

ليس جيدا على الاطلاق
x
جيدة جدا
فيضان عام (نهر)

ليس جيدا على الاطلاق
x
جيدة جدا
العواقب الأخرى المتعلقة بالمناخ
انخفاض فترة النمو

ليس جيدا على الاطلاق
جيدة جدا
إجابة: غير معروف

التبني والتكيف

نسبة مستخدمي الأراضي في المنطقة الذين تبنوا التقنية
  • حالات فردية/تجريبية
  • 1-10‏%
  • 11-50%
  • > 50%
من بين جميع الذين تبنوا التقنية، كم منهم فعلوا ذلك دون تلقي أي حوافز مادية؟
  • 10-0‏%
  • 11-50%
  • 51-90%
  • 91-100%
هل تم تعديل التقنية مؤخرًا لتتكيف مع الظروف المتغيرة؟
  • نعم
  • كلا
مع أي من الظروف المتغيرة؟
  • تغير المناخ / التطرف
  • الأسواق المتغيرة
  • توفر العمالة (على سبيل المثال بسبب الهجرة)

الاستنتاجات والدروس المستفادة

نقاط القوة: وجهة نظر مستخدم الأرض
نقاط القوة: وجهة نظر جامع المعلومات أو غيره من الأشخاص الرئيسيين لمصدر المعلومات
  • reduce the harmful effects of heavy rain and violent downpours, events that are expected to increase as a result of climate change
  • improve rainwater harvesting and water retention in the soil
  • contribute to creating vegetation cover, which provides a habitat for biodiversity
  • contribute to lowering soil temperature and are also effective in reducing wind erosion. As the vegetation provides shelter from the wind, fine particles of soil accumulate behind the strips.
  • Increased crop output increases household food security and improves livestock feeding. The straw cut on the grass strips can also be used for other purposes (fencing and roofing). It is also a source of income, as traditional products made with straw, such as woven mats, can be sold.
نقاط الضعف / المساوىء / المخاطر: وجهة نظر مستخدم الأرضكيفية التغلب عليها
نقاط الضعف / المساوىء / المخاطر: وجهة نظر جامع المعلومات أو غيره من الأشخاص الرئيسيين لمصدر المعلوماتكيفية التغلب عليها
  • Grass growth tends to be patchy, and resowing is required several times to fill in the gaps in the strip. Strips with bare patches are not effective in retaining water, and rilling can be caused by water gushing through the gaps. The clumps must therefore be arranged in staggered rows and the strips made wide enough to prevent this problem.
  • With the use of certain types of grasses that grow in clumps, such as Andropogon grass, gaps are left between the tufts, and water spurting through these gaps can cause rilling.
  • In spite of good results in terms of increased production and soil improvement, grass strips have only been widely accepted in southern Niger (Maradi and Zinder). Farmers are of the view that grass strips could be confused with plot boundaries.
  • Certain grasses (such as Andropogon gayanus) have a harmful effect on nearby crops.
  • Part of the plot is taken up by the grass strips, reducing the area left for growing crops. This hinders acceptance in areas where land is limited.

المراجع

جامع المعلومات
  • Dieter Nill
المحررون
المُراجع
  • Deborah Niggli
  • Alexandra Gavilano
تاريخ التوثيق: 25 سبتمبر، 2014
اخر تحديث: 12 يونيو، 2019
الأشخاص الرئيسيين لمصدر المعلومات
الوصف الكامل في قاعدة بيانات WOCAT
بيانات الإدارة المستدامة للأراضي المرتبطة
تم تسهيل التوثيق من قِبَل
المؤسسة المشروع
المراجع الرئيسية
  • Good Practices in Soil and Water Conservation. A contribution to adaptation and farmers´ resilience towards climate change in the Sahel. Published by GIZ in 2012.: http://agriwaterpedia.info/wiki/Main_Page
This work is licensed under Creative Commons Attribution-NonCommercial-ShareaAlike 4.0 International
