Terrace
(Chine)
Description
Terraces are built on a slope land which as a raised bank made up of earth or stone with vertical or sloping sides and an approximately flat top to control soil erosion and preserve and enhance soil fertility.
Aims / objectives: A terrace has a raised bank made up of earth or stone with vertical or sloping sides and a flat top. It can reduce slope angle and length, wrap runoff, increase infiltration and reduce soil loss. Crops can grow well because water increases in the soil. The ground cover is improved. Terraces can be constructed by manual labor or machine. Firstly, surveying the slope hills and determining width of terraces according to the slope angle and soil texture. Secondly, leveling up the slope and constructing the banks. Thirdly, maintaining. The terraces are implemented together by state, local A terrace has a raised bank of earth or stone with vertical or sloping sides and a approximately flat top. It can reduce slope angle and length, retain runoff, increase infiltration and reduce the soil loss. Crops can grow well because water increases in soils. Meanwhile, ground cover is improved. Terrace can be constructed by manual labor or machine. Firstly, determining the width of the field according to the slope angle and soil texture. Secondly, putting the topsoil aside. Thirdly, leveling up the slope and constructing banks. At last, putting the topsoil to the top of the flat surface.
Lieu
Lieu: Shaanxi, Shanxi, Gansu, Henan, Inner Mongolia, Chine
Géo-référence des sites sélectionnés
Date de démarrage: 1950
Année de fin de l'Approche: sans objet
Type d'Approche
-
traditionnel/ autochtone
-
initiative/ innovation récente locale
-
fondé sur un projet/ programme

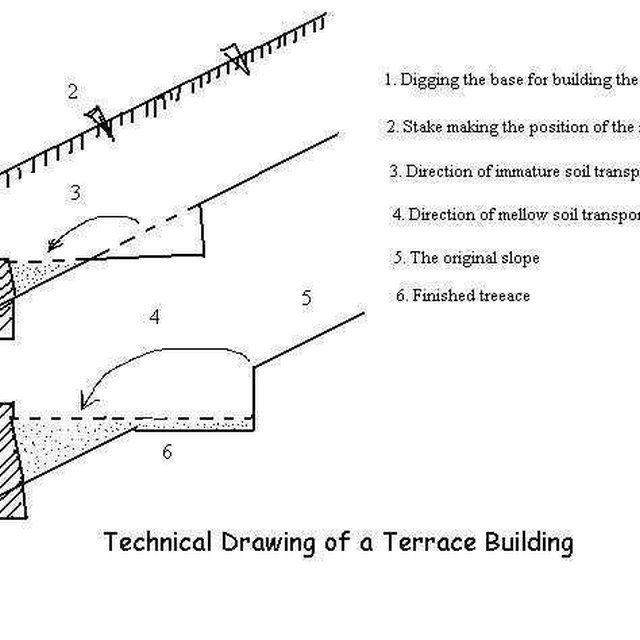

Technical drawings of a terrace in the Loess Plateau

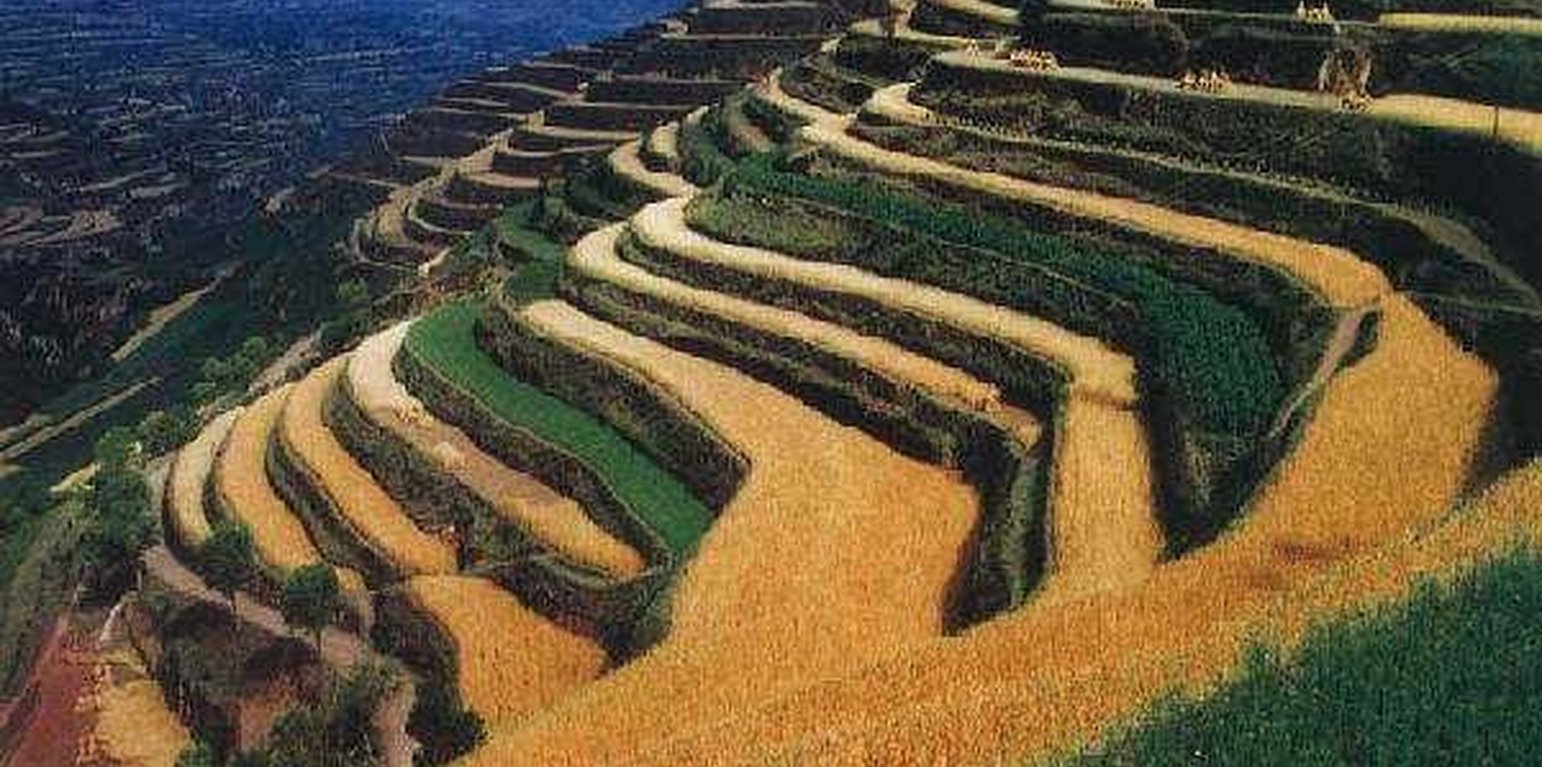

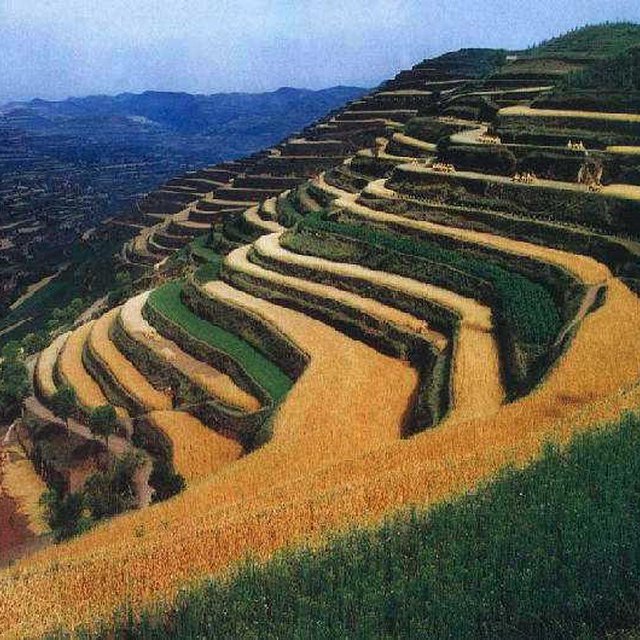

Picture of terrace in the Loess Plateau
Objectifs de l'approche et environnement favorable
Principaux objectifs de l'Approche
The Approach focused mainly on SLM with other activities (Increasing crop yield.)
The main objectives of the approach were conserving soil and water on slope land and enhancing soil fertility.
The SLM Approach addressed the following problems: Soil loss and land degradation, lack of fund and technology.
Conditions favorisant la mise en oeuvre de la/(des) Technologie(s) appliquée(s) sous l'Approche
Conditions entravant la mise en oeuvre de la/(des) Technologie(s) appliquée(s) sous l'Approche
-
Disponibilité/ accès aux ressources et services financiers: No enough money
Treatment through the SLM Approach: The national government partly fund, individual partly invests, local government partly invests.
-
Cadre juridique (régime foncier, droits d'utilisation des terres et de l'eau): The existing land ownership, land use rights / water rights hindered a little the approach implementation The ownership of the land resources belongs to state and communities, land users can only lease the land for a period of time, they worry about their land would be transferred to others.
-
Connaissances sur la GDT, accès aux supports techniques: Poor knowledge for how to reduce the soil loss
Treatment through the SLM Approach: Ehancing SWC specialists guidance
-
Autre: Peasant worry about that they can not own the use right.
Treatment through the SLM Approach: The national government advocates whose who invest labors who get the benefits.
Participation et rôles des parties prenantes impliquées dans l'Approche
Parties prenantes impliquées dans l'Approche et rôles
Quels acteurs/ organismes d'exécution ont été impliqués dans l'Approche? |
Spécifiez les parties prenantes |
Décrivez le rôle des parties prenantes |
exploitants locaux des terres / communautés locales |
Working land users were mainly men (Men are the main force for field work.)
Existing groups of land users
Experienced peasant may be involved in introducing the local situations. |
Men know much more technical knowledge and skills than women.
If a terrace is constructed by machine, men and women are not different. If a terrace is constructed by manual labor, men can do more work. |
Spécialistes de la GDT/ conseillers agricoles |
|
|
gouvernement national (planificateurs, décideurs) |
|
|
Participation des exploitants locaux des terres/ communautés locales aux différentes phases de l'Approche
aucun
passive
soutien extérieur
interactive
auto-mobilisation
initiation/ motivation
rapid/participatory rural appraisal; The approach is a traditional way to harvest water and wrap soils, SWC applied land users easy to understand and accept it if some subsidy being obtained.
planification
interviews/questionnaires; Being involved in the planning.
mise en œuvre
responsibility for minor steps; Being involved in the planning.
suivi/ évaluation
reporting; No participating.
Prises de décision pour la sélection de la Technologie de GDT
Les décisions ont été prises par
-
les exploitants des terres seuls (auto-initiative)
-
principalement les exploitants des terres soutenus par des spécialistes de la GDT
-
tous les acteurs concernés dans le cadre d'une approche participative
-
principalement les spécialistes de la GDT, après consultation des exploitants des terres
-
les spécialistes de la GDT seuls
-
les responsables politiques/ dirigeants
Les décisions ont été prises sur la base de
-
l'évaluation de connaissances bien documentées en matière de GDT (prises de décision fondées sur des preuves tangibles)?
-
les résultats de recherches?
-
expériences et opinions personnelles (non documentées)
Soutien technique, renforcement des capacités et gestion des connaissances
Les activités ou services suivants ont fait partie de l'approche
-
Renforcement des capacités/ formation
-
Service de conseils
-
Renforcement des institutions (développement organisationnel)
-
Suivi et évaluation
-
Recherche
Renforcement des capacités/ formation
La formation a été dispensée aux parties prenantes suivantes
-
exploitants des terres
-
personnels/ conseillers de terrain
-
extensionists/trainers, politicians/decision makers
Formats de la formation
-
sur le tas
-
entre agriculteurs (d'exploitants à exploitants)
-
zones de démonstration
-
réunions publiques
-
cours
Sujets abordés
Teaching them how to design and build terraces on a slope land etc.
Service de conseils
Le service de conseils était fourni
-
dans les champs des exploitants?
-
dans des centres permanents
Local government and SWC division.; Key elements: Demonstration, Visiting, Visiting; 1) Advisory service was carried out through: government's existing extension system 2) Advisory service was carried out through: government's existing extension system; Extension staff: mainly government employees 3) Target groups for extension: land users; Activities: Explain and demonstrate
Advisory service is quite adequate to ensure the continuation of land conservation activities; At each government level, there is a SWC division which is in charge of SWC activities including extension.
Renforcement des institutions
Institutions ont été renforcées ou mises en place
-
non
-
oui, un peu
-
oui, modérément
-
oui, beaucoup
Décrivez l'institution, ses rôles et responsabilités, ses membres, etc.
Type de soutien
-
financier
-
renforcement des capacités/ formation
-
équipement
Plus de détails
Suivi et évaluation
bio-physical aspects were regular monitored by 0 through measurements; indicators: None
technical aspects were regular monitored by 0 through measurements; indicators: None
socio-cultural aspects were ad hoc monitored by 0 through observations; indicators: None
economic / production aspects were regular monitored by 0 through measurements; indicators: None
area treated aspects were regular monitored by 0 through measurements; indicators: None
no. of land users involved aspects were ad hoc monitored by 0 through measurements; indicators: None
management of Approach aspects were ad hoc monitored by 0 through observations; indicators: None
There were few changes in the Approach as a result of monitoring and evaluation: None
Recherche
La recherche a traité les sujets suivants
-
sociologie
-
économie/ marketing
-
écologie
-
technologie
Research was carried out both on station and on-farm
Financement et soutien matériel externe
Budget annuel en dollars US de la composante GDT
-
< 2 000
-
2 000-10 000
-
10 000-100 000
-
100 000-1 000 000
-
> 1 000 000
Precise annual budget: sans objet
Approach costs were met by the following donors: government (national - fund): 100.0%
Les services ou mesures incitatives suivantes ont été fournis aux exploitants des terres
-
Soutiens financiers/ matériels fournis aux exploitants des terres
-
Subventions pour des intrants spécifiques
-
Crédits
-
Autres incitations ou instruments
Soutiens financiers/ matériels fournis aux exploitants des terres
en partie financé
entièrement financé
équipement: machines: outils
hand tools
intrants agricoles: semences
intrants agricoles: semences: fertilisants
La main d'oeuvre fournie par les exploitants des terres était
-
volontaire
-
vivres-contre-travail
-
payée en espèces
-
récompensée avec un autre soutien matériel
Crédits
-
Conditions : Interest rate charged: 0.5%
Interest was lower than market rate.
-
Fournisseurs du crédit : sans objet
-
Destinataires du crédit : sans objet
Analyses d'impact et conclusions
Impacts de l'Approche
Non
Oui, un peu
Oui, modérément
Oui, beaucoup
Est-ce que l'Approche a aidé les exploitants des terres à mettre en œuvre et entretenir les Technologies de GDT?
Subsoiling and applying more manure and compost.
Est-ce que l'Approche a amélioré les questions foncières et des droits d'utilisation qui entravent la mise en œuvre des Technologies?
Persuading them to accept
The problem is likely to be overcome in the near future. The relationship between land ownership and use rights can be properly dealt with by government and managers.
Did other land users / projects adopt the Approach?
According to the local situation, pits and check dam etc. also adopted in the approach.
Principale motivation des exploitants des terres pour mettre en oeuvre la GDT
Durabilité des activités de l'Approche
Les exploitants des terres peuvent-ils poursuivre ce qui a été mis en oeuvre par le biais de l'Approche (sans soutien extérieur) ?
Conclusions et enseignements tirés
Points forts: point de vue de l'exploitant des terres
-
increase in production
-
Easier to till
Points forts: point de vue du compilateur ou d'une autre personne-ressource clé
-
Reduction of the slope angle (How to sustain/ enhance this strength: Raising terrace bank.)
-
reduction of the slope length (How to sustain/ enhance this strength: Protecting terrace banks by planting trees or others.)
-
Harvest of the runoff and increase in infiltration (How to sustain/ enhance this strength: Protecting the banks)
-
increase in soil fertility and organic matter (How to sustain/ enhance this strength: Applying manure and fertilizer)
-
improvement of ground cover (How to sustain/ enhance this strength: no till with mulching.)
Faiblesses/ inconvénients/ risques: point de vue de l'exploitant des terrescomment surmonter
Faiblesses/ inconvénients/ risques: point de vue du compilateur ou d'une autre personne-ressource clécomment surmonter
-
Decrease in production in the first1-2 year(s)
Fertilizering plenty of manure.
-
The ridge of the terrace is possible to be destroyed by storms and rats
Repairing and maintaining in time.
Références
Examinateur
-
David Streiff
-
Joana Eichenberger
Date de mise en oeuvre: 28 janvier 2009
Dernière mise à jour: 13 juillet 2022
Personnes-ressources
-
Meili WEN (baoyuan@bnu.edu.cn) - Spécialiste GDT
-
Baoyuan Liu (baoyuan@bnu.edu.cn0) - Spécialiste GDT
Description complète dans la base de données WOCAT
Données de GDT correspondantes
La documentation a été facilitée par
Institution
- Department of Resources and Environmental Science, Beijing Normal University (Department of Resources and Environmental Science, Beijing Normal University) - Chine
Projet
Références clés
-
Suide Water and Soil Conservation examination station of Yellow River Water Resources Committee: Corpus of Test Research of Water and Soil Conservation (the second volume), 1981 ,p130~185
-
Water and Soil Conservation Department of Yellow River Water Resources Committee of Ministry of Water Resources and Electric Power.: Corpus of economic benefits of water and soil measures, 1987, p77~102, 510~514
-
ongyinglin,Changpiguang ,Wangzhihua. Discussion on the several questions on increasing production of the terrace with two banks.: Soil and Water Conservation Science and Technology in Shanxi, 1990, No.1, p36~37.
-
Jiangdingsheng. Discussion on section design of the terrace on the Loess Plateau.: ACTA CONSERVATIONIS SOLI ET AQUAE SINICA, 1987,Vol.1,No.2, p28~35
-
Liangqichun, Changfushuang , Liming. A study on drawing up budgetary estimate quota of terraced field.: Bulletin of Soil and Water Conservation, 2001,Vol.21,No.5, p41~44
-
Liumingquan, Zhangaiqin, Liyouhua. Pattern engineering of reconstruction the slope cropland.: Soil and Water Conservation Science and Technology in Shanxi, 1992,No.3, p18~21.
-
Lixuelian,Qiaojiping. Synthetic technology of fertilizing and improving production on the new terrace.: Soil and Water Conservation Science and Technology in Shanxi, 1998,No.3,p13~14.
-
Terraces in China.: Ministry of Water Resources of China.The press of Jilin science technology , 1989
