Impression of Approach

Water Harvesting & Basin tillage (WHB) through demonstrations (ប្រទេសអាហ្រ្វិកខាងត្បូង)

ការពណ៌នា

Optimising rainwater use, reduce runoff by use of basins and reduce evaporation losses by applying a mulch (stone/reeds) on the runoff strip and in the basins.

Aims / objectives: Given the marginal soils of a clayey nature and/or slope terrain, coupled with erratic rainfall events, the technology aims to harvest available rain water and prevent runoff and soil loss. At present, PRAs are conducted in target areas and so far, people are eager to adopt the technology. The aim is to train them and assist in constructing the basins so that after a year they will be able to take over the project entirely even though the team will still be around to provide advice should the need arise.

ទីតាំង

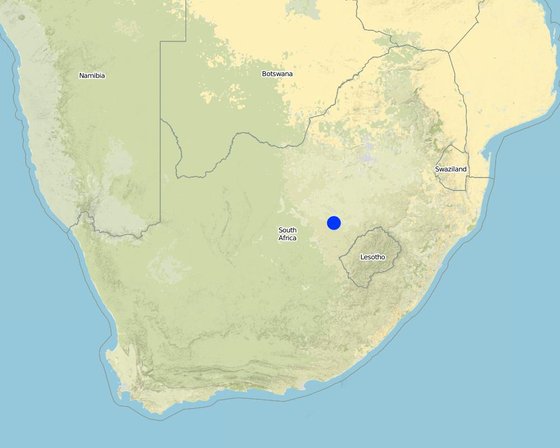

ទីតាំង: Free State, ប្រទេសអាហ្រ្វិកខាងត្បូង

ចំណុចយោងភូមិសាស្ត្រនៃទីតាំងជ្រើសរើស
  • 26.79908, -28.44973

កាលបរិច្ឆេទចាប់ផ្តើម: 1996

ឆ្នាំបញ្ចប់: 2002

ប្រភេទនៃវិធីសាស្ត្រផ្សព្វផ្សាយ
Map

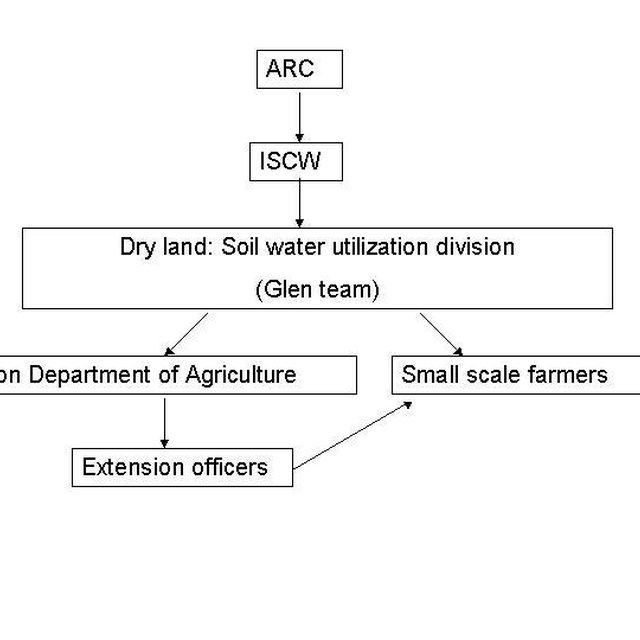

Organogram

គោលបំណងនៃវិធីសាស្រ្តផ្សព្វផ្សាយនិងបរិស្ថានអំណោយផល

គោលបំណងនៃវិធីសាស្រ្តផ្សព្វផ្សាយ
The Approach focused on SLM only (n/a)

*To make optimal use of pre-plant water that collects in basins from summer rains that fall during the fallow period. Saved water very beneficial during the reproductive growth of plants which often occurs when there is no rain.
*Prevention of soil and water loss through water erosion and runoff by the use of basins.
*Restriction of evaporation by the use of mulch. Straw is mostly preferred for its biodegradability although stone in comparative percentage cover is more effective.

The SLM Approach addressed the following problems: The target areas are marginal for crop production because of relatively low and erratic rainfall and dominantly clay soils on which the precipitation use efficiency is low because of high losses due to runoff and evaporation form the soul surface.
លក្ខខណ្ឌអំណោយផលដល់ការអនុវត្តបចេ្ចកទេសដែលបានប្រើក្នុងវិធីសាស្រ្តផ្សព្វផ្សាយ
  • ក្របខណ្ឌច្បាប់ (សិទ្ធិកាន់កាប់ដីធ្លី កម្មសិទ្ធីប្រើប្រាស់ដីនិងទឹក): The existing land ownership, land use rights / water rights greatly helped the approach implementation: Land owners have little deeds and no law inhibits them from actively participating in the project.
លក្ខខណ្ឌរាងរាំងដល់ការអនុវត្តបចេ្ចកទេសដែលបានប្រើក្នុងវិធីសាស្រ្តផ្សព្វផ្សាយ
  • សង្គម/វប្បធម៌/ និងតម្លៃនៃសាសនា: People are resistant to change. Had to convince that they can get better yields with new technique. Treatment through the SLM Approach: Interacting with people as much as possible and comparing yields on farmers days after harvest.
  • ភាពអាចរកបាននៃធនធានហិរញ្ញវត្ថុ និងសេវាកម្ម: Most can't afford inputs and to hire labour for construction of basins. Treatment through the SLM Approach: Team will ask for discounts from providers and encourage team work amongst community.

ការចូលរួមនិងតួរនាតីរបស់ភាគីពាក់ព័ន្ធដែលចូលរួម

ភាគីពាក់ព័ន្ធដែលចូលរួមក្នុងវិធីសាស្រ្តផ្សព្វផ្សាយ​ និងតួរនាទីរបស់គាត់
តើមានភាគីពាក់ព័ន្ធ/ភ្នាក់ងារអនុវត្តន៍ណាខ្លះដែលបានចូលរួមក្នុងវិធីសាស្ត្រផ្សព្វផ្សាយ? សូមបញ្ជាក់ភាគីពាក់ព័ន្ធ សូមពណ៌នាតួនាទីរបស់ភាគីពាក់ព័ន្ធ
អ្នកប្រើប្រាស់ដីក្នុងតំបន់/សហគមន៍ Land owners and local chiefs. Approach can only be implemented with their acceptance and approval. Specific ethnic groups: Black, resource poor farmers Women tend to be submissive and docile. They look up to the men for decision making.
អ្នកឯកទេសគ្រប់គ្រងដីប្រកបដោយចីរភាព/ទីប្រឹក្សាបច្ចេកទេសកសិកម្ម
រដ្ឋាភិបាលថ្នាក់ជាតិ (អ្នករៀបចំផែនការ អ្នកសម្រេចចិត្ត)
អង្គការអន្តរជាតិ ARC - ISCW
ការចូលរួមពីអ្នកប្រើប្រាស់ដីឬសហគមមូលដ្ឋាន​ក្នុងតំណាក់កាលផ្សេងគ្នានៃវិធីសាស្រ្តផ្សព្វផ្សាយ
គ្មាន
អសកម្ម
ការគាំទ្រពីខាងក្រៅ
អន្តរកម្ម
គំនិតផ្តួចផ្តើមដោយខ្ឡួនឯង
ការចាប់ផ្តើម/ការលើកទឹកចិត្ត
rapid/participatory rural appraisal
ការរៀបចំផែនការ
ការអនុវត្តន៍
casual labour
ការត្រួតពិនិត្យ និងវាយតម្លៃ
Research
on-farm; On-station experiments are conducted at Glen to evaluate different SWC techniques. The new technology is transferred by means of on-farm demonstration plots and information days.
គំនូសបំព្រួញ

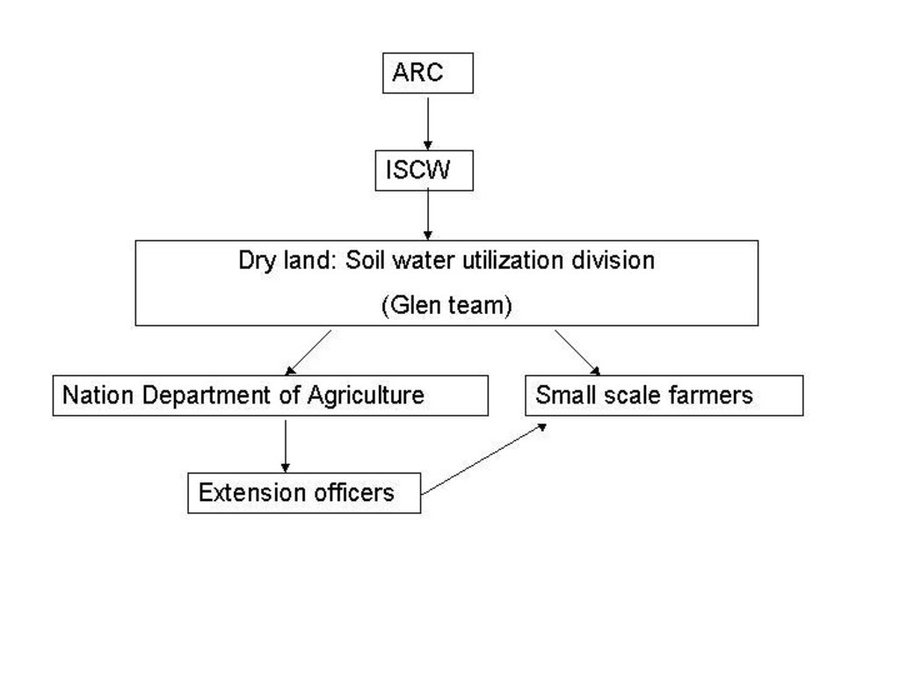

Organogram

ការសម្រេចចិត្តលើការជ្រើសរើសបច្ចេកទេស SLM

ការសម្រេចចិត្តត្រូវបានធ្វើដោយ

  • អ្នកប្រើប្រាស់ដីដោយខ្លួនឯងផ្ទាល់ (គំនិតផ្តួចផ្តើមដោយខ្លួនឯង)
  • អ្នកប្រើប្រាស់ដី ដោយមានការគាំទ្រពីអ្នកជំនាញឯកទេស SLM
  • គ្រប់ភាគីពាក់ព័ន្ធទាំងអស់ដែលជាផ្នែកនៃវិធីសាស្រ្តផ្សព្វផ្សាយដោយមានការចូលរួម
  • អ្នកជំនាញឯកទេស SLM បន្ទាប់ពីបានប្រឹក្សាយោបល់ជាមួយអ្នកប្រើប្រាស់ដី
  • អ្នកជំនាញឯកទេស SLM តែឯង
  • អ្នកនយោបាយ /អ្នកដឹកនាំ

ការសម្រេចចិត្តត្រូវបានធ្វើដោយផ្អែកលើ៖

  • វាយតម្លៃទៅលើចំណេះដឹងស្តីអំពី SLM ដែលបានចងក្រងជាឯកសារបានត្រឹមត្រូវ (ផ្អែកលើភស្តុតាងជាមូលដ្ឋានដើម្បីសម្រេចចិត្ត)
  • លទ្ធផលបានពីការស្រាវជ្រាវ
  • បទពិសោធន៍ និងគំនិតផ្ទាល់ខ្លួន(ពុំមានចងក្រងជាឯកសារ)

ការគាំទ្របច្ចេកទេស ការកសាងសមត្ថភាព និងការគ្រប់គ្រងចំណេះដឹង

សកម្មភាព ឬសេវាកម្មខាងក្រោមបានប្រើជាផ្នែកនៃវិធីសាស្ត្រផ្សព្វផ្សាយ
ការកសាងសមត្ថភាព/ ការបណ្តុះបណ្តាល
ការបណ្តុះបណ្តាលបានផ្តល់ដល់អ្នកពាក់ព័ន្ធដូចខាងក្រោម
  • អ្នកប្រើប្រាស់ដី
  • បុគ្គលិកចុះទីវាល/អ្នកផ្តល់ប្រឹក្សាយោបល់
  • extensionists/trainers
ទម្រង់នៃការបណ្តុះបណ្តាល
  • អនុវត្តន៍ជាមួយការងារ
  • ពីកសិករទីកសិករ
  • ទីតាំងបង្ហាញ
  • ការប្រជុំជាសាធារណៈ
  • វគ្គបណ្តុះបណ្តាល
មុខវិទ្យាដែលបានបញ្ចូល

Construction of basins; better understanding of the system in simple terms; the concept of infiltration, evapotranspiration; erosion and runoff.

សេវាកម្មប្រឹក្សា
សេវាកម្មប្រឹក្សាត្រូវបានផ្តល់ឱ្យ
  • នៅលើដីរបស់អ្នកប្រើប្រាស់ដី
  • នៅមជ្ឈមណ្ឌលជាអចិន្ត្រៃ
NDA Extension; Key elements: Assistance in technology transfer, Organising public meetings, Establishing & link between specialists and land users;
1) Advisory service was carried out through: government's existing extension system. Extension staff: mainly government employees
2) Target groups for extension: land users; Activities: Technology transfer

Advisory service is quite adequate to ensure the continuation of land conservation activities; With a little persuasion, they assist completely.
ការពង្រឹងស្ថាប័ន
ស្ថាប័នត្រូវបានព្រឹង/ បង្កើត
  • ទេ
  • បាទ/ច៎ា តិចតួច
  • បាទ/ច៎ា ជាមធ្យម
  • បាទ/ច៎ា បានខ្លាំង
នៅកម្រិតដូចខាងក្រោម
  • ថ្នាក់មូលដ្ឋាន
  • កម្រិតថ្នាក់តំបន់
  • កម្រិតថ្នាក់ជាតិ
ពិពណនាស្ថាប័ន៖ តួនាទី និងការទទួលខុសត្រូវ សមាជិក ។ល។
ប្រភេទនៃការគាំទ្រ
  • ហិរញ្ញវត្ថុ
  • ការកសាងសមត្ថភាព/ បណ្តុះបណ្តាល
  • សម្ភារៈ
សេចក្តីលម្អិតបន្ថែមទៀត
ការត្រួតពិនិត្យ និងវាយតម្លៃ
bio-physical aspects were regular monitored through measurements socio-cultural aspects were None monitored through measurements economic / production aspects were None monitored through measurements There were few changes in the Approach as a result of monitoring and evaluation: An organic mulch can be placed in the basins and on the runoff strip to stop evaporation losses. However cattle are allowed to graze in the land after the crop has been harvested. There after there is almost no organic mulch left to cover the soil surface. Stones were then suggested as an alternative mulch.
ការស្រាវជ្រាវ
ការស្រាវជ្រាវពាក់ព័ន្ធនឹងប្រធានបទខាងក្រោម
  • សង្គមវិទ្យា
  • សេដ្ឋកិច្ច/ទីផ្សារ
  • បរិស្ថានវិទ្យា
  • បច្ចេកវិទ្យា

Research was carried out both on station and on-farm

ការផ្តល់ថវិកា និងការគាំទ្រសម្ភារពីខាងក្រៅ

ថវិកាប្រចាំឆ្នាំគិតជាដុល្លាអាមេរិក​សម្រាប់ផ្នែក SLM
  • < 2,000
  • 2,000-10,000
  • 10,000-100,000
  • 100,000-1,000,000
  • > 1,000,000
Precise annual budget: មិនមាន
Approach costs were met by the following donors: national non-government (Water Research Commission): 100.0%
សេវាកម្ម និងការលើកទឹកចិត្តខាងក្រោមត្រូវបានផ្តល់ដល់អ្នកប្រើប្រាស់ដី
  • ការគាំទ្រផ្នែកហិរញ្ញវត្ថុ / សម្ភារៈដែលបានផ្តល់ទៅឱ្យអ្នកប្រើប្រាស់ដី
  • បដិភាគសម្រាប់ធាតុចូលជាក់លាក់
  • ឥណទាន
  • ការលើកទឹកចិត្ត ឬវិធីសាស្ត្រដ៏ទៃទៀត
ការគាំទ្រថវិការ/​ សម្ភារដែលបានផ្តល់ដល់អ្នកប្រើប្រាស់ដី
ផ្តល់ហិរញ្ញវត្ថុមួយផ្នែក
ផ្តល់ហិរញ្ញវត្ថុទាំងស្រុង
សម្ភារៈ: ម៉ាស៊ីន

សម្ភារៈ: ម៉ាស៊ីន: ឧបករណ៍

កសិកម្ម: គ្រាប់ពូជ

កសិកម្ម: គ្រាប់ពូជ: ជី

Biocides

កំលាំងពលកម្មដោយអ្នកប្រើប្រាស់ដីគឺ

ការវិភាគផលប៉ះពាល់ និងសេចក្តីសន្និដ្ឋាន

ឥទ្ធិពលនៃវិធីសាស្រ្តផ្សព្វផ្សាយ
ទេ
បាទ/ច៎ា បន្តិចបន្តួច
បាទ/ច៎ា ជាមធ្យម
បាទ/ច៎ា បានខ្លាំង
តើវិធីសាស្ត្រផ្សព្វផ្សាយជួយអ្នកប្រើប្រាស់ដីដើម្បីអនុវត្តន៍ និងថែទាំបច្ចេកទេស SLM?

Did other land users / projects adopt the Approach?

Team about to start a food security project adopting the WHB.

ការជំរុញទឹកចិត្តសំខាន់បំផុតនៃអ្នកប្រើប្រាស់ដីក្នុងការអនុវត្ត SLM
  • មិនមាន
និរន្តរភាពនៃសកម្មភាពផ្សព្វផ្សាយ
តើអ្នកប្រើប្រាស់ដីអាចបន្តដោយនិរន្តរភាពនូវអ្វីដែលបានអនុវត្តតាមរយៈការផ្សព្វផ្សាយ (ដោយមិនមានការគាំទ្រពីខាងក្រៅ)?
  • ទេ
  • បាទ/ចា៎
  • មិនប្រាកដ

សេក្តីសន្និដ្ឋាន និងមេរៀនបទពិសោធន៍

ភាពខ្លាំង: ទស្សនៈអ្នកប្រើប្រាស់ដី
  • Produced higher yields.
ភាពខ្លាំង: ទស្សនៈរបស់អ្នកចងក្រង ឬបុគ្គលសំខាន់ផ្សេងទៀត
  • Success of the WHB technique depends on suppressing water losses by runoff (R) and evaporation from the soil surface (Es). Measurements show that R has been reduced to zero and that Es has been reduced considerable, but still remains a serious avenue for water loss. (How to sustain/ enhance this strength: Future experimentation needs to focus on suppressing Es by any possible means.)
  • The WHB treatment gives considerably better yields than the conventional treatment. (How to sustain/ enhance this strength: Results from more seasons are needed to quantify the extent of this difference in a reliable way.)
  • Save on cultivation costs since no-till is employed.
  • The WHB technique is ell suited for use on very small pots, and even in townships. Many people in semi-arid areas could be usefully employed if this technique was widely adapted, and food security could be increased at the same time. (How to sustain/ enhance this strength: Extension work in this connection by the PSDA needs to be encourage.)
  • Soil loss from the land as a whole is zero. This is an important advantage over the conventional tillage in terms of sustainability.
ចំណុចខ្សោយ/ គុណវិបត្តិ/ ហានិភ័យ​ : ទស្សនៈអ្នកប្រើប្រាស់ដីវិធីដោះស្រាយ
  • It is labour intensive to initially construct the basins, by hand.
ចំណុចខ្សោយ/ គុណវិបត្តិ/ ហានិភ័យ​ : ទស្សនៈរបស់អ្នកចងក្រង ឬបុគ្គលសំខាន់ផ្សេងទៀតវិធីដោះស្រាយ
  • There is some soil movement form the runoff area into the basins, ad basins may silt up over time.
  • Huge storms may overflow and break basin walls; and basins may need some maintenance.
  • In the case of small rainfall events all the water may not reach the basins.
  • Organic mulch may act as a sponge and absorb some of the rainwater.

ឯកសារយោង

អ្នកចងក្រង
  • Cobus Botha
Editors
អ្នកត្រួតពិនិត្យ
  • Fabian Ottiger
កាលបរិច្ឆេទនៃការអនុវត្ត: 13 ខែ មករា ឆ្នាំ 2009
កែតម្រូវចុងក្រោយ: 11 ខែ កក្កដា ឆ្នាំ 2017
បុគ្គលសំខាន់ៗ
ការពណ៌នាលម្អិតក្នុងប្រព័ន្ធគ្រប់គ្រងទិន្នន័យរបស់វ៉ូខេត
ទិន្នន័យ SLM ភ្ជាប់ជាមួយ
ឯកសារនេះត្រូវបានសម្របសម្រួលដោយ
ស្ថាប័ន៖ គម្រោង
ឯកសារយោងសំខាន់ៗ
  • Optimising rainfall use efficiency for developing farmers with limited access to irrigation water, WRC Report No 878/1/00. Hensley, M; Botha, JJ; Anderson, JJ; Van Staden, PP & Du Toit, A. 2000Video 'In field Rainwater harvesting (1) Basic concepts to ensure agronomic and conservation sustainability in small scale farming'.The video illustrates the existing results obtained to enhance agronomic and conservation sustainability.: R120. Leon van Rensburg, P/B X01, Glen, 9360. Debruint@glen.agric.za
  • Optimising rainfall use efficiency for developing farmers with limited access to irrigation water, WRC Report No 878/1/00. Hensley, M; Botha, JJ; Anderson, JJ; Van Staden, PP & Du Toit, A. 2000:
  • Video 'In field Rainwater harvesting (1) Basic concepts to ensure agronomic and conservation sustainability in small scale farming'.:
