Slope erosion control using wooden pile walls
(ប្រទេសអាមេនី)
ការពណ៌នា
Small horizontal wooden structures and terraces on eroded slopes built to mitigate sheet or rill erosion and slow down water run-off. The technology is easy to apply and efficient to mitigate erosion processes of the upper soil layer and to stop small rock falls.
In the provinces of Aragatsotn and Shirak in Armenia, the weather is cold and temperate with dry summer. Steep slopes, pastures and some autochthonous oak forests make up the area. Farmers make most of their income with grazing by manual labour. The carrying capacity of pastures in the vicinity is regularly exceeded, and they degrade more and more. In order to stabilize the steep eroded slopes, pile walls were established. Pile walls are horizontal constructions along a slope, functioning as erosion control measures by slowing down the superficial water runoff, retaining materials and supporting the rehabilitation of vegetation.
The major advantages are: It is not expensive since mostly locally available materials can be used, and a positive effect can already be observed within a year. Also, the pile walls can be established relatively easy without any need of heavy machinery or specific knowledge and, therefore, allow the involvement of the local population.
In the case of the implementation in Armenia, the exact location for the pilot measures was selected in such a way that grazing activities were almost not impaired. For temporary exclusion of livestock, electric fencing was used. Within the fenced area, pile walls were established in the washed-out rills along the slope to address the water erosion phenomena.
The technical requirements and workload for the construction of a pile wall are relatively low. The needed resources require iron piles, a hammer, wooden logs (or a bundle of branches) and tree cuttings. First, the wooden logs were cut in 1-2 m length to fit into the irregular rills of the slope. After identifying the locations of individual pile walls, the team fixed the logs with iron poles of about 70-100cm length. The distance between the pile walls varies between 1-3m, depending on the topography: the steeper the slope, the closer the distance. The space behind the logs was filled with soil, plant material and rocks to stabilize the construction and to reduce the risk of water washing out the soil and passing below the logs. As a last step, the terraces were covered with hay to provide protection against precipitation and to accelerate re-growth of grass through the seeds contained in the hay residuals.
Community members were surprised how easy and quick the pile walls could be established. A team of two workers established a pile wall within 30 min. Since these areas are usually intensively used and thus are of high importance for the community, even a temporary exclusion from use must be thoroughly discussed and agreed upon.
The measure slows down vertical water-run off and provides steps for cattle. Due to temporary fencing and the application of hay mulch vegetation is recovering on these parts.

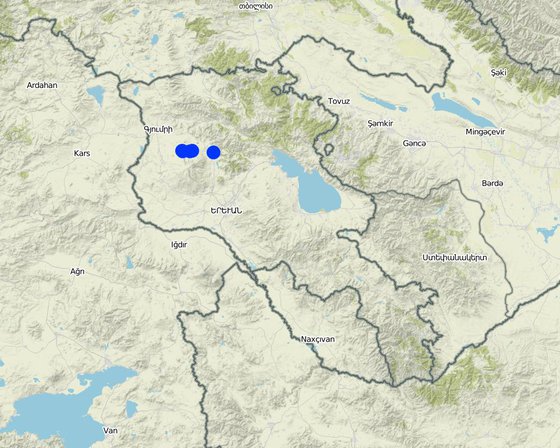

ទីតាំង
ទីតាំង: Lusagyugyh, Hnaberd, Ghegadhzor, Saralandj, Mets Mantash, Aragatsotn and Shirak Marzes (Provinces), ប្រទេសអាមេនី
ចំនួនទីកន្លែងបច្ចេកទេស ដែលវិភាគ: 2-10 កន្លែង
ចំណុចយោងភូមិសាស្ត្រនៃទីតាំងជ្រើសរើស
-
44.38783, 40.60717
-
44.17575, 40.61962
-
44.15407, 40.61747
-
44.08078, 40.6189
-
44.08233, 40.61718
ការសាយភាយនៃបច្ចេកទេស: ត្រូវបានផ្សព្វផ្សាយត្រឹមតំបន់មួយ (approx. < 0.1 គម2 (10 ហិកតា))
កាលបរិច្ឆេទនៃការអនុវត្ត: តិចជាង 10ឆ្នាំមុន (ថ្មី)
ប្រភេទនៃការណែនាំឱ្យអនុវត្តន៍៖
-
តាមរយៈការបង្កើតថ្មីរបស់អ្នកប្រើប្រាស់ដី
-
ជាផ្នែកនៃប្រព័ន្ធប្រពៃណី (> 50 ឆ្នាំ)
-
ពេលកំពុងពិសោធន៍
-
តាមរយៈគម្រោង / អន្តរាគមន៍ពីខាងក្រៅ

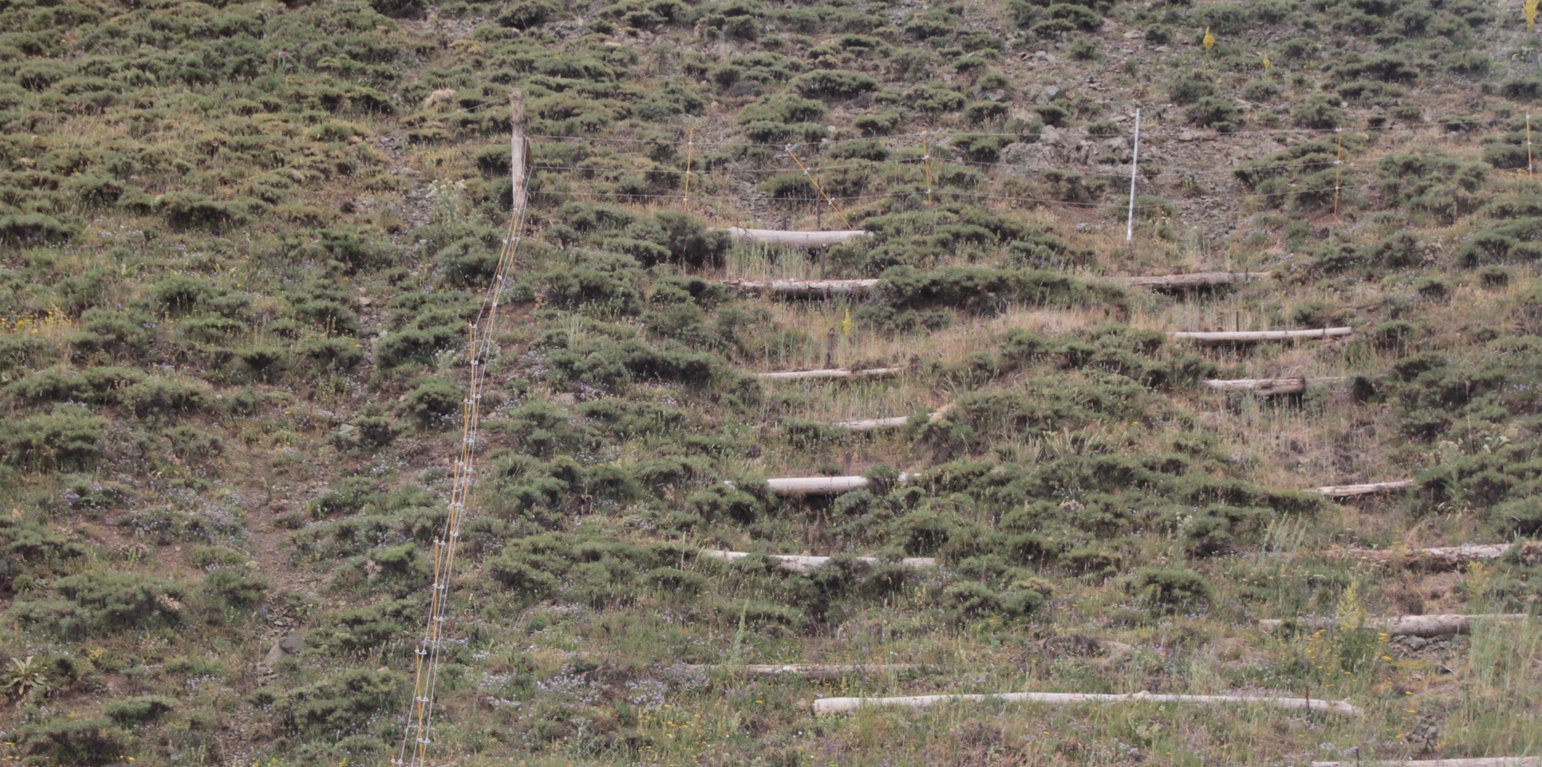

Bioengineering site Geghadyor after the technology was implied (Michael Huber)

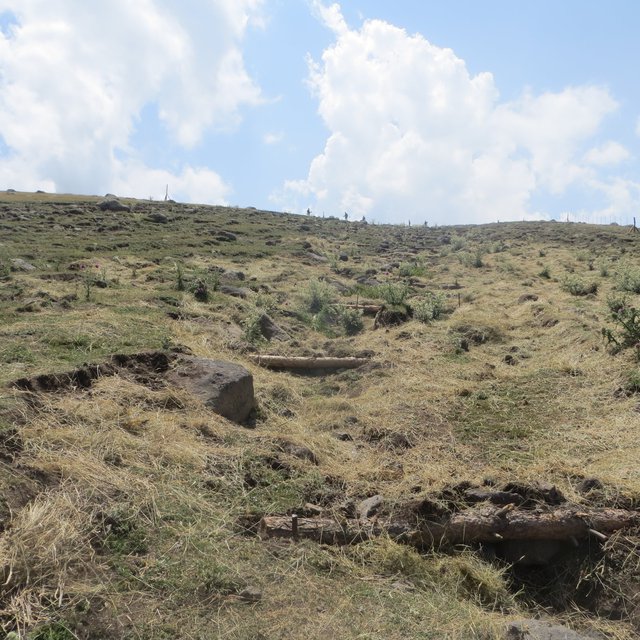

Bioengineering site Geghadyor before the technology was implied (Michael Huber)
គោលបំណងចម្បងៗ
-
ធ្វើឱ្យប្រសើរឡើងនូវផលិតកម្ម
-
កាត់បន្ថយ, បង្ការ, ស្តារឡើងវិញនូវការធ្លាក់ចុះគុណភាពដី
-
អភិរក្សប្រព័ន្ធអេកូឡូស៊ី
-
ការពារតំបន់ទីជម្រាល/តំបន់ខ្សែទឹកខាងក្រោមបញ្ចូលជាមួយបច្ចេកទេសផ្សេងទៀត
-
អភិរក្ស/ធ្វើឱ្យប្រសើរឡើងជីវចម្រុះ
-
កាត់បន្ថយហានិភ័យនៃគ្រោះមហន្តរាយ
-
បន្ស៊ាំទៅនឹងការប្រែប្រួលអាកាសធាតុ/គ្រោះមហន្តរាយ និងផលប៉ះពាល់របស់វា
-
កាត់បន្ថយការប្រែប្រួលអាកាសធាតុ និងផលប៉ះពាល់របស់វា
-
បង្កើតផលប្រយោជន៍សេដ្ឋកិច្ច
-
បង្កើតផលប្រយោជន៍សង្គម
ការប្រើប្រាស់ដី
-
ដីសម្រាប់ចិញ្ចឹមសត្វ - ដីវាលស្មៅធំៗ: ពាក់កណ្តាលពនេចរ
ប្រភេទសត្វ និងផលិតផលចម្បងៗ: cattle (and sheep)
ការផ្គត់ផ្គង់ទឹក
-
ទឹកភ្លៀង
-
ទឹកភ្លៀង និងប្រព័ន្ធស្រោចស្រព
-
ប្រព័ន្ធស្រោចស្រពទាំងស្រុង
ចំនួនរដូវដាំដុះក្នុងមួយឆ្នាំ:
1
ការប្រើប្រាស់ដីមុនពេលអនុវត្តបច្ចេកទេស:
មិនមាន
ដង់ស៊ីតេនៃសត្វចិញ្ចឹម:
0.89-1.30 pasture load/ha
គោលបំណងទាក់ទងនឹងការធ្លាក់ចុះគុណភាពដី
-
ការការពារការធ្លាក់ចុះគុណភាពដី
-
ការកាត់បន្ថយការធ្លាក់ចុះគុណភាពដី
-
ការជួសជុល/ ស្តារឡើងវិញនៃឱនភាពដីធ្ងន់ធ្ងរ
-
ការបន្ស៊ាំទៅនឹងការធ្លាក់ចុះគុណភាពដី
-
ដែលមិនអាចអនុវត្តបាន
ប្រភេទនៃការធ្លាក់ចុះគុណភាពដីដែលបានដោះស្រាយ
-
ការហូរច្រោះដីដោយសារទឹក - Wt: ការបាត់ដីស្រទាប់លើដោយការហូរច្រោះ, Wg: ការកកើតឡើងនូវកំទេចកំទីដីស្រទាប់ក្រោម, Wm: ការបាក់ដី
-
ការបាត់ដីដោយសារខ្យល់ - Et: ការបាត់បង់ដីស្រទាប់លើ
-
ការបាត់បង់រូបសាស្ត្រនៃដី - Pc: ការហាប់ណែន
-
ការធ្លាក់ចុះជីវសាស្ត្រនៃដី - Bc: ការថយចុះនូវគម្របរុក្ខជាតិ
ក្រុម SLM
-
កសិរុក្ខកម្ម (pastoralism) និងការគ្រប់គ្រងដីសម្រាប់ចិញ្ចឹមសត្វ
-
ធ្វើឱ្យប្រសើរឡើងគម្របដី/ ដំណាំគម្របដី
-
កាត់បន្ថយការរំខានដល់ដី
វិធានការ SLM
-
វិធានការរុក្ខជាតិ - V1: ឈើធំៗ និងដើមឈើតូចៗ , V2: ស្មៅនិងរុក្ខជាតិៗដែលដុះមានអាយុមិនលើសពី 2ឆ្នាំ
-
វិធានការរចនាស័ម្ពន្ធ - S1: ការធ្វើដីថ្នាក់ៗតាមជម្រាលភ្នំ
| | | | | | | | | | | |

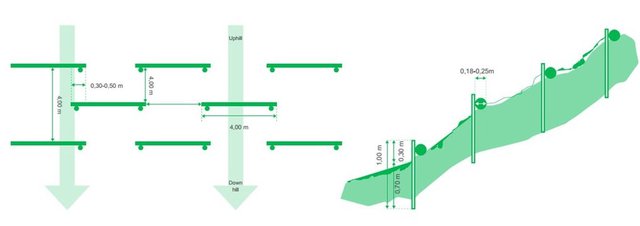

គំនូរបច្ចេកទេស
លក្ខណៈបច្ចេកទេស
អ្នកនិពន្ធ: GIZ IBiS

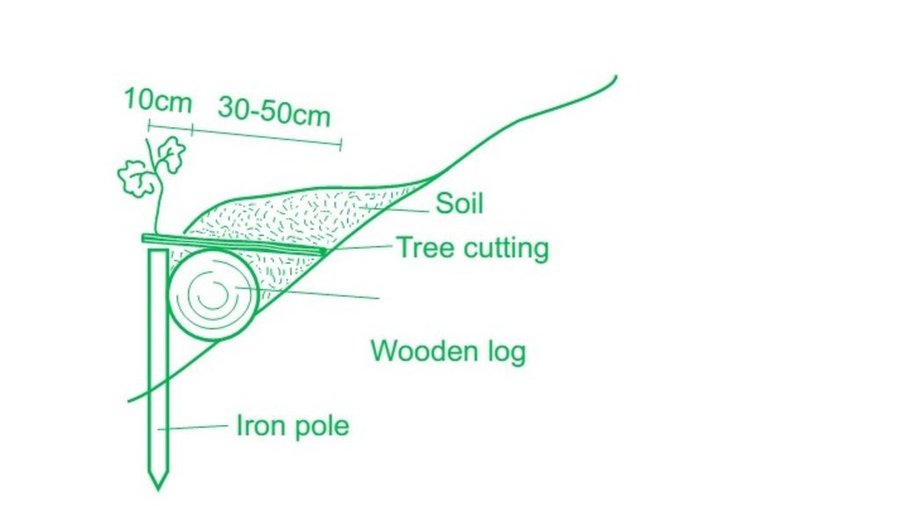

Required materials for 1 pile wall: - 2 iron poles (0.7-1m) and a hammer - 1 wooden log (ca. 4 m, 20-25cm diameter) - 10-20 shrub cuttings (e.g. Salix species)
Selection of appropriate sites for pile walls (where and how to put them): The logs are being spread on the slope as indictated in the scheme of the figure. The steeper the slope the narrower the vertical spacing in between (max. 4m, min. 1-2 m). On uneven slopes, place the along the depressions as these are the areas where water-run off is strongest. Parts which show no erosion signs can be left out to not destroy existing vegetation cover. The location of the pile walls is determined by the slope and serves to stabilize the slope at superficial level (10-30 cm). It landslides occur that involve deeper soil layers, this technology is not efficient.
Building process: After placing the logs, those are fixed with two irons at the end (alternatively wooden posts can be used as well). After fixing the logs, the space behind needs to be filled (slight terracing of the slope). Additionally, either shrub seedlings or living cuttings from species such as willows (ca. 50cm long, 2-5cm diameter) should be integrated. Finally, the open soil should be covered by a layer of 2-5 cm of hay/grass containing seeds and eventually additional seeds (from local species) to promote the re-establishment of vegetation. This has also the benefit that this cover keep humidity in the soil, which is particularly important in (semi-)arid areas.
Species used/density: At least 20 cuttings per pile wall should be planted. Depending on the survival rates, it can be also more. Shrubs additionally stabilize the slope and are to some extent protected by the pile wall.
|
| | | | | | | | | | | |
អ្នកនិពន្ធ: GIZ IBiS
|
ការបង្កើតនិងការថែទាំ៖ សកម្មភាព ធាតុចូល និងថ្លៃដើម
ការគណនាធាតុចូល និងថ្លៃដើម
- ថ្លៃដើមត្រូវបានគណនា៖ ក្នុងតំបន់អនុវត្តបច្ចេកទេស (ទំហំ និងឯកត្តាផ្ទៃដី៖ 0.15 ha)
- រូបិយប័ណ្ណសម្រាប់ការគណនាថ្លៃដើម៖ ដុល្លារអាមេរិក
- អត្រាប្តូរប្រាក់ (ទៅជាដុល្លារអាមេរិក)៖ 1 USD = មិនមាន
- ថ្លៃឈ្នួលជាមធ្យមក្នុង ១ ថ្ងៃ៖ ca. 20 USD per worker and day (unskilled local workers), 120 USD per day (local expert)
កត្តាសំខាន់បំផុតដែលមានឥទ្ធិពលលើថ្លៃដើម
Grazing (if fencing is needed it is the most costly part)
Wooden logs (if bought). This can be turned to zero by either using local wood (if permitted) or bundles of branches of specific species (e.g. willows).
សកម្មភាពបង្កើតបច្ចេកទេស
-
Selection of eroded sites and size (ពេលវេលា/ ភាពញឹកញាប់: anytime)
-
Clarification of land user rights (ពេលវេលា/ ភាពញឹកញាប់: anytime)
-
Calculate amount of logs and irons needed (ពេលវេលា/ ភាពញឹកញាប់: anytime)
-
Materials check: Local materials and procurement of other materials (ពេលវេលា/ ភាពញឹកញាប់: anytime)
-
Place logs on the eroded slope (favor depressions where water flows are) (ពេលវេលា/ ភាពញឹកញាប់: anytime (best in spring and autumn))
-
Fix logs with two iron poles at both sides of the log (ពេលវេលា/ ភាពញឹកញាប់: anytime (best in spring and autumn))
-
Fill the space behind the log with soil, rocks and (willow) cuttings (ពេលវេលា/ ភាពញឹកញាប់: early spring or late autumn (willow cuttings without leaves))
-
Flatten the area behind the log (small terracing) (ពេលវេលា/ ភាពញឹកញាប់: anytime (best in spring and autumn))
-
Use additional hay/grass mulch to cover open soil and add additional seeds (ពេលវេលា/ ភាពញឹកញាប់: best in spring (alternatively in late autumn))
-
If it is grazing area: Fence the area for at least 2-3 vegetation periods (ពេលវេលា/ ភាពញឹកញាប់: during grazing period)
ធាតុចូល និងថ្លៃដើមសម្រាប់ការបង្កើតបច្ចេកទេស
បញ្ជាក់ពីធាតុចូល |
ឯកតា |
បរិមាណ |
ថ្លៃដើមក្នុងមួយឯកតា (ដុល្លារអាមេរិក) |
ថ្លៃធាតុចូលសរុប (ដុល្លារអាមេរិក) |
% នៃថ្លៃដើមដែលចំណាយដោយអ្នកប្រើប្រាស់ដី |
កម្លាំងពលកម្ម
|
Unskilled worker: Implementation of field measures |
person days |
30,0 |
21,0 |
630,0 |
10,0 |
Skilled expert (Implementation supervision and project management |
person days |
14,0 |
120,0 |
1680,0 |
|
Transportation costs (truck, experts) |
rental days |
12,0 |
54,0 |
648,0 |
10,0 |
Administration costs |
month |
1,0 |
127,0 |
127,0 |
|
សម្ភារៈ
|
Consumables |
set |
1,0 |
59,0 |
59,0 |
10,0 |
Electric tools |
set |
1,0 |
424,0 |
424,0 |
10,0 |
P3800 Fence energizer + Box and equipment |
set |
1,0 |
345,0 |
345,0 |
|
Solar Panel for fence energizer |
piece |
1,0 |
233,0 |
233,0 |
|
Battery and fence tester |
piece |
1,0 |
203,0 |
203,0 |
|
សម្ភារៈដាំដុះ
|
Cuttings (20 per pile wall) (not used as it is being grazed) |
pieces |
|
|
|
|
Hay/grass for mulch cover (Bales ca.20kg) |
kg |
800,0 |
0,08 |
64,0 |
|
សម្ភារៈសាងសង់
|
Wooden logs (3m, 20cm diameter) |
pieces |
50,0 |
17,0 |
850,0 |
|
Iron poles (0.7-1m, 10 mm diameter) |
pieces |
150,0 |
2,1 |
315,0 |
|
Electric Fence Polywire |
m |
1300,0 |
0,3 |
390,0 |
|
Electric Fence Corner donut insulator |
pieces |
27,0 |
1,0 |
27,0 |
|
Earth stakes |
pieces |
3,0 |
22,0 |
66,0 |
|
Electric Fence Spring Gate Set |
piece |
1,0 |
42,0 |
42,0 |
|
Wooden Posts |
pieces |
9,0 |
6,4 |
57,6 |
20,0 |
ថ្លៃដើមសរុបក្នុងការបង្កើតបច្ចេកទេស |
6'160.6 |
|
សកម្មភាពថែទាំ
-
Regular check of fence (ពេលវេលា/ ភាពញឹកញាប់: Once per two weeks)
-
Installation and deinstallation of electric fence (ពេលវេលា/ ភាពញឹកញាប់: Once per year)
-
Changing the broken posts (ពេលវេលា/ ភាពញឹកញាប់: once per year)
-
Optional refill of stones and/or soil if washed out (ពេលវេលា/ ភាពញឹកញាប់: twice per year)
ធាតុចូលនិងថ្លៃដើមសម្រាប់ការថែទាំ
បញ្ជាក់ពីធាតុចូល |
ឯកតា |
បរិមាណ |
ថ្លៃដើមក្នុងមួយឯកតា (ដុល្លារអាមេរិក) |
ថ្លៃធាតុចូលសរុប (ដុល្លារអាមេរិក) |
% នៃថ្លៃដើមដែលចំណាយដោយអ្នកប្រើប្រាស់ដី |
កម្លាំងពលកម្ម
|
Regular check of fence |
workdays |
8,0 |
21,0 |
168,0 |
100,0 |
Installation and deinstallation of electric fence |
workdays |
8,0 |
21,0 |
168,0 |
100,0 |
Changing the broken posts |
workdays |
1,0 |
21,0 |
21,0 |
100,0 |
Optional refill of stones and/or soil if washed out |
workdays |
3,0 |
21,0 |
63,0 |
100,0 |
ថ្លៃដើមសរុបសម្រាប់ការថែទាំដំណាំតាមបច្ចេកទេស |
420.0 |
|
បរិស្ថានធម្មជាតិ
បរិមាណទឹកភ្លៀងជាមធ្យមប្រចាំឆ្នាំ
-
< 250 មម
-
251-500 មម
-
501-750 មម
-
751-1,000 មម
-
1,001-1,500 មម
-
1,501-2,000 មម
-
2,001-3,000 មម
-
3,001-4,000 មម
-
> 4,000 មម
តំបន់កសិអាកាសធាតុ
-
សើម
-
មានភ្លៀងមធ្យម
-
មានភ្លៀងតិចតួច
-
ស្ងួត
លក្ខណៈសម្គាល់នៃអាកាសធាតុ
បរិមាណទឹកភ្លៀងជាមធ្យមប្រចាំឆ្នាំគិតជា មម៖ 521.0
In Aparan, the climate is cold and temperate. Aparan has a significant amount of rainfall during the year. This is true even for the driest month. Precipitation peaks are in May and June.
ស្ថានីយឧតុនិយម៖ Aparan, Aragatsotn Marz, Armenia
According to Köppen and Geiger, the climate is classified as Dfb (Cold/continental, no dry season, warm summers). Annual mean temperature is 5.2. °C. The warmest month of the year is August, with an average temperature of 16.4 °C. January has the lowest average temperature of the year with -6.9 °C.
ជម្រាល
-
រាបស្មើ (0-2%)
-
ជម្រាលតិចតួច (3-5%)
-
មធ្យម (6-10%)
-
ជម្រាលខ្ពស់បន្តិច (11-15%)
-
ទីទួល (16-30%)
-
ទីទួលចោត (31-60%)
-
ទីទួលចោតខ្លាំង (>60%)
ទម្រង់ដី
-
ខ្ពង់រាប
-
កំពូលភ្នំ
-
ជម្រាលភ្នំ
-
ជម្រាលទួល
-
ជម្រាលជើងភ្នំ
-
បាតជ្រលងភ្នំ
រយៈកម្ពស់ធៀបនឹងនីវ៉ូទឹកសមុទ្រ
-
0-100 ម
-
101-500 ម
-
501-1,000 ម
-
1,001-1,500 ម
-
1,501-2,000 ម
-
2,001-2,500 ម
-
2,501-3,000 ម
-
3,001-4,000 ម
-
> 4,000 ម
បច្ចេកទេសត្រូវបានអនុវត្តនៅក្នុង
-
សណ្ឋានដីប៉ោង
-
សណ្ឋានដីផត
-
មិនពាក់ព័ន្ធទាំងអស់
ជម្រៅដី
-
រាក់ខ្លាំង (0-20 សម)
-
រាក់ (21-50 សម)
-
មធ្យម (51-80 សម)
-
ជ្រៅ (81-120 សម)
-
ជ្រៅខ្លាំង (> 120 សម)
វាយនៈភាពដី (ដីស្រទាប់ខាងលើ)
-
គ្រើម/ មានពន្លឺ (ខ្សាច់)
-
មធ្យម (ល្បាយ, ល្បាប់)
-
ម៉ត់/ ធ្ងន់ (ឥដ្ឋ)
វាយនភាពដី (> 20 សម ក្រោមស្រទាប់លើ)
-
គ្រើម/ មានពន្លឺ (ខ្សាច់)
-
មធ្យម (ល្បាយ, ល្បាប់)
-
ម៉ត់/ ធ្ងន់ (ឥដ្ឋ)
កម្រិតសារធាតុសរីរាង្គក្នុងដីស្រទាប់លើ
-
ខ្ពស់ (>3%)
-
មធ្យម (1-3%)
-
ទាប (<1%)
ដង្ហើមទឹកក្នុងដី
-
ផ្ទៃខាងលើ
-
< 5 ម
-
5-50 ម
-
> 50 ម
ភាពអាចរកបាននៃទឹកលើដី
-
លើស
-
ល្អ
-
កម្រិតមធ្យម
-
មិនមាន/ គ្មាន
គុណភាពទឹក (មិនបានធ្វើប្រព្រឹត្តិកម្ម)
-
ទឹកពិសារដែលមានគុណភាពល្អ
-
ទឹកពិសារដែលគ្មានគុណភាព (តម្រូវឱ្យមានការសំអាត)
-
ទឹកសម្រាប់តែការធ្វើកសិកម្ម (ស្រោចស្រព)
-
ទឹកមិនអាចប្រើប្រាស់បាន
តើមានបញ្ហាទឹកប្រៃហូរចូលដែរឬទេ?
ការកើតឡើងនៃទឹកជំនន់
ភាពសំបូរបែបនៃជម្រកធម្មជាតិ
ចរិតលក្ខណៈរបស់អ្នកប្រើប្រាស់ដីដែលប្រើបច្ចេកទេស SLM
ទីផ្សារ
-
សម្រាប់ហូបក្នុងគ្រួសារ (ផ្គត់ផ្គង់ខ្លួនឯង)
-
ពាក់កណ្តាលពាណិជ្ជកម្ម (ផ្គត់ផ្គង់ខ្លួនឯង/ ពាណិជ្ជកម្ម
-
ពាណិជ្ជកម្ម/ ទីផ្សារ
ចំណូលក្រៅកសិដ្ឋាន
-
តិចជាង 10% នៃចំណូល
-
10-50% នៃចំណូល
-
ច្រើនជាង 50% នៃចំណូល
កម្រិតជីវភាព
-
មិនល្អខ្លាំង
-
មិនល្អ
-
មធ្យម
-
មាន
-
មានខ្លាំង
កម្រិតនៃការប្រើគ្រឿងយន្ត
-
ប្រើកម្លាំងពលកម្ម
-
ប្រើកម្លាំងសត្វ
-
គ្រឿងយន្ត/ ម៉ាស៊ីន
នៅមួយកន្លែង ឬពនេចរ
-
នៅមួយកន្លែង
-
ពាក់កណ្តាលពនេចរ
-
ពនេចរ
បុគ្គល ឬក្រុម
-
ធ្វើខ្លួនឯង/ គ្រួសារ
-
ជាក្រុម/ សហគមន៍
-
សហករ
-
មានបុគ្គលិក (ក្រុមហ៊ុន, រដ្ឋ)
អាយុ
-
កុមារ
-
យុវវ័យ
-
វ័យកណ្តាល
-
មនុស្សចាស់
ផ្ទៃដីប្រើប្រាស់ក្នុងមួយគ្រួសារ
-
< 0.5 ហិកតា
-
0.5-1 ហិកតា
-
1-2 ហិកតា
-
2-5 ហិកតា
-
5-15 ហិកតា
-
15-50 ហិកតា
-
50-100 ហិកតា
-
100-500 ហិកតា
-
500-1,000 ហិកតា
-
1,000-10,000 ហិកតា
-
> 10,000 ហិកតា
មាត្រដ្ឋាន
-
ខ្នាតតូច
-
ខ្នាតមធ្យម
-
ខ្នាតធំ
ភាពជាម្ចាស់ដីធ្លី
-
រដ្ឋ
-
ក្រុមហ៊ុន
-
ភូមិ
-
ក្រុម
-
ឯកជន មិនមានកម្មសិទ្ធ
-
ឯកជន មានកម្មសិទ្ធ
សិទ្ធិប្រើប្រាស់ដី
-
អាស្រ័យផលសេរី (មិនមានការកំណត់)
-
ជាក្រុម (មានដែនកំណត់)
-
កិច្ចសន្យាជួល
-
ឯកជន
សិទ្ធិប្រើប្រាស់ទឹក
-
អាស្រ័យផលសេរី (មិនមានការកំណត់)
-
ជាក្រុម (មានដែនកំណត់)
-
កិច្ចសន្យាជួល
-
ឯកជន
ប្រើប្រាស់សេវាកម្ម និងហេដ្ឋារចនាសម្ព័ន្ធ
ការងារ (ឧ. ការងារក្រៅកសិដ្ឋាន)
ផលប៉ះពាល់
ផលប៉ះពាល់សេដ្ឋកិច្ចសង្គម
គុណភាពចំណីសត្វ
The erosion control masures stopped top soil Erosion and Gully Erosion in the pasture land.
បន្ទុកការងារ
The workload for implementing the measures does not pay off within the first view years but is a long term investment in saving soil productivity.
ផលប៉ះពាល់វប្បធម៌សង្គម
ចំណេះដឹង SLM / ការធ្លាក់ចុះគុណភាពដី
The intervention raised awareness to soil erosion and new technologies have been trained to village stakeholders (pile walls, electric fencing)
ផលប៉ះពាល់លើអេកូឡូស៊ី
បរិមាណទឹក
Water run off is decreased and soil moister is increase by better infiltration of water into the soil.
រំហួត
The increase of vegetation leads to an increase of evaporation-transpiration.
សំណើមដី
Water run off is decreased by pile walls and better vegetation cover and soil moister is increase by better infiltration of water into the soil.
ការបាត់បង់ដី
Decrease of water run off by pile walls and increased vegetation cover leads to decrease of soil loss.
សារធាតុសរីរាង្គដី/ការបូនក្រោមដី
Increase of vegetation leads to more root activity and humus increase by increase of litter.
ដំណាំគម្របដី
The stop of grazing and trampling by the fence leads to fast increase of vegetation cover.
ជីវម៉ាស/ កាបូនលើដី
The stop of grazing leads to significant increase of above ground biomass.
ភាពសម្បូរបែបនៃរុក្ខជាតិ
On heavily eroded sites the measure lead to increase of plant species.
ហានិភ័យនៃភ្លើងឆេះព្រៃ
The increase of above soil biomass increase the risk of grass-fire in autumn during or after the dry season.
ផលប៉ះពាល់ក្នុងបរិវេណ
សមត្ថភាពចម្រោះ (ដោយដី ដំណាំ ដីសើម)
through increased vegetation cover and reduced speed of superficial water-runoff and increase of water capacity of the slope above the village.
ខ្យល់នាំយកនូវធូរលី
partially improved through increased vegetation cover and less open soil
ការវិភាគថ្លៃដើម និងអត្ថប្រយោជន៍
អត្ថប្រយោជន៍បើប្រៀបធៀបនឹងថ្លៃដើមក្នុងការបង្កើតបច្ចេកទេស
រយៈពេលខ្លី
អវិជ្ជមានខ្លាំង
វិជ្ជមានខ្លាំង
រយៈពេលវែង
អវិជ្ជមានខ្លាំង
វិជ្ជមានខ្លាំង
អត្ថប្រយោជន៍បើប្រៀបធៀបនឹងថ្លៃដើមក្នុងការថែទាំបច្ចេកទេស
រយៈពេលខ្លី
អវិជ្ជមានខ្លាំង
វិជ្ជមានខ្លាំង
រយៈពេលវែង
អវិជ្ជមានខ្លាំង
វិជ្ជមានខ្លាំង
ការប្រែប្រួលអាកាសធាតុ
ការប្រែប្រួលអាកាសធាតុ
សីតុណ្ហភាពប្រចាំឆ្នាំ កើនឡើង
សីតុណ្ហភាពប្រចាំរដូវកាល កើនឡើង
សីតុណ្ហភាពប្រចាំរដូវកាល កើនឡើង
បរិមាណទឹកភ្លៀងប្រចាំឆ្នាំ ថយចុះ
បរិមាណទឹកភ្លៀងប្រចាំរដូវកាល កើនឡើង
បរិមាណទឹកភ្លៀងប្រចាំរដូវកាល កើនឡើង
បរិមាណទឹកភ្លៀងប្រចាំរដូវកាល ថយចុះ
បរិមាណទឹកភ្លៀងប្រចាំរដូវកាល ថយចុះ
គ្រោះអាកាសធាតុ (មហន្តរាយ)
ការទទួលយក និងការបន្ស៊ាំ
ភាគរយនៃអ្នកប្រើប្រាស់ដីនៅតំបន់ដែលបានទទួលយកបច្ចេកទេស
-
តែមួយករណី /ពិសោធន៍
-
1-10%
-
10-50%
-
ច្រើនជាង 50%
ក្នុងចំណោមអ្នកទទួលយកបច្ចេកទេសនេះ តើមានប៉ុន្មានភាគរយដែលបានអនុវត្តន៍ដោយមិនបានទទួលការលើកទឹកចិត្តជាសម្ភារៈ?
-
0-10%
-
10-50%
-
50-90%
-
90-100%
ចំនួនខ្នងផ្ទះ និង/ឬតំបន់ដែលគ្របដណ្តប់
There are interested households who want to adopt the technology, but indeed there is nobody who implemeted the technology by himself/herself.
តើថ្មីៗនេះ បច្ចេកទេសនេះត្រូវបានកែតម្រូវដើម្បីបន្ស៊ាំទៅនឹងស្ថានភាពប្រែប្រួលដែរឬទេ?
ចំពោះលក្ខខណ្ឌប្រែប្រួលណាមួយដែលត្រូវបានបន្ស៊ាំ?
-
ការប្រែប្រួលអាកាសធាតុ/គ្រោះមហន្តរាយធម្មជាតិ
-
បម្រែបម្រួលទីផ្សារ
-
កម្លាំងពលកម្មដែលអាចរកបាន (ចំណាកស្រុក)
Due to unavailablity of local seeds, local hay/grass was used to provide mulching cover and add locally adapted seeds
On one site an additional drainage trench was prepared as the soil was very compacted and vegetation cover was completely destroyed. The trench was filled with rocks which are available in abundance.
សេក្តីសន្និដ្ឋាន និងមេរៀនបទពិសោធន៍
ភាពខ្លាំង: ទស្សនៈអ្នកប្រើប្រាស់ដី
-
Improvement of road of animals, improvement of quality of pasture and vegetation cover, overcome of erosion, regulation of water flow, better view of the area, dissemination of seeds to other areas
ភាពខ្លាំង: ទស្សនៈរបស់អ្នកចងក្រង ឬបុគ្គលសំខាន់ផ្សេងទៀត
-
Technology is easy to apply and works mostly with local materials and requires no specific knowledge. Materials can be adapted (e.g. if timber is scarce, bundles of willow branches can be used as alternative)
-
Technology is able to stabilize superficial erosion processes and support recovery of vegetation on steep slopes. It can also stop small rock falls.
-
Technology can also be adapted to fortify/stabilize paths and cattle paths on slopes (e.g. when a walking path is crossing a small gully section). Thus, it can also stop erosion processes caused by trampling or hikers
ចំណុចខ្សោយ/ គុណវិបត្តិ/ ហានិភ័យ : ទស្សនៈអ្នកប្រើប្រាស់ដីវិធីដោះស្រាយ
-
Limited availability of material such as electric fence, solar panels, etc in the local market
At the moment they can be imported
-
relatively high cost for material
Using cheap and local material
-
Limitation of cattle road
Use other alternative road for animals
ចំណុចខ្សោយ/ គុណវិបត្តិ/ ហានិភ័យ : ទស្សនៈរបស់អ្នកចងក្រង ឬបុគ្គលសំខាន់ផ្សេងទៀតវិធីដោះស្រាយ
-
If not installed properly, water flows on the sides of the pile walls and below and the barrier becomes ineffective
Take care during construction that the space below the logs is filled appropriately.
Take care of appropriate re-establishment of a vegetation cover
-
If area is being grazed, it is challenging to re-establish vegetation. Cuttings which further stabilize the slope are unlikely to succeed.
Temporary fencing of the area or
permanent fencing and use of area for hay making
ឯកសារយោង
កាលបរិច្ឆេទនៃការអនុវត្ត: 1 ខែ តុលា ឆ្នាំ 2018
កែតម្រូវចុងក្រោយ: 21 ខែ មិនា ឆ្នាំ 2019
បុគ្គលសំខាន់ៗ
-
Aghasi Mnatsyan (aghasi.mnatsyan@giz.de) - អ្នកជំនាញឯកទេស SLM
-
Hrant Khachatryan (hkhachatryan84@gmail.com) - អ្នកជំនាញឯកទេស SLM
-
Michael Huber (huber@e-c-o.at) - អ្នកជំនាញឯកទេស SLM
ការពណ៌នាលម្អិតក្នុងប្រព័ន្ធគ្រប់គ្រងទិន្នន័យរបស់វ៉ូខេត
ឯកសារនេះត្រូវបានសម្របសម្រួលដោយ
ស្ថាប័ន៖
- Deutsche Gesellschaft für Internationale Zusammenarbeit (GIZ)
គម្រោង
- Integrated Biodiversity Management, South Caucasus (IBiS)
ឯកសារយោងសំខាន់ៗ
-
Handbook on Integrated Erosion Control A Practical Guide for Planning and Implementing Integrated Erosion Control Measures in Armenia, GIZ (ed.), 2018, ISBN 978-9939-1-0722-6: GIZ Armenia
ការភ្ជាប់ទៅកាន់ពត៌មានពាក់ព័ន្ធលើប្រព័ន្ធអនឡាញ
