Irrigation branch canals: farmers' adapted design (-)

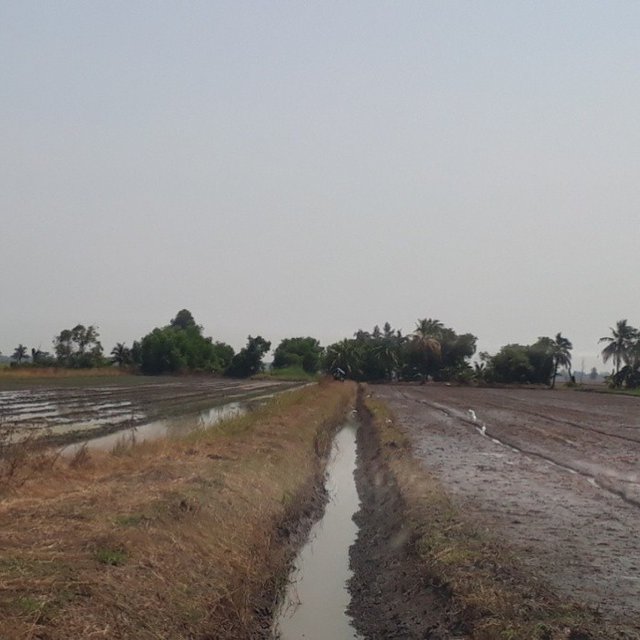

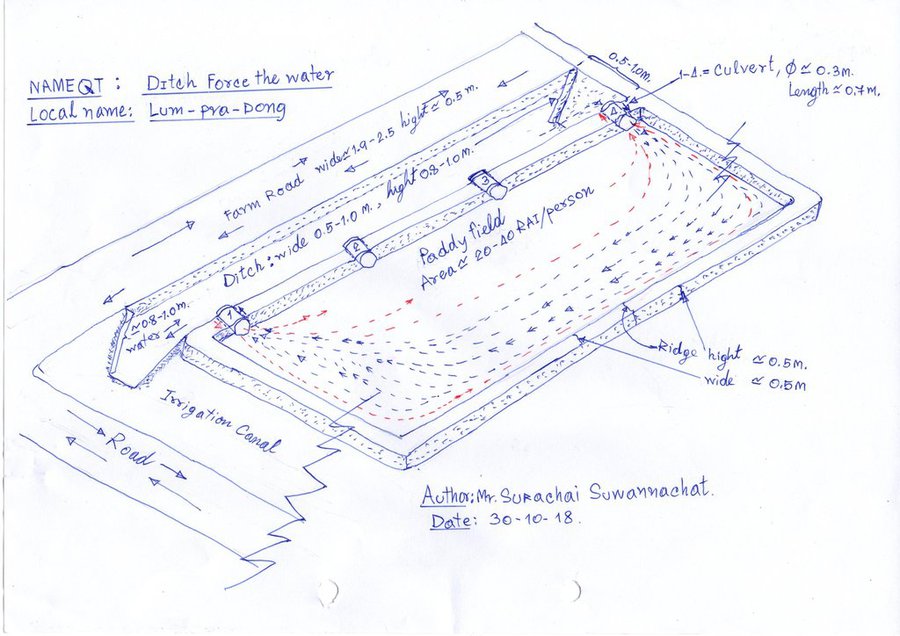

Establishing the system of water drainage ditches - Lampradong Rongnam (irrigation branch canals) is the technology developed from struggling in managing water and soil for farming before 1993. Learning to modify the system was derived from using the labor required to move pumps and equipment to pump water at various locations. This created an exhausting and time-consuming task. Moreover, land could not be developed and the water could not be controlled as required either. Therefore, setting up a system of irrigation branch canals arose from this. The system was then designed to counter acidity and neutralized it from the soil. As a result, rice could be grown, giving a good yield. At the same time, water could be controlled in rice farming throughout. To set up a ditch-branch watercourse comprises ditches of 50-100 centimetres wide, and 100 centimetres deep. Both sides of the ditch consist of ridges that can be modified -either side- to be a path to deliver materials and equipment in doing rice farming and productivity form the paddy. The path to convey materials is 1.9 -2.5 meters up, depending the objectives of the owner of the area. For the levee on the other side, it is 50-100 centimetres wide with a height of 50 centimetres. In the rice farming area of farmers in Ongkharak district, Nakhon Nayok province, there are paddy areas divided into plots. Each plot has an area of 3.2-6.4 hectares. The areas required to establish these canals are about 1,640-3,200 square meters. Farmers not only prefer this adapted technology but it also reduces labour in managing rice farming.
ສະຖານທີ່: Ongkharak district, Nakhon Nayok, ໄທ
ຈໍານວນ ພື້ນທີ່ ທີ່ໃຊ້ ເຕັກໂນໂລຢີ ທີ່ໄດ້ວິເຄາະ: 2-10 ພຶ້ນທີ່
ການແຜ່ກະຈາຍຂອງເຕັກໂນໂລຢີ:
ຢູ່ໃນເຂດປ່າສະຫງວນທີ່ບໍ?: ບໍ່ແມ່ນ
ວັນທີຂອງການປະຕິບັດ: 10-50 ປີ ຜ່ານມາ
ປະເພດຂອງການນໍາສະເໜີ
| ລະບຸ ປັດໃຈ ນໍາເຂົ້າ ໃນການຜະລີດ | ຫົວໜ່ວຍ | ປະລິມານ | ຕົ້ນທຶນ ຕໍ່ຫົວໜ່ວຍ (USA) | ຕົ້ນທຶນທັງໝົດ ຂອງປັດໃຈຂາເຂົ້າ ໃນການຜະລິດ (USA) | % ຂອງຕົ້ນທຶນທັງໝົດ ທີ່ຜູ້ນໍາໃຊ້ທີ່ດິນ ໃຊ້ຈ່າຍເອງ |
| ແຮງງານ | |||||
| Cost of drilling and the equipment of the water-delivery ditch | person-days | 1.0 | 183.0 | 183.0 | 100.0 |
| Cost of dredging once per 3-5 years, each time costs | person-days | 1.0 | 166.0 | 166.0 | 100.0 |
| ອຸປະກອນ | |||||
| oil used in harvesting | hectare | 1.0 | 3.5 | 3.5 | 100.0 |
| ວັດສະດຸໃນການປູກ | |||||
| sowing rice seeds | hectare | 1.0 | 0.6 | 0.6 | 100.0 |
| harvesting | hectare | 1.0 | 3.2 | 3.2 | 100.0 |
| transporting paddy | hectare | 1.0 | 1.25 | 1.25 | 100.0 |
| ຝຸ່ນ ແລະ ຢາຊີວະພາບ | |||||
| applying fertilizers | hectare | 1.0 | 0.625 | 0.63 | 100.0 |
| spraying chemicals | hectare | 1.0 | 3.4 | 3.4 | 100.0 |
| oil used in pumping water into the paddy | hectare | 1.0 | 0.15 | 0.15 | 100.0 |
| ວັດສະດຸກໍ່ສ້າງ | |||||
| plowing | hectare | 1.0 | 1.56 | 1.56 | 100.0 |
| pumping water in the paddy field | hectare | 1.0 | 0.15 | 0.15 | 100.0 |
| making soil become muddy | hectare | 1.0 | 0.156 | 0.16 | 100.0 |
| pumping water in | hectare | 1.0 | 0.15 | 0.15 | 100.0 |
| pumping water out | hectare | 1.0 | 0.15 | 0.15 | 100.0 |
| ຕົ້ນທຶນທັງໝົດ ໃນການຈັດຕັ້ງປະຕິບັດ ເຕັກໂນໂລຢີ | 363.9 | ||||
| ຄ່າໃຊ້ຈ່າຍທັງໝົດ ສຳລັບການສ້າງຕັ້ງເຕັກໂນໂລຢີ ເປັນສະກຸນເງີນໂດລາ | 363.9 | ||||
| ລະບຸ ປັດໃຈ ນໍາເຂົ້າ ໃນການຜະລີດ | ຫົວໜ່ວຍ | ປະລິມານ | ຕົ້ນທຶນ ຕໍ່ຫົວໜ່ວຍ (USA) | ຕົ້ນທຶນທັງໝົດ ຂອງປັດໃຈຂາເຂົ້າ ໃນການຜະລິດ (USA) | % ຂອງຕົ້ນທຶນທັງໝົດ ທີ່ຜູ້ນໍາໃຊ້ທີ່ດິນ ໃຊ້ຈ່າຍເອງ |
| ແຮງງານ | |||||
| Annual cost of maintenance | person-days | 1.0 | 33.0 | 33.0 | 100.0 |
| ຕົ້ນທຶນທັງໝົດ ທີ່ໃຊ້ໃນການບໍາລຸງຮັກສາ ເຕັກໂນໂລຢີ | 33.0 | ||||
| ຄ່າໃຊ້ຈ່າຍທັງໝົດ ສຳລັບການບົວລະບັດຮກສາເຕັກໂນໂລຢີ ເປັນສະກຸນເງີນໂດລາ | 33.0 | ||||
ປະລິມານ ກ່ອນການຈັດຕັ້ງປະຕິບັດ ການຄຸ້ມຄອງ ທີ່ດິນແບບຍືນຍົງ: 2.8 tons per ha
ປະລີມານ ຫຼັງການຈັດຕັ້ງປະຕິບັດ ການຄຸ້ມຄອງ ທີ່ດິນແບບຍືນຍົງ: 7.5 tons per ha
Reduced pumping required
