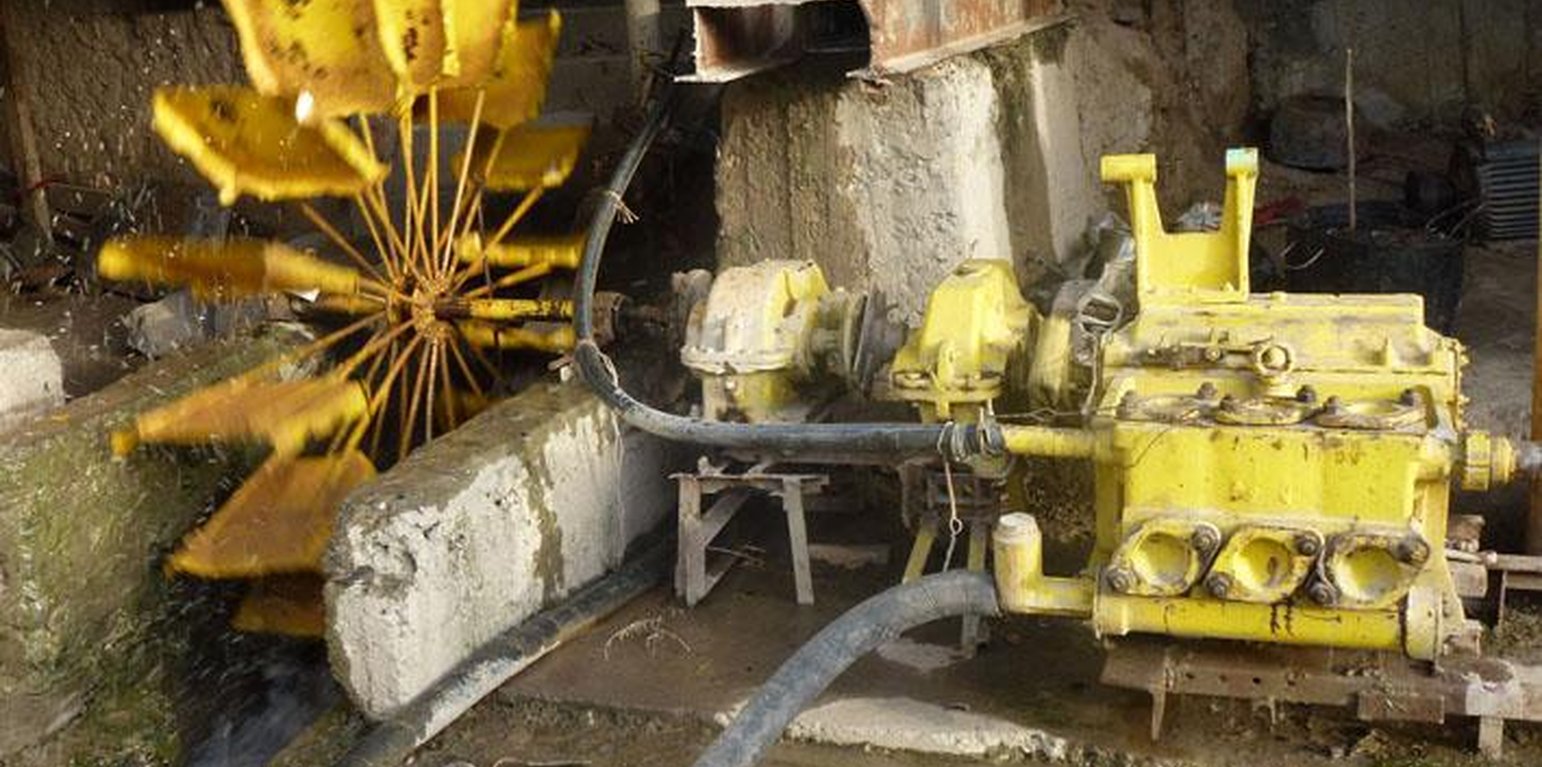

Photo shows the water wheel generating energy to power the water pump. The pump can operate to vertical height of 200m. (Sa'dy Odinashoev (Tajikistan, Muminabad))
After the end of the Soviet era the mass irrigation system fell into disrepair, and many of the orchard areas subsequently suffered from dehydration and production levels declined. The case study plot is situated on a steep slope of 50° with stone/sand soils with high filtration rates.
As the irrigation systems no longer worked, the orchard in the Penjikent area lost much productivity and became very dry. As the quality of the soil is very poor the trees need much irrigation. The farmer often resorted to using a bucket to irrigate the orchards.

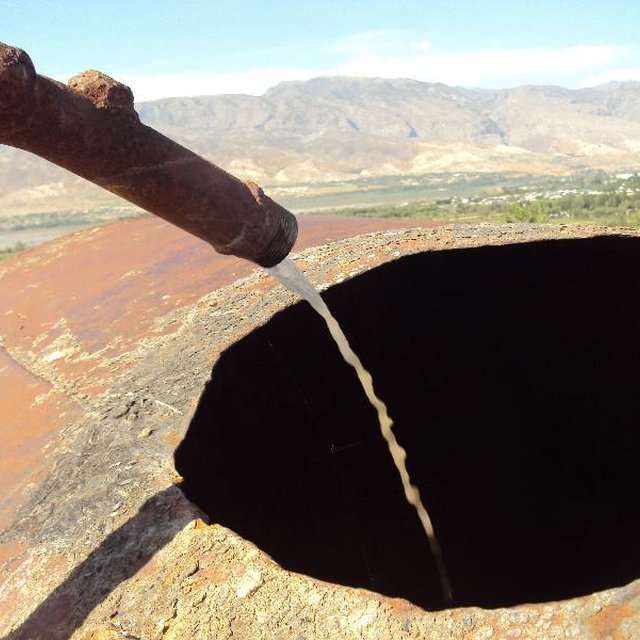

The land user developed a water powered pump using the flow from the existing river to pump water along a plastic pipe to the orchards. The pump can irrigate the orchard 200m above the river level. To help improve the process and regulate irrigation amount a large tank was installed in the orchard.
Purpose of the Technology: The purpose of the pump is to provide water 220m upslope to irrigate the orchards at minimal running costs, and not to be reliant on the often intermittent electricity supply.
Establishment / maintenance activities and inputs: The setting up the water wheel, pump, gear system, valves and piping system requires a certain level of technical knowledge. However, it is apparent that if you have a fast flowing river, water can be diverted to power a water wheel and a pump. Technical knowledge of the gearing will be required set up the ratios depending on the speed required for the water wheel.
Natural / human environment: In this area the very sandy soil, suffers from high infiltration rates and low water retention capacity. It is, therefore, unfavourable for growing any sort of water dependent crops. The water pump, albeit expensive in its initial financial expenditure does allow for irrigation of land, that would otherwise become increasingly denuded and degraded. The demise of the Soviet irrigation system means that the land users have had to invent and discover new innovative ways to irrigate the land.
ສະຖານທີ່: Penjakent, Toshminor, Sughd, ຕາຈິກິສະຕານ
ຈໍານວນ ພື້ນທີ່ ທີ່ໃຊ້ ເຕັກໂນໂລຢີ ທີ່ໄດ້ວິເຄາະ:
ການແຜ່ກະຈາຍຂອງເຕັກໂນໂລຢີ: ແຜ່ຂະຫຍາຍຢ່າງໄວວາໃນພື້ນທີ່ (approx. < 0.1 ກິໂລແມັດ2 (10 ເຮັກຕາ))
ຢູ່ໃນເຂດປ່າສະຫງວນທີ່ບໍ?:
ວັນທີຂອງການປະຕິບັດ: 10-50 ປີ ຜ່ານມາ
ປະເພດຂອງການນໍາສະເໜີ
| ລະບຸ ປັດໃຈ ນໍາເຂົ້າ ໃນການຜະລີດ | ຫົວໜ່ວຍ | ປະລິມານ | ຕົ້ນທຶນ ຕໍ່ຫົວໜ່ວຍ (USA) | ຕົ້ນທຶນທັງໝົດ ຂອງປັດໃຈຂາເຂົ້າ ໃນການຜະລິດ (USA) | % ຂອງຕົ້ນທຶນທັງໝົດ ທີ່ຜູ້ນໍາໃຊ້ທີ່ດິນ ໃຊ້ຈ່າຍເອງ |
| ແຮງງານ | |||||
| Construction of water pump | Persons/day | 20.0 | 5.55 | 111.0 | 100.0 |
| ວັດສະດຸກໍ່ສ້າງ | |||||
| Machine parts | for 1 pump | 1.0 | 50.0 | 50.0 | 100.0 |
| Welding rod | for 1 pump | 1.0 | 5.0 | 5.0 | 100.0 |
| Drilling pump | for 1 pump | 1.0 | 1200.0 | 1200.0 | 100.0 |
| Gear system | for 1 pump | 1.0 | 200.0 | 200.0 | 100.0 |
| Valve gates | for 1 pump | 1.0 | 25.0 | 25.0 | 100.0 |
| Stone | for 1 pump | 1.0 | 220.0 | 220.0 | 100.0 |
| Pipes | for 1 pump | 1.0 | 1035.0 | 1035.0 | 100.0 |
| Tank | for 1 pump | 1.0 | 500.0 | 500.0 | 100.0 |
| ຕົ້ນທຶນທັງໝົດ ໃນການຈັດຕັ້ງປະຕິບັດ ເຕັກໂນໂລຢີ | 3'346.0 | ||||
| ຄ່າໃຊ້ຈ່າຍທັງໝົດ ສຳລັບການສ້າງຕັ້ງເຕັກໂນໂລຢີ ເປັນສະກຸນເງີນໂດລາ | 3'346.0 | ||||
Timber and fruit production has increased on the irrigated land.
