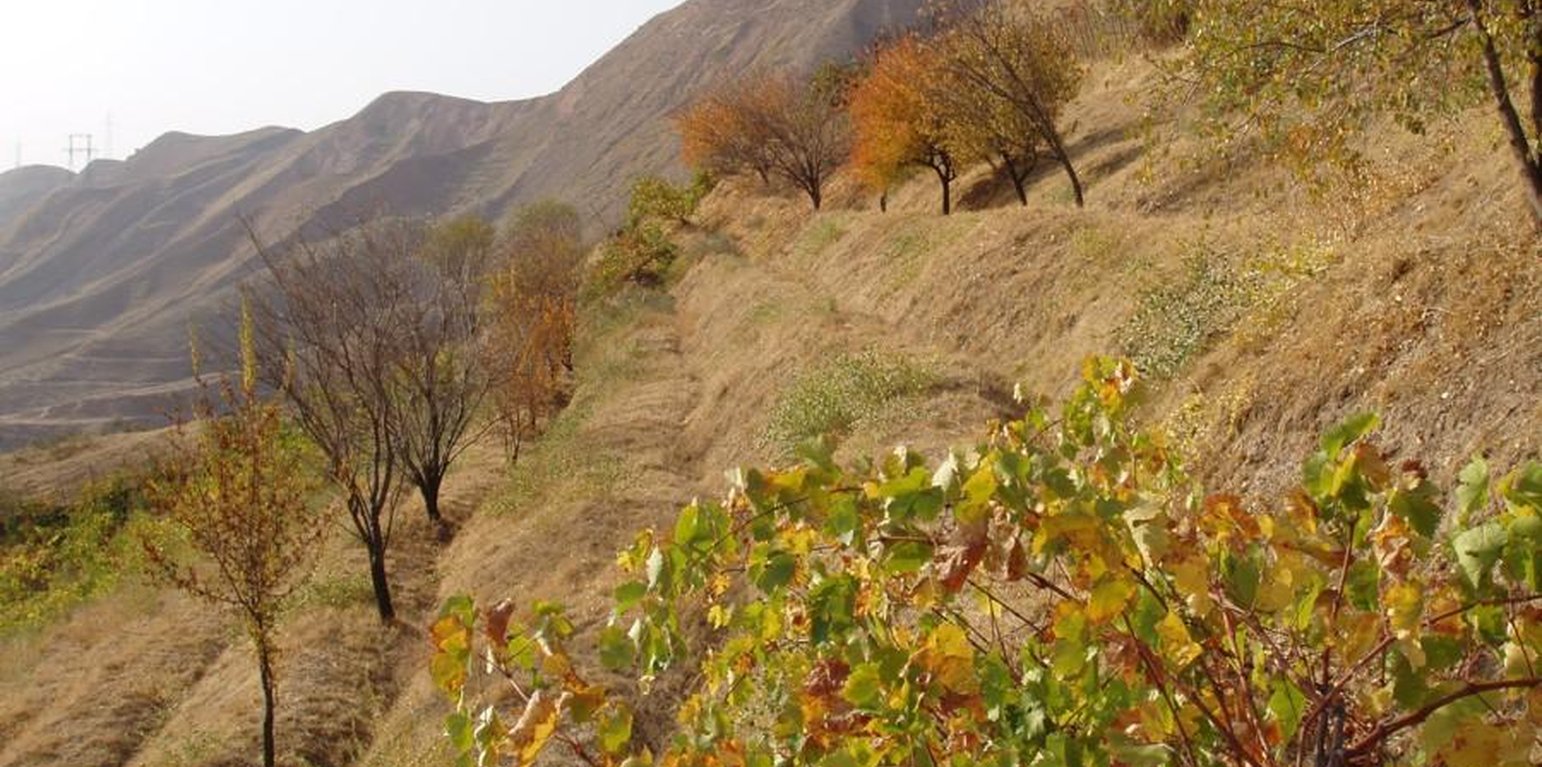

Narrow terraces, each with a water retention ditch, for fruit trees (note grape vine in the foreground). (Bettina Wolfgramm (Centre for Development and Environment (CDE), University of Bern))

Conversion of grazing land to fruit and fodder plots (Тажикистан)

Тодорхойлолт

Fencing part of an overgrazed hillside, combined with terracing, manuring and supplementary irrigation for grape, fruit and grass production.

In the Varzob valley of Tajikistan, slopes of around 30% are used communally, and are heavily overgrazed. This has led to a reduction in vegetation cover, to soil compaction, and to severe sheet and rill erosion. In 1982, one innovative land user began to set up half a hectare vineyard/fruit plot with intensive grass/fodder production for cut-and-carry and also a separate section above for hay making - by his own initiative. By the application of various conservation measures, within five years an area exposed to severe water erosion was converted into an area of sustainable use. Fodder and fruits are now flourishing and the natural resources of soil and water are conserved more effectively.

Purpose of the Technology: The start of the process was fencing of the plot to keep out animals. Scrap metal and other materials from a machinery depot were used to build a 1.5 m high fence. To harvest and hold runoff water from the hillside for grapes and fruit trees, narrow backsloping terraces were constructed, each with a water retention ditch along the contour. During the initial phase, the terraces did not harvest enough water for establishment of the seedlings. So water for supplementary irrigation was carried to the plot by donkeys in old inner tubes from car tyres. Manure is applied to the plot to improve soil fertility. The manure is collected on the high pastures where the herders graze their animals during summer. The total amount of manure applied to the plot so far amounts to about 3 t/ha over 20 years.

Establishment / maintenance activities and inputs: The establishment of such a plot is very demanding in terms of manpower. However within 5-6 years the system becomes self-sustaining and the productivity of the land is improved several times over. Following this positive experience, other households in the area have adopted the technology spontaneously, and today about 15 ha of degraded grazing land in the Varzob valley have been converted into productive fruit gardens.

Natural / human environment: For the innovator, his most valuable fruits are grapes, followed by apricots, almonds and plums. He has also successfully grown mulberry, pomegranate and cherry trees. Not all the seedlings survive: the farmer considers a 40% survival rate of grape vines to be reasonable. The fruit harvest is mainly used for home consumption. However, in a good year the table grapes and apricots are sold on the market. The hay harvest, from naturally regenerated grasses and fodder plants between the fruits amounts on average to 0.2 t/ha/year. The pruned branches from the vines are collected and used as firewood.
The establishment of such a plot is very demanding in terms of manpower. However within 5-6 years the system becomes self-sustaining and the productivity of the land is improved several times over. Following this positive experience, other households in the area have adopted the technology spontaneously, and today about 15 ha of degraded grazing land in the Varzob valley have been converted into productive fruit gardens.

Байршил

Байршил: Varzob, Tajikistan, Тажикистан

Дүн шинжилгээнд хамрагдсан технологи нэвтрүүлсэн газрын тоо:

Сонгосон байршлуудын газарзүйн холболт
  • 68.7575, 38.6349

Технологийн тархалт:

Тусгай хамгаалалттай газар нутагт?:

Хэрэгжилтийн огноо: 10-50 жилийн өмнө

Нутагшууллын төрөл

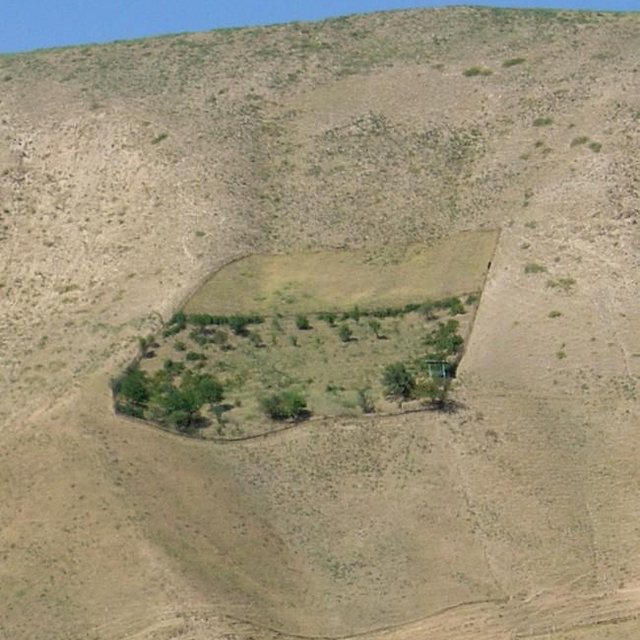

Agroforestry plot surrounded by overgrazed and heavily degraded grazing land; note also fenced plot with grass plot for hay making above the plot. (Hanspeter Liniger (Centre for Development and Environment (CDE), University of Bern))
-

Технологийн ангилал

Үндсэн зорилго
  • үйлдвэрлэлийг сайжруулах
  • газрын доройтлыг бууруулах, сэргийлэх, нөхөн сэргээх
  • экосистемийг хамгаалах
  • сав газрыг хамгаалах (усны эх/ голын адаг) - бусад технологитой хослуулах
  • биологийн төрөл зүйлийг хамгаалах / сайжруулах
  • гамшгийн эрсдлийг бууруулах
  • уур амьсгалын өөрчлөлт/ экстрим байдал болон түүний нөлөөлөлд дасан зохицох
  • уур амьсгалын өөрчлөлт, түүний үр нөлөөг багасгах
  • үр ашигтай эдийн засгийн нөлөөг бий болгох
  • нийгэмд үзүүлэх үр нөлөөг бий болгох
Газар ашиглалт
Нэг газр нутгийн хэмжээнд хэрэгжих холимог газар ашиглалт: Тийм - ХАА-ой-бэлчээрийн цогц систем

  • Тариалангийн талбай
    • Нэг наст үр тариа: тэжээлийн ургамал - үетэн, тэжээлийн ургамал - бусад
    • Олон наст (модлог биш) үр тариа: жимсгэнэ
    • Мод, сөөг тарих: усан үзэм, том үрт жимс (тоор, интоор, чавга г.м.), модны самар (бразил самар, туулайн бөөр, хушга, бүйлс г.м.), жимс (алим, лийр г.м.)
    Жилд ургамал ургах улирлын тоо: 1
  • Бэлчээрийн газар
    • Хадлан буюу бэлчээрт ашиглагдахгүй талбай
  • Байгалийн ой / модтой газарБүтээгдэхүүн ба үйлчилгээ: Түлшний мод
Усан хангамж
  • Байгалийн усалгаатай
  • Байгалийн/усалгаатай арга хосолсон
  • бүрэн усалгаатай

Газрын доройтолтой холбоотой зорилго
  • газрын доройтлоос урьдчилан сэргийлэх
  • Газрын доройтлыг бууруулах
  • Хүчтэй доройтсон газрыг нөхөн сэргээх/ сайжруулах
  • газрын доройтолд дасан зохицох
  • холбогдолгүй
Доройтолын төрөл
  • хөрс усаар эвдрэх - Wt: Хөрсний гадаргын угаагдал
  • хөрсний физик доройтол - Pc: Хөрс дагтарших
  • биологийн доройтол - Bc: Ургамлан нөмрөг багасах
ГТМ бүлэг
  • ХАА-н ойжуулалт
  • өрхийн цэцэрлэг
ГТМ арга хэмжээ
  • Агрономийн арга хэмжээ - А2: Органик нэгдэл/ хөрсний үржил шим
  • Ургамлын арга хэмжээ - V1: Мод ба бут, сөөг
  • Барилга байгууламжийн арга хэмжээ - S1: Террас
  • Менежментийн арга хэмжээ - М1: Газар ашиглалтын хэлбэрийг өөрчлөх

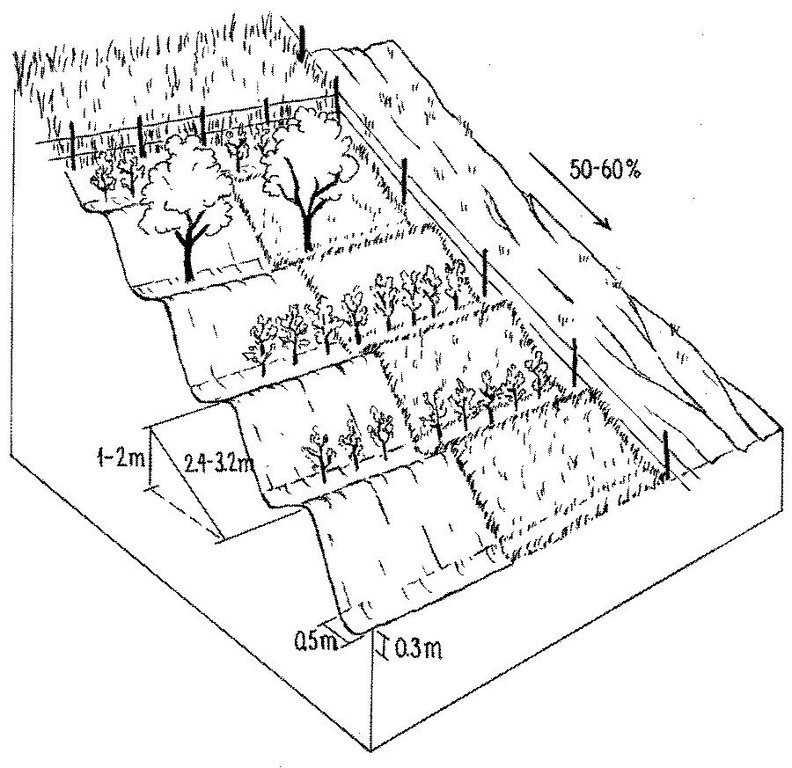

Техникийн зураг

Техникийн үзүүлэлтүүд
The fenced-off agroforestry system comprising fruit trees and cereals grown on a steep hillside. Terracing is crucial for water conservation. Grass cover (right) is established for fodder production and simultaneous soil conservation. Note the adjacent plot for haymaking (above) and degraded rangeland outside the protected area (right).

Location: Varzob. Varzob, Tajikistan

Technical knowledge required for land users: moderate

Main technical functions: improvement of ground cover, increase in organic matter, increase in nutrient availability (supply, recycling,…), retain/trap dispersed runoff, increase in soil fertility

Secondary technical functions: reduction of slope angle, water harvesting / increase water supply, reduction in wind speed, retain/trap concentrated runoff (prevention of gully erosion)

Manure / compost / residues
Material/ species: manure
Remarks: 3 t per ha over 20 years

Vegetative measure: fruit trees/vines aligned
Vegetative material: T : trees / shrubs
Vertical interval between rows / strips / blocks (m): 1-2
Spacing between rows / strips / blocks (m): 2.4-3.2

Vegetative measure: Vegetative material: T : trees / shrubs

Vegetative measure: Vegetative material: T : trees / shrubs

Vegetative measure: Vegetative material: T : trees / shrubs

Trees/ shrubs species: grapes, apricot trees, almond trees, plum trees, mulberry trees, pomegranate trees, cherry trees

Slope (which determines the spacing indicated above): 16-30%

Terrace: backward sloping
Vertical interval between structures (m): 1-2
Spacing between structures (m): 2.4-3.2
Depth of ditches/pits/dams (m): 0.3
Width of ditches/pits/dams (m): 0.5

Structural measure: fence

Construction material (other): waste material, from a machinery depot

Change of land use type: from grazing land to tree crops
Author: Mats Gurtner, Centre for Development and Environment (CDE), University of Bern

Бий болгох ба арчилах: үйл ажиллагаа, материал ба зардал

Материал, зардлын тооцоо
  • Тооцоолсон зардлууд:
  • Зардал тооцоход ашигласан валют: Ам.доллар
  • Валютын ханш (ам.дол): 1 ам.дол = тодорхойгүй
  • Нэг өдрийн ажилчны хөдөлмөр хөлсний дундаж: тодорхойгүй
Зардалд нөлөөлөх хамгийн чухал хүчин зүйлс
тодорхойгүй
Хэрэгжүүлж эхлэхэд шаардлагатай үйл ажиллагаа
  1. Planting of vines and fruit tree seedlings (apricot, plums, almonds) (Хугацаа / давтамж: None)
  2. 1. Fencing of an area of 0.5 ha using waste material from a machinerydepot. (Хугацаа / давтамж: None)
  3. 2. Construction of backward sloping bench terraces. (Хугацаа / давтамж: None)
Бий болгоход шаардагдах материал ба зардал
Зардлын нэр, төрөл Хэмжих нэгж Тоо хэмжээ Нэгжийн үнэ (Ам.доллар) Зардал бүрийн нийт өртөг (Ам.доллар) Нийт дүнгээс газар ашиглагчийн төлсөн %
Хөдөлмөр эрхлэлт
Planting/Fencing/Constructing ha 1.0 600.0 600.0 100.0
Тоног төхөөрөмж
Machine use ha 1.0 50.0 50.0 100.0
Animal traction ha 1.0 200.0 200.0 100.0
таримал материал
seedlings ha 1.0 40.0 40.0 99.0
grape vines ha 1.0 1500.0 1500.0 100.0
Бордоо ба биоцид
manure ha 1.0 300.0 300.0 100.0
Технологи бий болгох нийт үнэ өртөг 2'690.0
Технологи бий болгох нийт үнэ өртөг, ам.доллар 2'690.0
Арчилгаа, урсгал үйл ажиллагаа
  1. Irrigation (old inner tubes filled with water carried to the plot by donkeys). In summer: 5 litres of water per tree, per week. (Хугацаа / давтамж: first 5–6 years)
  2. Irrigation (old inner tubes filled with water carried to the plot by donkeys). In summer: 5 litres of water per tree, per week. (Хугацаа / давтамж: first 5–6 years)
  3. Manuring: applied at first to the newly planted vines/trees only,with restricted availability. During the second half of the establishment phase also applied elsewhere within the plot (Хугацаа / давтамж: None)
  4. Manuring: applied at first to the newly planted vines/trees only,with restricted availability. During the second half of the establishment phase also applied elsewhere within the plot (Хугацаа / давтамж: None)
  5. Irrigation of new seedlings. (Хугацаа / давтамж: None)
  6. Harvesting of fruits and fodder: transport of the yield to the house by donkey (Хугацаа / давтамж: None)
  7. Manuring, when replacing grapes or trees that had died. (Хугацаа / давтамж: every year)
  8. Vines and trees that fail are replaced. (Хугацаа / давтамж: None)
  9. Grapes and trees pruned (Хугацаа / давтамж: every year.)
  10. 1. Repairs to the fence (Хугацаа / давтамж: every year)
Арчилгаа, урсгал үйл ажиллагаанд шаардагдах материал ба зардал
Зардлын нэр, төрөл Хэмжих нэгж Тоо хэмжээ Нэгжийн үнэ (Ам.доллар) Зардал бүрийн нийт өртөг (Ам.доллар) Нийт дүнгээс газар ашиглагчийн төлсөн %
Хөдөлмөр эрхлэлт
Irrigation/manuring/keeping in good repair ha 1.0 180.0 180.0 100.0
Тоног төхөөрөмж
Animal traction ha 1.0 200.0 200.0 100.0
таримал материал
Seedlings ha 1.0 20.0 20.0 100.0
Grape vines (replacment) ha 1.0 150.0 150.0 100.0
Бордоо ба биоцид
manure ha 1.0 20.0 20.0 100.0
Технологийн арчилгаа/урсгал үйл ажиллагаанд шаардагдах нийт үнэ өртөг 570.0
Технологи арчилах ба урсгал ажлын нийт үнэ өртөг, ам.доллар 570.0

Байгалийн нөхцөл

Жилийн дундаж хур тундас
  • < 250 мм
  • 251-500 мм
  • 501-750 мм
  • 751-1,000 мм
  • 1,001-1,500 мм
  • 1,501-2,000 мм
  • 2,001-3,000 мм
  • 3,001-4,000 мм
  • > 4,000 мм
Агро-уур амьсгалын бүс
  • чийглэг
  • чийглэг
  • хагас хуурай
  • хуурай
Уур амьсгалын үзүүлэлтүүд
Thermal climate class: temperate
Налуу
  • хавтгай (0-2 %)
  • бага зэрэг налуу (3-5 %)
  • дунд зэрэг налуу (6-10 % )
  • хэвгий (11-15 %)
  • налуу (16-30 %)
  • их налуу (31-60 % )
  • эгц налуу (>60 %)
Гадаргын хэлбэр
  • тэгш өндөрлөг / тал
  • нуруу
  • уулын энгэр
  • дов толгод
  • бэл
  • хөндий
Далайн түвшнөөс дээшхи өндөр
  • 0-100 д.т.д. м.
  • 101-500 д.т.д. м.
  • 501-1,000 д.т.д м.
  • 1,001-1,500 д.т.д м.
  • 1,501-2,000 д.т.д м.
  • 2,001-2,500 д.т.д. м.
  • 2,501-3,000 д.т.д. м.
  • 3,001-4,000 д.т.д м.
  • > 4,000 д.т.д. м.
Технологийг нэвтрүүлсэн
  • гүдгэр нөхцөл
  • хотгор нөхцөл
  • хамааралгүй
Хөрсний зузаан
  • маш нимгэн (0-20 см)
  • нимгэн (21-50 см)
  • дунд зэрэг зузаан (51-80 см)
  • зузаан (81-120 cм)
  • маш зузаан (>120 cм)
Хөрсний бүтэц (өнгөн хөрс)
  • бүдүүн/ хөнгөн (элсэрхэг)
  • дундаж (элсэнцэр, шавранцар)
  • нарийн /хүнд (шаварлаг)
Хөрсний бүтэц (гадаргаас доош > 20 см)
  • бүдүүн/ хөнгөн (элсэрхэг)
  • дундаж (элсэнцэр, шавранцар)
  • нарийн /хүнд (шаварлаг)
Өнгөн хөрсний ялзмагийн хэмжээ
  • их (>3 %)
  • дунд (1-3 % )
  • бага (<1 % )
Гүний усны түвшин
  • гадаргаас
  • < 5 м
  • 5-50 м
  • > 50 м
Гадаргын усны хүртээмж
  • хангалттай
  • сайн
  • дунд зэрэг
  • хангалтгүй/ байхгүй
Усны чанар (боловсруулаагүй)
  • сайн чанарын ундны ус
  • муу чанарын ундны ус (цэвэршүүлэх шаардлагатай)
  • зөвхөн газар тариалангийн зориулалтаар ашиглах (усалгаа)
  • ашиглах боломжгүй
Усны давсжилтын түвшинийг орчны асуудал гэж тооцдог уу?
  • Тийм
  • Үгүй

Үерийн давтамж
  • Тийм
  • Үгүй
Зүйлийн олон янз байдал
  • Их
  • дунд зэрэг
  • Бага
Амьдрах орчны олон янз байдал
  • Их
  • дунд зэрэг
  • Бага

Технологи нэвтрүүлсэн газар ашиглагчдын тодорхойлолт

Зах зээлийн чиг хандлага
  • амь зуух арга хэлбэрийн (өөрийгөө хангах)
  • холимог (амьжиргаа ба худалдаанд)
  • худалдаа наймааны/ зах зээлийн
Орлогын бусад эх үүсвэр
  • Нийт орлогын 10 %-иас доош
  • Нийт орлогын 10-50 %
  • Нийт орлогын 50 %-иас дээш
Чинээлэг байдлын түвшин
  • нэн ядуу
  • ядуу
  • дундаж
  • чинээлэг
  • маш чинээлэг
Механикжуулалтын түвшин
  • гар ажил
  • ердийн хөсөг
  • механикжсан / мотортой
Суурин эсвэл нүүдлийн
  • Суурьшмал
  • Хагас-нүүдэлийн
  • Нүүдэлийн
Хувь хүн эсвэл бүлгүүд
  • Хувь хүн / өрх
  • бүлэг / олон нийтийн
  • хоршоо
  • ажилтан (компани, засгийн газар)
Хүйс
  • эмэгтэй
  • эрэгтэй
Нас
  • хүүхэд
  • залуус
  • дунд нас
  • ахимаг нас
Өрхийн зориулалтаар ашиглах газрын талбай
  • < 0.5 га
  • 0.5-1 га
  • 1-2 га
  • 2-5 га
  • 5-15 га
  • 15-50 га
  • 50-100 га
  • 100-500 га
  • 500-1,000 га
  • 1,000-10,000 га
  • > 10,000 га
Хэмжээ
  • бага-хэмжээний
  • дунд-хэмжээний
  • том-хэмжээний
Газар өмчлөл
  • төрийн
  • компани
  • нэгдлийн/ тосгон
  • бүлэг
  • хувь хүн, өмчийн гэрчилгээгүй
  • хувь хүн, өмчийн гэрчилгээтэй
Газар ашиглах эрх
  • нээлттэй хүртэх (зохион байгуулалтгүй)
  • нэгдлийн хэлбэрээр (зохион байгуулалттай)
  • түрээсийн хэлбэрээр
  • хувь хүн
Ус ашиглах эрх
  • нээлттэй хүртэх (зохион байгуулалтгүй)
  • нэгдлийн хэлбэрээр (зохион байгуулалттай)
  • түрээсийн хэлбэрээр
  • хувь хүн
Дэд бүтэц, үйлчилгээний хүртээмж

Нөлөө

Нийгэм-эдийн засгийн үр нөлөө
тэжээлийн чанар
буурсан
x
нэмэгдсэн

модлогийн бүтээмж
буурсан
x
нэмэгдсэн

ХАА-н зардал
Нэмэгдсэн
x
Буурсан


for manure application

тухайн аж ахуйн орлого
буурсан
x
нэмэгдсэн

ажлын хэмжээ
Нэмэгдсэн
x
Буурсан


high labour input needed for establishment and recurrent irrigation

fruit production
decreased
x
increased

Нийгэм-соёлын үр нөлөө
олон нийтийн институц
суларсан
x
бэхжсэн


terrace construction requires collaboration with relatives and friend

ГТМ/ газрын доройтлын мэдлэг
буурсан
x
сайжирсан

маргааныг шийдвэрлэх
муудсан
x
сайжирсан


in the beginning conflicts due to jealousy, loss of community grazing land and fear of landslides caused by water retention on sloping loess areas

Экологийн үр нөлөө
усны урсац
буурсан
x
сайжирсан

хөрсний чийг
буурсан
x
нэмэгдсэн

хөрсөн бүрхэвч
буурсан
x
сайжирсан

хөрс алдагдах
Нэмэгдсэн
x
Буурсан


poorly maintained terraces may lead to increased erosion (medium (20-50%))

soil fertility
decreased
x
icreased

biodiversity
diminished
x
enhanced

Зэргэлдээ талбайд илрэх нөлөө
салхиар тээвэрлэгдэх хурдас
Нэмэгдсэн
x
багассан

flooding of the road at the bottom of the slope
increased
x
reduced


conserved area is too small to have significant impact

risk of landslides due to water harvesting
increased
x
decreased

Өртөг ба ашгийн шинжилгээ

Бий болгох зардалтай харьцуулахад олсон ашиг
Богино хугацаанд эргэн төлөгдөх байдал
маш сөрөг
x
маш эерэг

Урт хугацаанд эргэн төлөгдөх байдал
маш сөрөг
x
маш эерэг

Урсгал зардалтай харьцуулахад олсон ашиг
Богино хугацаанд эргэн төлөгдөх байдал
маш сөрөг
x
маш эерэг

Урт хугацаанд эргэн төлөгдөх байдал
маш сөрөг
x
маш эерэг

Уур амьсгалын өөрчлөлт

-

Нутагшуулах ба дасан зохицох

Тухайн нутаг дэвсгэрт Технологийг нэвтрүүлсэн газар ашиглагчдын хувь
  • жишээ/ туршилт
  • 1-10 %
  • 11-50%
  • > 50%
Технологийг нэвтрүүлсэн бүх хүмүүсийн хэд нь материаллаг урамшуулал авалгүйгээр технологийг хэрэгжүүлсэн бэ?
  • 0-10%
  • 11-50%
  • 51-90%
  • 91-100%
Хамрагдсан өрх ба/эсвэл газар нутгийн хэмжээ
5 households in an area of 15 ha
Технологи нь өөрчлөгдөж буй нөхцөл байдалд дасан зохицохын тулд өөрчлөгдсөн үү?
  • Тийм
  • Үгүй
Ямар өөрчлөлтөнд эмзэг вэ?
  • уур амьсгалын өөрчлөлт/ экстрим үзэгдэл
  • зах зээлийн өөрчлөлт
  • ажил хөдөлмөр эрхлэх боломж (ж.нь шилжих хөдөлгөөний улмаас)

Дүгнэлт, сургамж

Давуу тал: газар ашиглагчийн бодлоор
Давуу тал: эмхэтгэгч эсвэл бусад мэдээлэл өгсөн хүмүүсийн бодлоор
  • Rehabilitation of degraded areas: reduced soil erosion and increased productivity

    How can they be sustained / enhanced? Complement manure inputs by using other fertilisers.
  • Production increase: good fruit yields

    How can they be sustained / enhanced? Introduce low input demanding crops
  • Diversification: different kinds of fruit trees growing on the plot

    How can they be sustained / enhanced? Other trees (nuts for example) and annual crops such as wheat might also be suitable for this area.
  • Income generation.
  • Where open access communal grazing leads to land degradation, individuals sometimes enclose land for productive purposes. This positive example is from Tajikistan where the initiative began during the period of the soviet regime. Similar initiatives can be seen in western Iran. However, if a significant number of land users follow suit, there will be a reduction in the amount of land available for common use. 2.6.11: Level of technical knowledge required: land user: partly moderate (construction of terraces) and partly low (simple knowledge of agronomy, manure application, harvesting etc)
Сул тал/ дутагдал / эрсдэл: газар ашиглагчийн бодлоордаван туулах боломжууд
Сул тал/ дутагдал / эрсдэл: эмхэтгэгч эсвэл бусад мэдээлэл өгсөн хүмүүсийн бодлоордаван туулах боломжууд
  • Bringing water for supplementary irrigation to the orchard is very labour intensive An irrigation supply system could be installed (irrigation channels, water tank). But so far this is too expensive, and it is questionable whether irrigation could be installed and maintained sustainably
  • Not all tree species can grow in these dry conditions (for example apple trees will not survive without regular irrigation or watering) irrigation water required (see above).
  • Difficulty in establishment of the young vines in the well developed grass Remove or cut down grass and herbaceous plants around the vines at least until they have been well established.
  • Generally high manual labour input Difficult to reduce labour inputs.

Суурь мэдээлэлүүд

Эмхэтгэгч
  • Loes Masselink
Хянан тохиолдуулагчид
Хянагч
  • Deborah Niggli
  • Alexandra Gavilano
  • David Streiff
  • Joana Eichenberger
Баримтжуулсан огноо: 18 1-р сар 2011
Сүүлийн шинэчлэл: 02 11-р сар 2021
Мэдээлэл өгсөн хүн
WOCAT мэдээллийн сан дахь бүрэн тодорхойлолт
Холбогдох ГТМ мэдээлэл
Баримтжуулалтыг зохион байгуулсан
Байгууллага Төсөл
Холбогдох мэдээллийн интернет холбоос
This work is licensed under Creative Commons Attribution-NonCommercial-ShareaAlike 4.0 International
