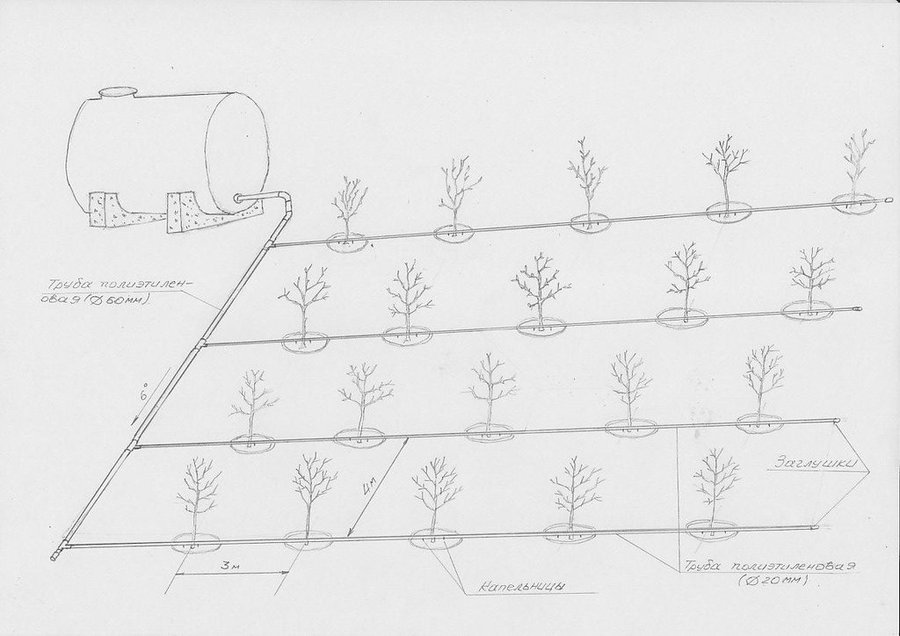

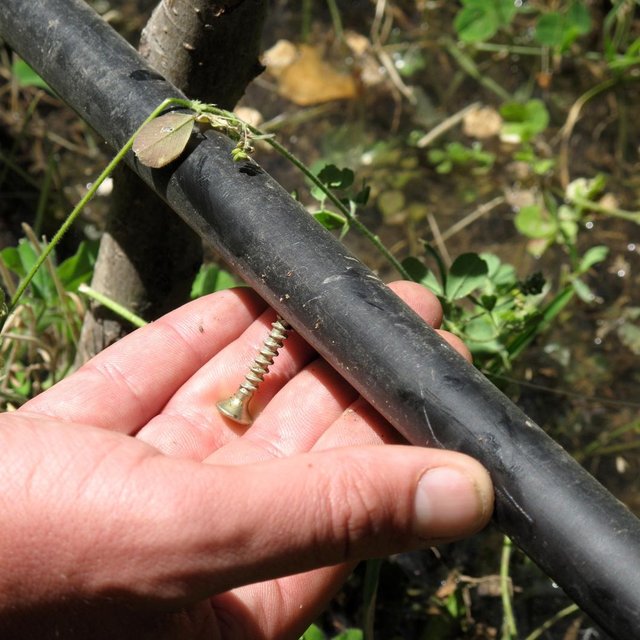

The system consists of a reservoir and polyethylene irrigation tubes and emitters installed along the rows of trees. Water accumulates in the reservoir during spring and early summer when there is no deficit in irrigation water. During the dry summer months water is then used for drip irrigation. Located in the upper part of the system, the reservoir ensures water pressure in the system. Due to the complex local topography, this irrigation method can be used without water pumps since natural water pressure ensures normal functioning of the system. Even though this water saving technology is quite effective, drip irrigation is rarely used since both the construction and maintenance of the system are quite expensive. With the introduction of this technology into the poor mountain communities of GBAO, the overall objective was to make drip irrigation technology cheaper and more easily available to farmers. The objective was achieved by the use of simple polyethylene irrigation tubes, simple screws instead of expensive emitters, and natural water pressure excluding the construction of a water pump station. Water is dripped directly to the roots of the trees, thus excluding loss of water and soil erosion. Fertilisers can be added directly to the water reservoir. This technology allows increased water savings of 50%, and 90% of fertilisers. During the growing period trees are watered once every 6 days.
Purpose of the Technology: The purpose of this technology is to improve the water supply for fruit orchards during the growing period in the arid conditions of the Pamirs where available water is very limited.
Establishment / maintenance activities and inputs: Steps to implement the technology include the following: dig holes for trees, plant trees, establish water reservoir, lay polyethylene tubes, install emitters and regularly clean irrigation system.
Natural / human environment: The plot is located in an arid zone at the height of 2000m above sea level. It is a high mountain area with typical brown soils and slopes up to 60 degrees steepness. Annual precipitation is quite low and mainly occurs in the autumn and winter period. Summers are extremely dry. The main occupations of the local population include agriculture and cattle breeding.
Байршил: Shugnan, GBAO, Тажикистан
Дүн шинжилгээнд хамрагдсан технологи нэвтрүүлсэн газрын тоо:
Технологийн тархалт: газар дээр жигд тархсан (approx. < 0.1 км2 (10 га))
Тусгай хамгаалалттай газар нутагт?:
Хэрэгжилтийн огноо: <10 жилийн өмнө (саяхны)
Нутагшууллын төрөл
Зардлын нэр, төрөл | Хэмжих нэгж | Тоо хэмжээ | Нэгжийн үнэ (Tajik Somony) | Зардал бүрийн нийт өртөг (Tajik Somony) | Нийт дүнгээс газар ашиглагчийн төлсөн % |
Хөдөлмөр эрхлэлт | |||||
Tree planting | Persons/day | 2.0 | 11.0 | 22.0 | 100.0 |
Mounting of drip irrigation system | Persons/day | 5.0 | 25.2 | 126.0 | |
Тоног төхөөрөмж | |||||
Tools | pieces | 5.0 | 1.2 | 6.0 | 100.0 |
Other Tools | pieces | 5.0 | 2.2 | 11.0 | |
Polyethylene tube | meters | 2200.0 | 0.445454545 | 980.0 | |
Watertank | pieces | 1.0 | 600.0 | 600.0 | |
таримал материал | |||||
Tree seedlings | pieces | 360.0 | 0.675 | 243.0 | 100.0 |
Бордоо ба биоцид | |||||
Fertilizer | kg | 10.0 | 1.7 | 17.0 | 100.0 |
Технологи бий болгох нийт үнэ өртөг | 2'005.0 | ||||
Технологи бий болгох нийт үнэ өртөг, ам.доллар | 450.56 |
Зардлын нэр, төрөл | Хэмжих нэгж | Тоо хэмжээ | Нэгжийн үнэ (Tajik Somony) | Зардал бүрийн нийт өртөг (Tajik Somony) | Нийт дүнгээс газар ашиглагчийн төлсөн % |
Хөдөлмөр эрхлэлт | |||||
Sanitary cutting of trees | Persons/day | 0.6 | 16.66667 | 10.0 | 100.0 |
Hay harvest | Persons/day | 1.0 | 9.0 | 9.0 | 100.0 |
Unclogging the irrigation tubes | Persons/day | 1.0 | 11.0 | 11.0 | |
Тоног төхөөрөмж | |||||
Tools (Scissors) | pieces | 2.0 | 2.5 | 5.0 | 100.0 |
Tool for harvesting | pieces | 1.0 | 2.0 | 2.0 | 100.0 |
Tools for unclogging tubes | pieces | 2.0 | 2.25 | 4.5 | 100.0 |
Polyethylene tube | meters | 56.0 | 0.445454545 | 24.95 | 100.0 |
Water tank | repair | 1.0 | 10.0 | 10.0 | 100.0 |
таримал материал | |||||
Seedlings tree replacement | pieces | 15.0 | 0.675 | 10.13 | 100.0 |
Бордоо ба биоцид | |||||
Fertilizer | kg | 10.0 | 1.7 | 17.0 | 100.0 |
Технологийн арчилгаа/урсгал үйл ажиллагаанд шаардагдах нийт үнэ өртөг | 103.58 | ||||
Технологи арчилах ба урсгал ажлын нийт үнэ өртөг, ам.доллар | 23.28 |
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: 45kg per ha
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: 80kg per ha
water availability increase production of fruits
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: 5 centner/ha
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: 20 centner/ha
grass between rows used for fodder
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: bad
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: high
before natural grass - after alfa alfa
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: 2- 5per hose
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: 6-15 per hose
increase of fodder production stimulate livestock development
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: 0.5 m3/hose
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: 1-5m3/hose
sanitary cutting of tress
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: 0
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: 100%
increased water availability
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: 10%
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: 70%
technology helps to use steep slopes
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: 0
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: 50%
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: 10%
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: 80%
increased harvest
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: 0
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: None
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: 50%
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: 0%
decreased conflict related to irrigation water use
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: 0
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: 50%
increased incomes of poor farmers
After the implementation of the technology the households were protected from negative influence of dry season.
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: 10%
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: 60%
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: 0%
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: 100%
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: 100%
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: 0%
all the water can be absorbed by soil
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: 0
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: 10%
transpiration of trees and grass
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: 0%
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: 80%
during the dry season
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: 0%
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: 20%
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: 0%
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: 100%
reduced dry season effect
ГТМ хэрэгжихээс өмнөх тоо хэмжээ: 0%
ГТМ хэрэгжиснээс хойшхи тоо хэмжээ: 50%
