Sweet Potato Ridge (埃塞俄比亚)

描述

Earth embankment formed by digging a channel and pile the soil to form a ridge on which potato is planted.

Sweet potato ridge are constructed from the soil dug out of the furrow. Farmers make the furrow and ridge by dengora and a hoe. In some cases oxen scoop are used to move the soil and form the embankment. Sweet potato is planted by cuttings. It is often planted during the end of the main rainy season. There are different methods employed in making ridge and furrows. The furrows are meant to collect rain water and the cuttings of sweet potato planted on the ridge. The plant benefits from the soil water stored by the farrows. It has deep roots that go deep insearch of soil water. Water could also move up by capillary movement. Forming the ridges and basin is quite labours. The ridges are frequently made new and in some cases the former ridges and furrows are maintained. The technology suits to sub-humid and semi arid agro-ecological zones having sandy loam soils.

地点

地点: 埃塞俄比亚

分析的技术场所数量:

选定地点的地理参考
  • 不适用

技术传播: 均匀地分布在一个区域 (approx. 100-1,000 平方千米)

在永久保护区?:

实施日期: 50多年前(传统)

介绍类型

技术分类

主要目的
  • 改良生产
  • 减少、预防、恢复土地退化
  • 保护生态系统
  • 结合其他技术保护流域/下游区域
  • 保持/提高生物多样性
  • 降低灾害风险
  • 适应气候变化/极端天气及其影响
  • 减缓气候变化及其影响
  • 创造有益的经济影响
  • 创造有益的社会影响
土地利用
同一土地单元内混合使用的土地: 是 - 农林业

  • 农田
    • 一年一作: 谷物类 - 玉米, 谷类 - 高粱, 豆科牧草和豆类 - 其他, 根/块茎作物 - 红薯、山药、芋头/椰子,其他, Chat (khat, shrub)
    • 乔木与灌木的种植
    每年的生长季节数: 1
  • 森林/林地Tree types: 金合欢树种

供水
  • 雨养
  • 混合雨水灌溉
  • 充分灌溉

土地退化相关的目的
  • 防止土地退化
  • 减少土地退化
  • 修复/恢复严重退化的土地
  • 适应土地退化
  • 不适用
解决的退化问题
  • 土壤水蚀 - Wt:表土流失/地表侵蚀
  • 化学性土壤退化 - Cn:肥力下降和有机质含量下降(非侵蚀所致)
SLM组
  • 集水
  • 灌溉管理(包括供水、排水)
  • 引水和排水
SLM措施

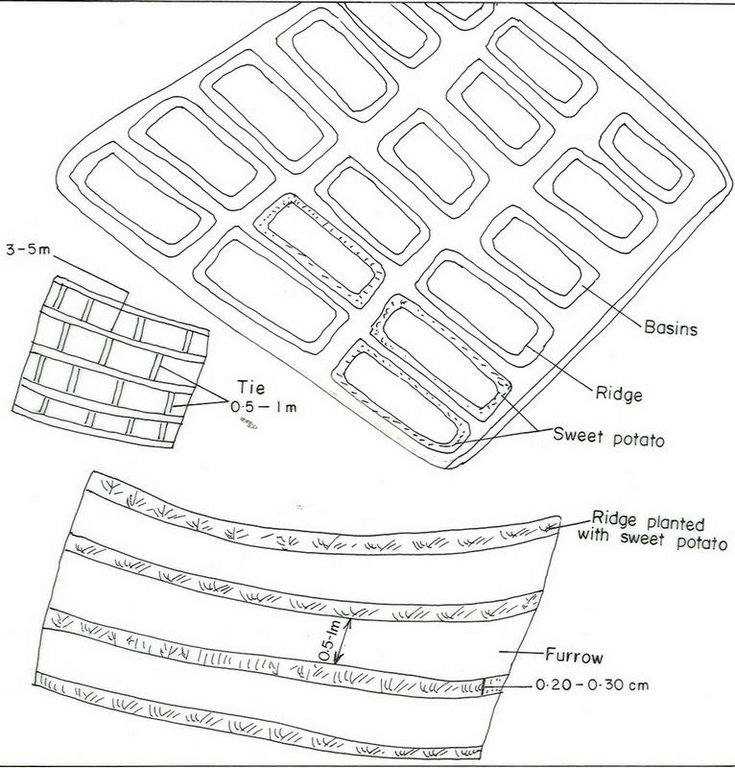

技术图纸

技术规范
Oromia

Technical knowledge required for field staff / advisors: moderate

Technical knowledge required for land users: moderate

Main technical functions: increase of infiltration, increase / maintain water stored in soil, water harvesting / increase water supply

Secondary technical functions: control of dispersed runoff: retain / trap, reduction of slope length, increase in soil fertility

Better crop cover
Material/ species: Sweet potato
Quantity/ density: 20000-2500
Remarks: along the contour

Mixed cropping / intercropping
Material/ species: maize, sorghum, chat
Remarks: row and broadcast

Contour planting / strip cropping
Material/ species: Sorghum, chat

Cover cropping
Material/ species: Sorghum, chat, maize

Green manure
Material/ species: Sweet potato

Aligned: -contour
Vegetative material: T : trees / shrubs, F : fruit trees / shrubs, C : perennial crops
Number of plants per (ha): 1500
Vertical interval between rows / strips / blocks (m): 0.2
Spacing between rows / strips / blocks (m): 2.5
Vertical interval within rows / strips / blocks (m): 2
Width within rows / strips / blocks (m): 2.5

Trees/ shrubs species: some accacia trees

Fruit trees / shrubs species: apple, mango

Perennial crops species: chat

Slope (which determines the spacing indicated above): 3.00%

If the original slope has changed as a result of the Technology, the slope today is (see figure below): 3.00%

Gradient along the rows / strips: 0.00%

Retention/infiltration ditch/pit, sediment/sand trap
Spacing between structures (m): 1.5-2
Depth of ditches/pits/dams (m): 0.2-0.5
Width of ditches/pits/dams (m): 0.5-1
Length of ditches/pits/dams (m): 50-70

Structural measure: Ridge and furrows
Spacing between structures (m): 2-3
Height of bunds/banks/others (m): 0.3-0.6
Width of bunds/banks/others (m): 0.51
Length of bunds/banks/others (m): 50-70

Construction material (earth): Soil dug is embanked to form the ridge

Slope (which determines the spacing indicated above): 3%

If the original slope has changed as a result of the Technology, the slope today is: 3%

Lateral gradient along the structure: 0%

For water harvesting: the ratio between the area where the harvested water is applied and the total area from which water is collected is: 1:1

技术建立与维护:活动、投入和费用

投入和成本的计算
  • 计算的成本为:
  • 成本计算使用的货币:Birr
  • 汇率(换算为美元):1 美元 = 8.6 Birr
  • 雇用劳工的每日平均工资成本:0.81
影响成本的最重要因素
Soil dryness and texture-light soils are very simple for opration and the least cost is incurred. Loam soils are good soils with moderate cost of investment.
技术建立活动
  1. Seed bed preparation (时间/频率: dry season)
  2. Pitting (时间/频率: after rain)
  3. Manuring (时间/频率: all season)
  4. Planting (时间/频率: during rains)
  5. Cultivation (时间/频率: during rains)
  6. Excavation (furrow formation) (时间/频率: dry period)
  7. Embankment (ridge forming) (时间/频率: None)
  8. Planting sweet potato (时间/频率: rainy season)
技术建立的投入和成本
对投入进行具体说明 单位 数量 单位成本 (Birr) 每项投入的总成本 (Birr) 土地使用者承担的成本%
劳动力
Labour ha 1.0 73.0 73.0 100.0
设备
Animal traction ha 1.0 35.0 35.0 100.0
植物材料
Seedlings ha 1.0 25.0 25.0 100.0
肥料和杀菌剂
Compost/manure ha 1.0 50.0 50.0 100.0
技术建立所需总成本 183.0
技术建立总成本,美元 21.28
技术维护活动
  1. Tillage (时间/频率: dry season / each cropping season)
  2. Harrowing (时间/频率: dry season / each cropping season)
  3. Contour ridging (时间/频率: dry season / each cropping season)
  4. Planting (时间/频率: rainy season / each cropping season)
  5. Cultivation (时间/频率: rainy season / 2-3)
  6. Reconstructing basins, ridges and tie (时间/频率: dry eason /)
  7. Applying more manure (时间/频率: all season /)
  8. Repair of ridges and furrows (时间/频率: before planting/1)
  9. Placing of fertile soil on the ridges (时间/频率: before planting/2)
  10. Applying manure during cultivation (时间/频率: after planting/1)

自然环境

年平均降雨量
  • < 250毫米
  • 251-500毫米
  • 501-750毫米
  • 751-1,000毫米
  • 1,001-1,500毫米
  • 1,501-2,000毫米
  • 2,001-3,000毫米
  • 3,001-4,000毫米
  • > 4,000毫米
农业气候带
  • 潮湿的
  • 半湿润
  • 半干旱
  • 干旱
关于气候的规范
不适用
斜坡
  • 水平(0-2%)
  • 缓降(3-5%)
  • 平缓(6-10%)
  • 滚坡(11-15%)
  • 崎岖(16-30%)
  • 陡峭(31-60%)
  • 非常陡峭(>60%)
地形
  • 高原/平原
  • 山脊
  • 山坡
  • 山地斜坡
  • 麓坡
  • 谷底
海拔
  • 0-100 m a.s.l.
  • 101-500 m a.s.l.
  • 501-1,000 m a.s.l.
  • 1,001-1,500 m a.s.l.
  • 1,501-2,000 m a.s.l.
  • 2,001-2,500 m a.s.l.
  • 2,501-3,000 m a.s.l.
  • 3,001-4,000 m a.s.l.
  • > 4,000 m a.s.l.
......应用的技术
  • 凸形情况
  • 凹陷情况
  • 不相关
土壤深度
  • 非常浅(0-20厘米)
  • 浅(21-50厘米)
  • 中等深度(51-80厘米)
  • 深(81-120厘米)
  • 非常深(> 120厘米)
土壤质地(表土)
  • 粗粒/轻(砂质)
  • 中粒(壤土、粉土)
  • 细粒/重质(粘土)
土壤质地(地表以下>20厘米)
  • 粗粒/轻(砂质)
  • 中粒(壤土、粉土)
  • 细粒/重质(粘土)
表土有机质含量
  • 高(>3%)
  • 中(1-3%)
  • 低(<1%)
地下水位
  • 表面上
  • < 5米
  • 5-50米
  • > 50米
地表水的可用性
  • 过量
  • 中等
  • 匮乏/没有
水质(未处理)
  • 良好饮用水
  • 不良饮用水(需要处理)
  • 仅供农业使用(灌溉)
  • 不可用
盐度是个问题吗?

洪水发生
物种多样性
  • 中等
栖息地多样性
  • 中等

应用该技术的土地使用者的特征

市场定位
  • 生计(自给)
  • 混合(生计/商业)
  • 商业/市场
非农收入
  • 低于全部收入的10%
  • 收入的10-50%
  • > 收入的50%
相对财富水平
  • 非常贫瘠
  • 贫瘠
  • 平均水平
  • 丰富
  • 非常丰富
机械化水平
  • 手工作业
  • 畜力牵引
  • 机械化/电动
定栖或游牧
  • 定栖的
  • 半游牧的
  • 游牧的
个人或集体
  • 个人/家庭
  • 团体/社区
  • 合作社
  • 员工(公司、政府)
性别
  • 女人
  • 男人
年龄
  • 儿童
  • 青年人
  • 中年人
  • 老年人
每户使用面积
  • < 0.5 公顷
  • 0.5-1 公顷
  • 1-2 公顷
  • 2-5公顷
  • 5-15公顷
  • 15-50公顷
  • 50-100公顷
  • 100-500公顷
  • 500-1,000公顷
  • 1,000-10,000公顷
  • > 10,000公顷
规模
  • 小规模的
  • 中等规模的
  • 大规模的
土地所有权
  • 公司
  • 社区/村庄
  • 团体
  • 个人,未命名
  • 个人,有命名
土地使用权
  • 自由进入(无组织)
  • 社区(有组织)
  • 租赁
  • 个人
用水权
  • 自由进入(无组织)
  • 社区(有组织)
  • 租赁
  • 个人
进入服务和基础设施的通道

影响

社会经济影响
作物生产
降低
增加

饲料生产
降低
增加


sweet potato leaves are used for fodder

饲料质量
降低
增加


sweet potato leaves are used for fodder

农业收入
降低
增加

社会文化影响
冲突缓解
恶化
改良

生态影响
地表径流
增加
降低

SLM之前的数量: 50
SLM之后的数量: 0

土壤水分
降低
增加

土壤覆盖层
减少
改良

土壤流失
增加
降低

Soil fertility
decreased
increased

场外影响
下游洪水(不希望)
增加
减少

下游淤积
增加
降低

成本效益分析

与技术建立成本相比的效益
短期回报
非常消极
非常积极

长期回报
非常消极
非常积极

与技术维护成本相比的效益
短期回报
非常消极
非常积极

长期回报
非常消极
非常积极

气候变化

-

采用和适应

采用该技术的地区内土地使用者的百分比
  • 单例/实验
  • 1-10%
  • 11-50%
  • > 50%
在所有采用这种技术的人当中,有多少人在没有获得物质奖励的情况下采用了这种技术?
  • 0-10%
  • 11-50%
  • 51-90%
  • 91-100%
最近是否对该技术进行了修改以适应不断变化的条件?
什么样的变化条件?
  • 气候变化/极端气候
  • 不断变化的市场
  • 劳动力可用性(例如,由于迁移)

结论和吸取的教训

长处: 土地使用者的观点
  • Improve production

    How can they be sustained / enhanced? Use of high yielding varieties and fertilizers
  • Reduces risk of crop failure

    How can they be sustained / enhanced? Encourage more crop type
长处: 编制者或其他关键资源人员的观点
  • Efficiently controls soil erosion

    How can they be sustained / enhanced? The ridges retard surface flow and the furrow provide space for rain water storage
  • Allows maximum storage of rain water
  • Improves water storage capacity of soils

    How can they be sustained / enhanced? Sweet potato improves the soil structure by initiating microbial activities
  • Reduces evapotranspiration rate of soil moisture

    How can they be sustained / enhanced? Sweet potato provide dense ground cover and hence reduce evapotranspiration losses
  • Improves soil fertility

    How can they be sustained / enhanced? Sweet potato is naturally a soil fertility enhancing crop.
弱点/缺点/风险: 土地使用者的观点如何克服
弱点/缺点/风险: 编制者或其他关键资源人员的观点如何克服

参考文献

编制者
  • Daniel Danano
Editors
审查者
  • Fabian Ottiger
  • Alexandra Gavilano
实施日期: May 30, 2011
上次更新: Sept. 4, 2019
资源人
WOCAT数据库中的完整描述
链接的SLM数据
文件编制者
机构 项目
This work is licensed under Creative Commons Attribution-NonCommercial-ShareaAlike 4.0 International
