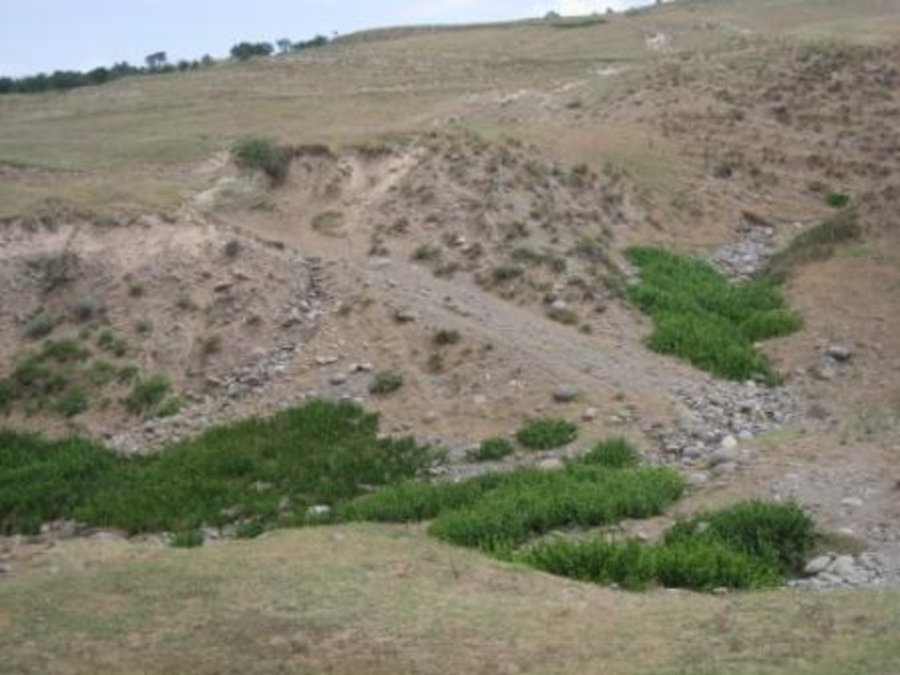

Communal pasture affected by livestock trampling (Conder Malgorzata)

Degraded communal pasture Chukurak (塔吉克斯坦)

描述

Degraded communal pastureland without grazing management and sufficient waterpoints

A communal pastureland of 150 -200 hectares is located at the foothill and the riverbank. Around 60 households let their livestock of totally 100 cows and some 400 sheep and goats graze there. The livestock is divided into three groups. Each group is meant to graze at different places in the pastureland. As there is no water point higher up in the pasture area, livestock graze near the village where a water point is installed. Due to this the riverbed, which is already poor in vegetation, is totally overgrazed. Every family is looking after a herd for a day every two month.

Purpose of the Technology: The aim is to install more water points higher up in the pastureland to decrease pressure on soil and vegetation cover by improving rotation within the pastureland. The whole land is overgrazed and livestock numbers are increasing, which is why controlled pasture management could be expected to decrease the degradation process. Nevertheless, more vegetation would be available for feeding livestock and the journey to the next water point shortened thus saving the heard’s energy. As nobody feels responsible for the pasture, nobody is responsible for pasture. No controlled grazing or rotation plan exists at Jamoat level. The farmers do not organise which parts have been grazed and could be grazed next. The livestock owners pay very small rent so they do not value the pastureland and no money is available to implement projects (like installing water points).

Establishment / maintenance activities and inputs: Each of the 60 households is paying 10-12 Somoni per year for grazing their cattle on the communal grazing land. Rent is paid per household not per amount of livestock. The total amount of pasture fees collect in Chukurak village is 600-700 Somoni per year. Neither establishment costs, nor investment or maintenance activities are done.

Natural / human environment: Pastureland extends from the village in the valley, to the foothills. Half of the grazing area is on the riverbed and fan with very poor vegetation cover. The foothills show a high percentage of overgrazed, trampled, eroded area. Except for the water point near the village, no water and shady points exist for resting livestock. Three small water sources existed before, two of them where covered by the floods in spring of the current year. The other source produces a negligible amount of drinking water. 60 households graze their livestock, which totals 100 cows and 400 small livestock. Every household is responsible to graze the herd one day every two month. Except that, no management exists between the families and Jamoat.

地点

地点: Muminabad, Khatlon, Tajikistan, 塔吉克斯坦

分析的技术场所数量:

选定地点的地理参考
  • 70.02295, 38.0217

技术传播: 均匀地分布在一个区域 (approx. 1-10 平方千米)

在永久保护区?:

实施日期:

介绍类型

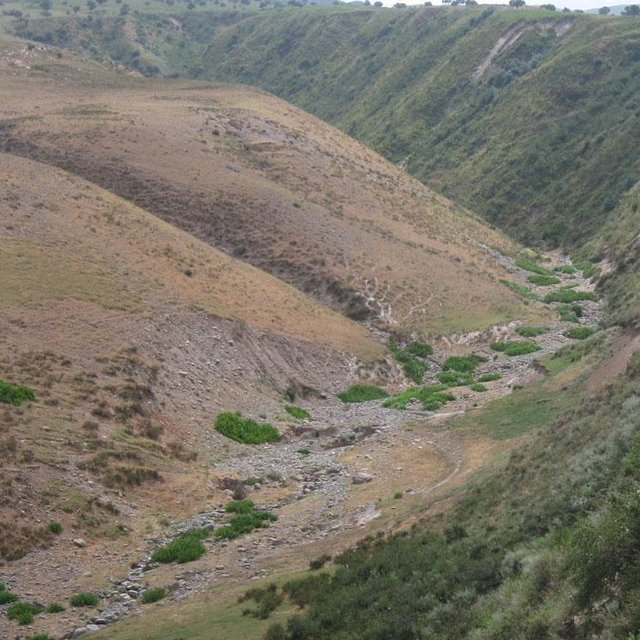

Different intensity of overgrazing due to steepness and exposition of the slope (Conder Malgorzata)

技术分类

主要目的
  • 改良生产
  • 减少、预防、恢复土地退化
  • 保护生态系统
  • 结合其他技术保护流域/下游区域
  • 保持/提高生物多样性
  • 降低灾害风险
  • 适应气候变化/极端天气及其影响
  • 减缓气候变化及其影响
  • 创造有益的经济影响
  • 创造有益的社会影响
土地利用

  • 牧场
    • 半游牧畜牧业
    动物类型: 山羊, 绵羊, cow
供水
  • 雨养
  • 混合雨水灌溉
  • 充分灌溉

土地退化相关的目的
  • 防止土地退化
  • 减少土地退化
  • 修复/恢复严重退化的土地
  • 适应土地退化
  • 不适用
解决的退化问题
SLM组
  • 畜牧业和牧场管理
  • Rotational grazing
SLM措施
  • 管理措施 -

技术图纸

技术规范

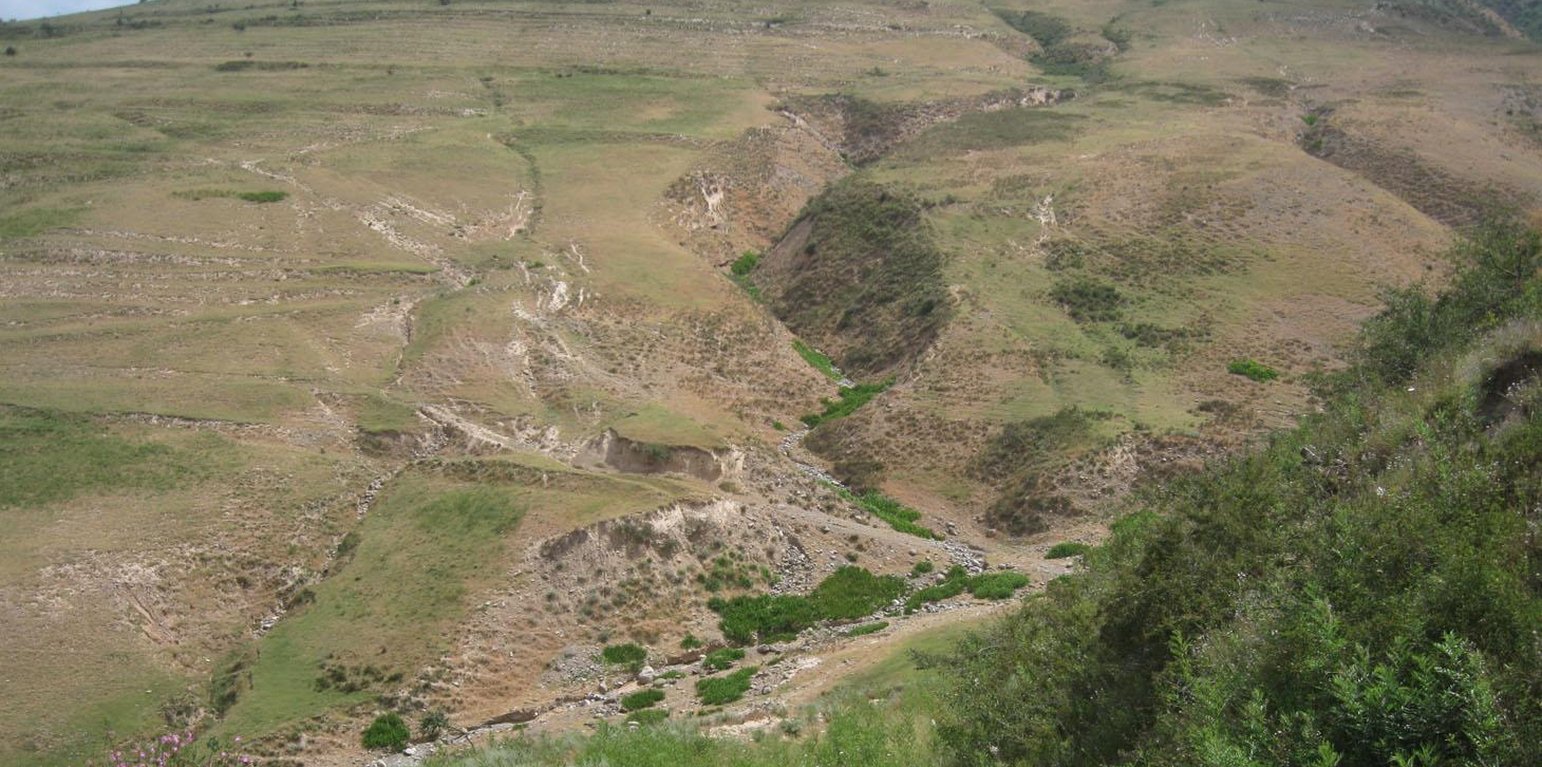

Bare vegetation cover, no trees, soil erosion, trampled paths, rill building, no waterpoints are all calling for pasture management among the villages.

Location: Above Sarmaydon village, Chukurak watershed. Muminabad, Khatlon, Tajikistan

Technical knowledge required for field staff / advisors: moderate (For managed and controlled grazing)

Technical knowledge required for land users: low

Technical knowledge required for Ingineers: high (Waterpoint installation)

Main technical functions: improvement of ground cover, increase of infiltration, water harvesting / increase water supply

Secondary technical functions: control of dispersed runoff: impede / retard, control of concentrated runoff: impede / retard, improvement of surface structure (crusting, sealing), improvement of topsoil structure (compaction), stabilisation of soil (eg by tree roots against land slides), increase in organic matter, increase in nutrient availability (supply, recycling,…), increase / maintain water stored in soil, sediment retention / trapping, sediment harvesting
Author: Malgorzata Conder

技术建立与维护:活动、投入和费用

投入和成本的计算
  • 计算的成本为:
  • 成本计算使用的货币:Somoni
  • 汇率(换算为美元):1 美元 = 4.83 Somoni
  • 雇用劳工的每日平均工资成本:5.00
影响成本的最重要因素
Rehabilitation labour (regarding structural measures for DDR for riverbed stabilisation or trees planting) is more cost intensive than preventive measures as pasture management.
技术建立活动
n.a.
技术维护活动
n.a.

自然环境

年平均降雨量
  • < 250毫米
  • 251-500毫米
  • 501-750毫米
  • 751-1,000毫米
  • 1,001-1,500毫米
  • 1,501-2,000毫米
  • 2,001-3,000毫米
  • 3,001-4,000毫米
  • > 4,000毫米
农业气候带
  • 潮湿的
  • 半湿润
  • 半干旱
  • 干旱
关于气候的规范
Totally 800 mm: 700mm in winter-spring, July-Sept dry season
Thermal climate class: temperate, LPG from end of March until September
斜坡
  • 水平(0-2%)
  • 缓降(3-5%)
  • 平缓(6-10%)
  • 滚坡(11-15%)
  • 崎岖(16-30%)
  • 陡峭(31-60%)
  • 非常陡峭(>60%)
地形
  • 高原/平原
  • 山脊
  • 山坡
  • 山地斜坡
  • 麓坡
  • 谷底
海拔
  • 0-100 m a.s.l.
  • 101-500 m a.s.l.
  • 501-1,000 m a.s.l.
  • 1,001-1,500 m a.s.l.
  • 1,501-2,000 m a.s.l.
  • 2,001-2,500 m a.s.l.
  • 2,501-3,000 m a.s.l.
  • 3,001-4,000 m a.s.l.
  • > 4,000 m a.s.l.
......应用的技术
  • 凸形情况
  • 凹陷情况
  • 不相关
土壤深度
  • 非常浅(0-20厘米)
  • 浅(21-50厘米)
  • 中等深度(51-80厘米)
  • 深(81-120厘米)
  • 非常深(> 120厘米)
土壤质地(表土)
  • 粗粒/轻(砂质)
  • 中粒(壤土、粉土)
  • 细粒/重质(粘土)
土壤质地(地表以下>20厘米)
  • 粗粒/轻(砂质)
  • 中粒(壤土、粉土)
  • 细粒/重质(粘土)
表土有机质含量
  • 高(>3%)
  • 中(1-3%)
  • 低(<1%)
地下水位
  • 表面上
  • < 5米
  • 5-50米
  • > 50米
地表水的可用性
  • 过量
  • 中等
  • 匮乏/没有
水质(未处理)
  • 良好饮用水
  • 不良饮用水(需要处理)
  • 仅供农业使用(灌溉)
  • 不可用
水质请参考:
盐度是个问题吗?

洪水发生
物种多样性
  • 中等
栖息地多样性
  • 中等

应用该技术的土地使用者的特征

市场定位
  • 生计(自给)
  • 混合(生计/商业)
  • 商业/市场
非农收入
  • 低于全部收入的10%
  • 收入的10-50%
  • > 收入的50%
相对财富水平
  • 非常贫瘠
  • 贫瘠
  • 平均水平
  • 丰富
  • 非常丰富
机械化水平
  • 手工作业
  • 畜力牵引
  • 机械化/电动
定栖或游牧
  • 定栖的
  • 半游牧的
  • 游牧的
个人或集体
  • 个人/家庭
  • 团体/社区
  • 合作社
  • 员工(公司、政府)
性别
  • 女人
  • 男人
年龄
  • 儿童
  • 青年人
  • 中年人
  • 老年人
每户使用面积
  • < 0.5 公顷
  • 0.5-1 公顷
  • 1-2 公顷
  • 2-5公顷
  • 5-15公顷
  • 15-50公顷
  • 50-100公顷
  • 100-500公顷
  • 500-1,000公顷
  • 1,000-10,000公顷
  • > 10,000公顷
规模
  • 小规模的
  • 中等规模的
  • 大规模的
土地所有权
  • 公司
  • 社区/村庄
  • 团体
  • 个人,未命名
  • 个人,有命名
土地使用权
  • 自由进入(无组织)
  • 社区(有组织)
  • 租赁
  • 个人
用水权
  • 自由进入(无组织)
  • 社区(有组织)
  • 租赁
  • 个人
进入服务和基础设施的通道
健康

贫瘠
x
教育

贫瘠
x
技术援助

贫瘠
x
就业(例如非农)

贫瘠
x
市场

贫瘠
x
能源

贫瘠
x
道路和交通

贫瘠
x
饮用水和卫生设施

贫瘠
x
金融服务

贫瘠
x

影响

社会经济影响
畜牧生产
降低
x
增加


less forage available for livestock due to reduce vegetation cover

木材生产
降低
x
增加


important clear-cutting in the past

土地管理
妨碍
x
简化


no organizational task without pasture management

家畜用水的可用性
降低
x
增加


lack of water points for livestock

家畜用水的质量
降低
x
增加


lack of water points for livestock

农业投入费用
增加
x
降低


more fodder has to be bought, because grazing is insufficient

农业收入
降低
x
增加


Less forage for livestock

工作量
增加
x
降低


no organizational task without pasture management

社会文化影响
食品安全/自给自足
减少
x
改良


More difficult to feed livestock

Improved livelihoods and human well-being
decreased
x
increased

生态影响
地表径流
增加
x
降低

地下水位/含水层
下降
x
补水

土壤水分
降低
x
增加

土壤覆盖层
减少
x
改良

土壤结壳/密封
增加
x
减少

土壤压实
增加
x
减少

土壤有机物/地下C
降低
x
增加

风速
增加
x
降低

场外影响
下游洪水(不希望)
增加
x
减少

缓冲/过滤能力(按土壤、植被、湿地划分)
减少
x
改良

对公共/私人基础设施的破坏
增加
x
减少

成本效益分析

与技术建立成本相比的效益
与技术维护成本相比的效益

气候变化

渐变气候
年温度 增加

非常不好
x
非常好
气候有关的极端情况(灾害)
局地暴雨

非常不好
x
非常好
干旱

非常不好
x
非常好
比较和缓的(河道)洪水

非常不好
x
非常好

采用和适应

采用该技术的地区内土地使用者的百分比
  • 单例/实验
  • 1-10%
  • 11-50%
  • > 50%
在所有采用这种技术的人当中,有多少人在没有获得物质奖励的情况下采用了这种技术?
  • 0-10%
  • 11-50%
  • 51-90%
  • 91-100%
最近是否对该技术进行了修改以适应不断变化的条件?
什么样的变化条件?
  • 气候变化/极端气候
  • 不断变化的市场
  • 劳动力可用性(例如,由于迁移)

结论和吸取的教训

长处: 土地使用者的观点
长处: 编制者或其他关键资源人员的观点
  • Establish rotational grazing, which would not be expensive and does not require further equipment except of organizational tasks.

    How can they be sustained / enhanced? Empower communication and decision-making between the farmers by regular meetings or round tables on community level
弱点/缺点/风险: 土地使用者的观点如何克服
弱点/缺点/风险: 编制者或其他关键资源人员的观点如何克服
  • Importance of rotational grazing depends on Jamoat and farmers level Strengthen communication between Jamoat and Farmer through consultancy, meetings etc. Farmers, as tenants, should also get a voice.
  • Pastureland rent is too cheap and it is not valued. There is no incentive to change, because nobody feels responsible for that area. Increase the rent and discuss communally where the money should be spent (e.g. for water points).
  • Pasture management does not show benefits immediately, which makes it difficult to evidence good management. Awareness raising and increasing knowledge of the short and long-term benefits.
  • Installation of water points is crucial, but very costly and hard work. Awareness rising and find alternatives of investing in livestock.
  • Livestock number should decrease, but it is socioeconomically very important and demands a lot of time to change this attitude.

参考文献

编制者
  • Malgorzata Conder
Editors
审查者
  • Fabian Ottiger
  • Alexandra Gavilano
实施日期: July 31, 2012
上次更新: Aug. 5, 2019
