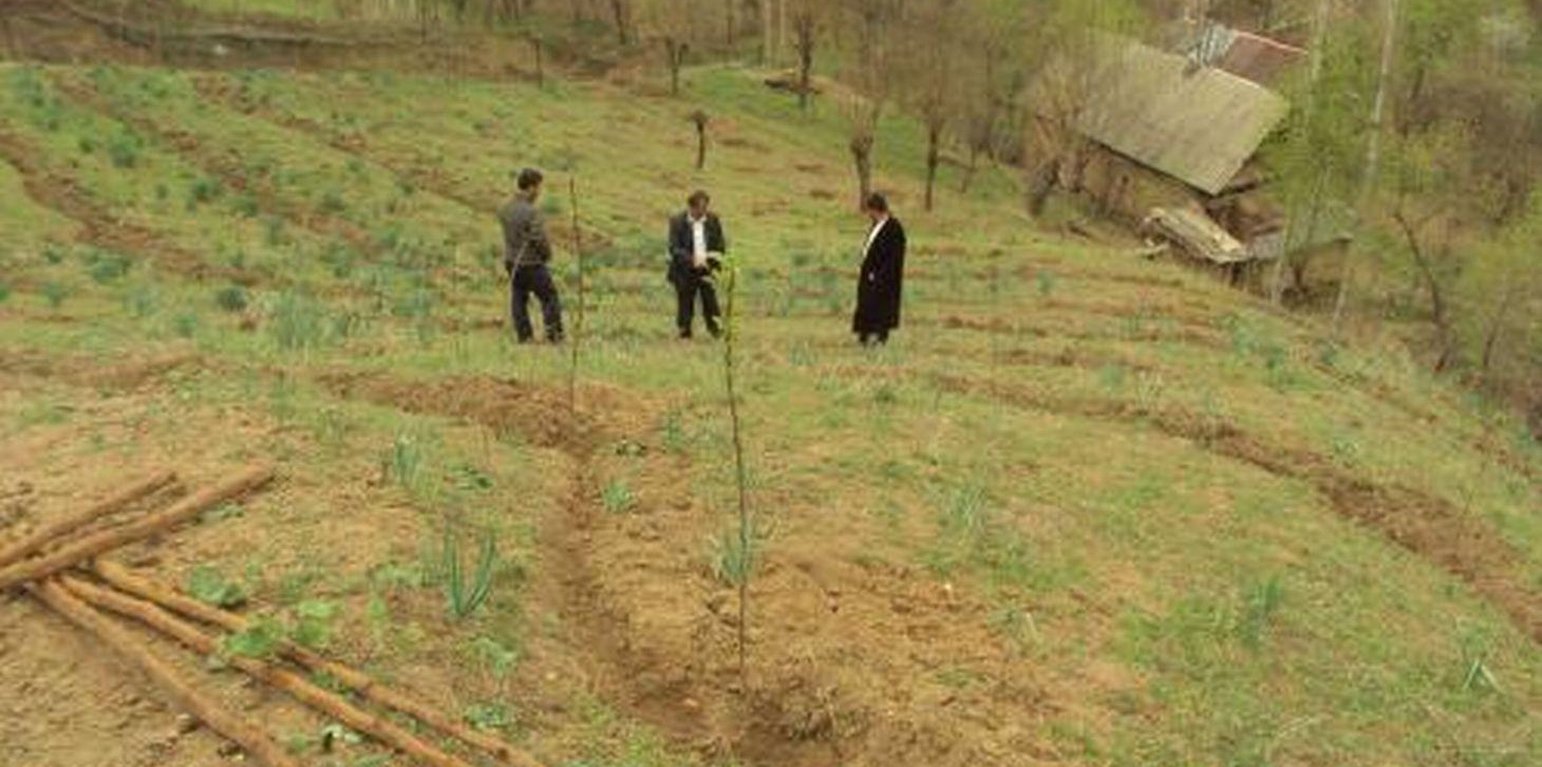

Planting of fruit trees on a steep slope above the village settlement. (S. Stevenson (CAMP Kuhiston))

Planting of fruit trees to increase slope stabilisation (塔吉克斯坦)

Табдил додани чарохгох ба бог

描述

Planting fruit tree orchards to increase the stability of the steep loess soil slopes.

This technology involved the planting of several varieties of native fruit trees to help stabilise steep loess mountain slopes. Seven species of fruit trees were planted in seven different locations, in two watersheds within the district of Nurobod in Tajikistan. The locations were chosen as a result of a natural disaster workshop that identified the areas most susceptible to landslides.

In consultation with the Institute of Horticulture a fruit tree planting scheme was devised and using project money the identified area was enclosed with a wire perimeter fence. The fruit trees were planted along irrigation contours running at shallow angles parallel to the slope.

Purpose of the Technology: The best locations for planting the fruit trees were decided on via a participatory community workshop on natural disaster risk management.
During the workshop the community identified areas around the village that were considered high risk. A fruit tree planting scheme was implemented in these areas to help stabilise the slopes, reduce surface water run off and top soil erosion, and reduce the risk of landslides. As the trees grew they were intercropped with wheat and espercet.

Establishment / maintenance activities and inputs: Several 'at risk' areas were identifed within these workshops, therefore the project team had to assess the areas for suitability. Two of the main criteria used included the access to water and if there was sufficient depth of top soil to sustain a fruit orchard.
Once the area was decided upon, a Memorandum of Understanding (MoU) was signed with the particular land user. It was made clear to the community that the land was chosen based upon the decisions from the workshop and not because of any form of favouritism towards the land user. The MoU stated that the land user was responsible for the planting and maintenance of the orchards.
The Horticultural Institute devised a planting a scheme based upon the loaction and soil type. The implementation activities occurred in early spring. A continuos wire fence was erected around the area, and the fruit trees were planted at five metre intervals along a dug contour irrigation ditch. One kilo of organic fertiliser was applied to each tree and later in the season they were sprayed with pesticides.

Natural / human environment: Nurobod district is a mountainous area, with large tributaries flowing into the Vasht river. There are mass erosion processes at work, causing gullies and washing away the top soil. The previous civil war, compounded by harsh winters resulted in extensive clearance of the surrounding vegetation for fuel. These areas have became further degraded by over grazing on the remaining grass lands.
The local population suffers from high levels of labour migration of young men to Russia and resulting in a drain of knowledge and able bodied workers. This leaves the remaining families particulary vulnerable in this specific climate.

地点

地点: Nurobod, Tajikistan, 塔吉克斯坦

分析的技术场所数量:

选定地点的地理参考
  • 69.8754, 38.5851

技术传播: 均匀地分布在一个区域 (approx. < 0.1 平方千米(10 公顷))

在永久保护区?:

实施日期: 不到10年前(最近)

介绍类型

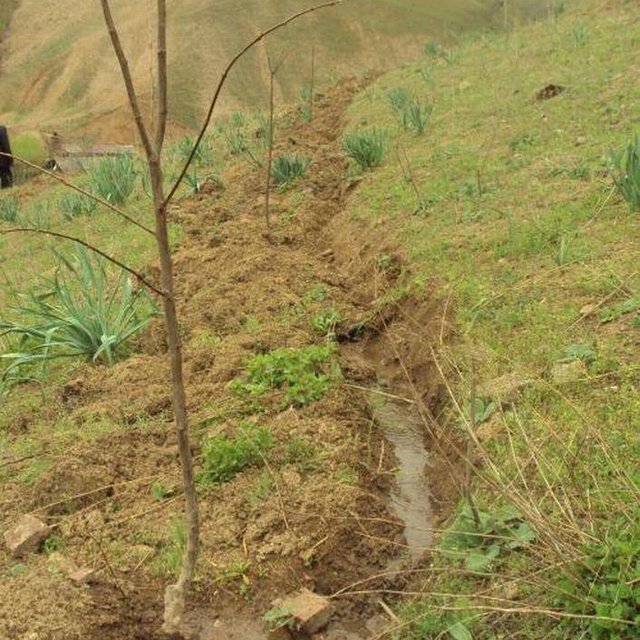

Planting of fruit tree with contour irrigation channels. (Shane Stevenson (CAMP Kuhiston))

技术分类

主要目的
  • 改良生产
  • 减少、预防、恢复土地退化
  • 保护生态系统
  • 结合其他技术保护流域/下游区域
  • 保持/提高生物多样性
  • 降低灾害风险
  • 适应气候变化/极端天气及其影响
  • 减缓气候变化及其影响
  • 创造有益的经济影响
  • 创造有益的社会影响
土地利用

  • 农田
    • 一年一作: 谷类 - 小麦(春季), espercet
    • 乔木与灌木的种植: 水果、其他, 核果(桃、杏、樱桃、李子等), 树坚果(巴西坚果、开心果、核桃、杏仁等), 仁果类(苹果、梨子、柑橘等)
    采用间作制度了吗?: 是
  • 牧场
    • 经营牧场
    动物类型: 山羊, 牛 - 奶制品, 绵羊, Livestock density (if relevant): 1-10 LU /km2

供水
  • 雨养
  • 混合雨水灌溉
  • 充分灌溉

土地退化相关的目的
  • 防止土地退化
  • 减少土地退化
  • 修复/恢复严重退化的土地
  • 适应土地退化
  • 不适用
解决的退化问题
  • 土壤水蚀 - Wt:表土流失/地表侵蚀 , Wg:冲沟侵蚀/沟蚀 , Wm:块体运动/滑坡
  • 生物性退化 - Bc:植被覆盖的减少
SLM组
  • 横坡措施
SLM措施
  • 植物措施 - V1:乔木和灌木覆盖层

技术图纸

技术规范

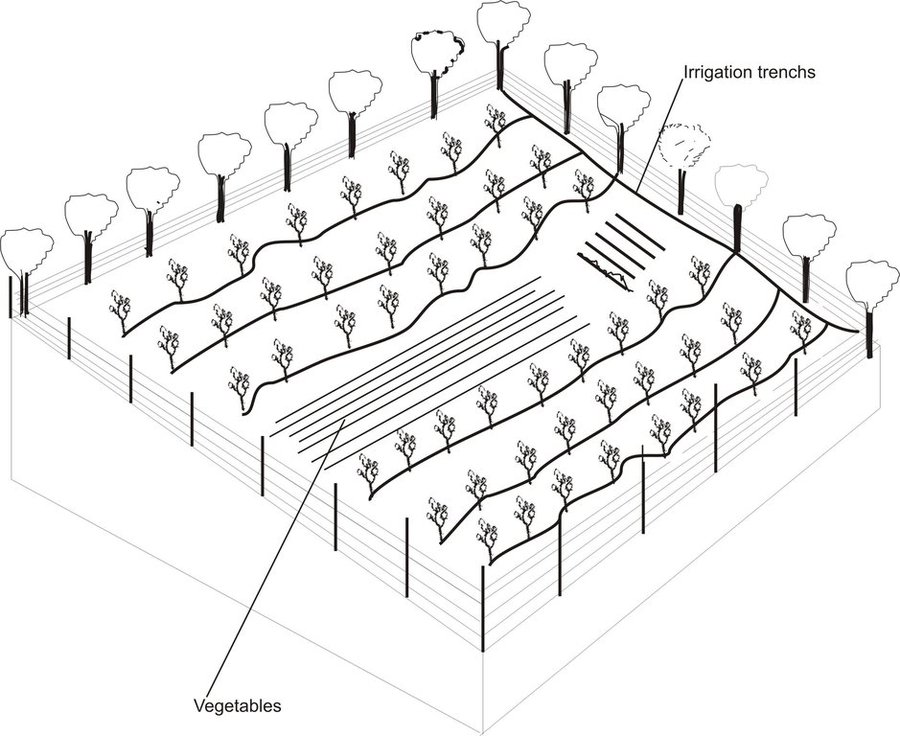

The drawing shows a perimeter fence enclosing terraces of fruit trees. The trees are irrigated through a contour trench running at a shallow angle perpendicular to the slope. The land users have taken the opportunity to optimise the cultivated land by planting perennial and wheat crops between the rows of trees.

Location: Mujiharf. Nurobod, tajikisatn

Date: 22nd June 2011

Technical knowledge required for field staff / advisors: low (The technology is relatively straight forward and easy to implement.)

Technical knowledge required for land users: low (The land user is responsible for the continued maintenance of the fruit trees.)

Main technical functions: improvement of ground cover

Secondary technical functions: control of dispersed runoff: retain / trap, control of dispersed runoff: impede / retard, spatial arrangement and diversification of land use

Aligned: -contour
Vegetative material: F : fruit trees / shrubs
Number of plants per (ha): 400
Vertical interval between rows / strips / blocks (m): 5
Spacing between rows / strips / blocks (m): 5
Vertical interval within rows / strips / blocks (m): 5
Width within rows / strips / blocks (m): 5

Fruit trees / shrubs species: Cherry, Apple, Quince, Pear, Plum, Peach, Walnut

Slope (which determines the spacing indicated above): 25.00%

Gradient along the rows / strips: 2.00%
Author: Pjotr M. Sosin, Camp Kuhiston, Dusahnbe

技术建立与维护:活动、投入和费用

投入和成本的计算
  • 计算的成本为:
  • 成本计算使用的货币:somoni
  • 汇率(换算为美元):1 美元 = 4.5 somoni
  • 雇用劳工的每日平均工资成本:25.00
影响成本的最重要因素
The main issue was the procurement of the fruit trees from a reliable credible source. Since the start of the project, land users purchased trees from local tree nurseries but the trees were of poor quality and some already had signs of disease. The scarity of natural resources, and the lack of controlled grazing means that wire fencing had to be used, This could only be purchased outside of the district and thus incurred high transport costs.
技术建立活动
  1. Erection of Fence (时间/频率: Spring - end of march)
  2. Planting of fruit trees. (时间/频率: March / April)
技术建立的投入和成本
对投入进行具体说明 单位 数量 单位成本 (somoni) 每项投入的总成本 (somoni) 土地使用者承担的成本%
劳动力
Building fence Persons/day 28.0 25.0 700.0 100.0
Planting fruit trees Persons/day 40.0 25.0 1000.0 100.0
设备
Tools Pieces 6.0 20.0 120.0
植物材料
Seedlimgs pieces 400.0 8.0 3200.0
肥料和杀菌剂
Compost/manure tons 1.0 225.0 225.0 100.0
1.0
施工材料
Metal fence and posts meter 400.0 12.0 4800.0
技术建立所需总成本 10'045.0
技术建立总成本,美元 2'232.22
技术维护活动
  1. pruning and tree care (时间/频率: Annually)
技术维护的投入和成本
对投入进行具体说明 单位 数量 单位成本 (somoni) 每项投入的总成本 (somoni) 土地使用者承担的成本%
劳动力
Prunning and tree care Persons/day 15.0 16.6666667 250.0 100.0
技术维护所需总成本 250.0
技术维护总成本,美元 55.56

自然环境

年平均降雨量
  • < 250毫米
  • 251-500毫米
  • 501-750毫米
  • 751-1,000毫米
  • 1,001-1,500毫米
  • 1,501-2,000毫米
  • 2,001-3,000毫米
  • 3,001-4,000毫米
  • > 4,000毫米
农业气候带
  • 潮湿的
  • 半湿润
  • 半干旱
  • 干旱
关于气候的规范
Thermal climate class: temperate
斜坡
  • 水平(0-2%)
  • 缓降(3-5%)
  • 平缓(6-10%)
  • 滚坡(11-15%)
  • 崎岖(16-30%)
  • 陡峭(31-60%)
  • 非常陡峭(>60%)
地形
  • 高原/平原
  • 山脊
  • 山坡
  • 山地斜坡
  • 麓坡
  • 谷底
海拔
  • 0-100 m a.s.l.
  • 101-500 m a.s.l.
  • 501-1,000 m a.s.l.
  • 1,001-1,500 m a.s.l.
  • 1,501-2,000 m a.s.l.
  • 2,001-2,500 m a.s.l.
  • 2,501-3,000 m a.s.l.
  • 3,001-4,000 m a.s.l.
  • > 4,000 m a.s.l.
......应用的技术
  • 凸形情况
  • 凹陷情况
  • 不相关
土壤深度
  • 非常浅(0-20厘米)
  • 浅(21-50厘米)
  • 中等深度(51-80厘米)
  • 深(81-120厘米)
  • 非常深(> 120厘米)
土壤质地(表土)
  • 粗粒/轻(砂质)
  • 中粒(壤土、粉土)
  • 细粒/重质(粘土)
土壤质地(地表以下>20厘米)
  • 粗粒/轻(砂质)
  • 中粒(壤土、粉土)
  • 细粒/重质(粘土)
表土有机质含量
  • 高(>3%)
  • 中(1-3%)
  • 低(<1%)
地下水位
  • 表面上
  • < 5米
  • 5-50米
  • > 50米
地表水的可用性
  • 过量
  • 中等
  • 匮乏/没有
水质(未处理)
  • 良好饮用水
  • 不良饮用水(需要处理)
  • 仅供农业使用(灌溉)
  • 不可用
水质请参考:
盐度是个问题吗?

洪水发生
物种多样性
  • 中等
栖息地多样性
  • 中等

应用该技术的土地使用者的特征

市场定位
  • 生计(自给)
  • 混合(生计/商业)
  • 商业/市场
非农收入
  • 低于全部收入的10%
  • 收入的10-50%
  • > 收入的50%
相对财富水平
  • 非常贫瘠
  • 贫瘠
  • 平均水平
  • 丰富
  • 非常丰富
机械化水平
  • 手工作业
  • 畜力牵引
  • 机械化/电动
定栖或游牧
  • 定栖的
  • 半游牧的
  • 游牧的
个人或集体
  • 个人/家庭
  • 团体/社区
  • 合作社
  • 员工(公司、政府)
性别
  • 女人
  • 男人
年龄
  • 儿童
  • 青年人
  • 中年人
  • 老年人
每户使用面积
  • < 0.5 公顷
  • 0.5-1 公顷
  • 1-2 公顷
  • 2-5公顷
  • 5-15公顷
  • 15-50公顷
  • 50-100公顷
  • 100-500公顷
  • 500-1,000公顷
  • 1,000-10,000公顷
  • > 10,000公顷
规模
  • 小规模的
  • 中等规模的
  • 大规模的
土地所有权
  • 公司
  • 社区/村庄
  • 团体
  • 个人,未命名
  • 个人,有命名
土地使用权
  • 自由进入(无组织)
  • 社区(有组织)
  • 租赁
  • 个人
用水权
  • 自由进入(无组织)
  • 社区(有组织)
  • 租赁
  • 个人
进入服务和基础设施的通道
健康

贫瘠
教育

贫瘠
技术援助

贫瘠
就业(例如非农)

贫瘠
市场

贫瘠
能源

贫瘠
道路和交通

贫瘠
饮用水和卫生设施

贫瘠
金融服务

贫瘠

影响

社会经济影响
木材生产
降低
增加


400 trees planted

产品多样性
降低
增加


new products to sell

农业收入
降低
增加


seven varieties of fruits

收入来源的多样性
降低
增加


new source of sustainable income

New skills in fruit tree cultivation
reduced
improved


The implementation of the technology is supported with training.

社会文化影响
食品安全/自给自足
减少
改良


increased fruit production

健康状况
恶化
改良

SLM/土地退化知识
减少
改良

Community knowledge of fruit tree cultivation
reduced
improved


training provided

Livelihood and human well-being
None
None


Training on fruit tree cultivation was provided for the community in conjunction with the implementation of the planting of the trees, to help improve the fruit yields in the community and the health of the trees.

生态影响
地表径流
增加
降低


trees absorb the water

养分循环/补给
降低
增加


regeneration of the biomass cycle

有益物种(捕食者、蚯蚓、传粉者)
降低
增加


introduced new species to the area.

滑坡/泥石流
增加
降低


main goal of the SLM technology

场外影响

成本效益分析

与技术建立成本相比的效益
短期回报
非常消极
非常积极

长期回报
非常消极
非常积极

与技术维护成本相比的效益
短期回报
非常消极
非常积极

长期回报
非常消极
非常积极

It can take 3-12 years before the fruits can be harvested, depending upon the variety. The trees will require more care and attention in the first few years to ensure their long term survival.

气候变化

渐变气候
年温度 增加

非常不好
非常好
气候有关的极端情况(灾害)
局地暴雨

非常不好
非常好
干旱

非常不好
非常好
其他气候相关的后果
increase in pests

非常不好
非常好

采用和适应

采用该技术的地区内土地使用者的百分比
  • 单例/实验
  • 1-10%
  • 11-50%
  • > 50%
在所有采用这种技术的人当中,有多少人在没有获得物质奖励的情况下采用了这种技术?
  • 0-10%
  • 11-50%
  • 51-90%
  • 91-100%
户数和/或覆盖面积
7 households in an area of 10 ha
最近是否对该技术进行了修改以适应不断变化的条件?
什么样的变化条件?
  • 气候变化/极端气候
  • 不断变化的市场
  • 劳动力可用性(例如,由于迁移)

结论和吸取的教训

长处: 土地使用者的观点
  • It has made efficient use of the land that was previously used for grazing of livestock.
  • I have planted espercet in within the fence line, to improve my fodder production.
  • I learnt how to care for the trees in the training provided.

    How can they be sustained / enhanced? Further ongoing professional support for the land user would be beneficial.
长处: 编制者或其他关键资源人员的观点
  • It helped stabilise the soil and reduce the risk of mudslides.

    How can they be sustained / enhanced? Other identified areas could be planted with trees.
  • It helped to reduce the rates of surface water top soil erosion.

    How can they be sustained / enhanced? The area of land could be extended.
  • The fencing helped protect the technology from grazing livestock.

    How can they be sustained / enhanced? The fruit trees within the fence can be intercropped with perennial grasses or other crops.
  • It provides long term food and potential income for the land user.
弱点/缺点/风险: 土地使用者的观点如何克服
  • There are tree diseases in the district, which may spread to the fruit trees and many locals cannot afford the pesticides required to help prevent these. Pesticides could be provided by larger farms or cooperatives could be set up.
  • The livestock broke through the fence and ate some of the saplings. In some instances double fencing may be requried.
弱点/缺点/风险: 编制者或其他关键资源人员的观点如何克服
  • The areas identified to be stabilised do not always have access to water and therefore the technology is limited. Piped irrigation and drip irrigation techniques could be applied.
  • The land owner does not have any returns on the intial investment for a minimum of three years. Also they will have to pay tax on the land after three years. Some trees will not produce fruits for up to 12yrs. Loans or subsidies could be provided to the land user over this initial period of time.

参考文献

编制者
  • Gulniso Nekushoeva
Editors
审查者
  • David Streiff
  • Alexandra Gavilano
  • Joana Eichenberger
实施日期: March 16, 2011
上次更新: Nov. 2, 2021
资源人
WOCAT数据库中的完整描述
链接的SLM数据
文件编制者
机构 项目
This work is licensed under Creative Commons Attribution-NonCommercial-ShareaAlike 4.0 International
